Add fortigate in fortiganalyzer

  • August 23, 2022
  • 1 reply
  • 2038 views

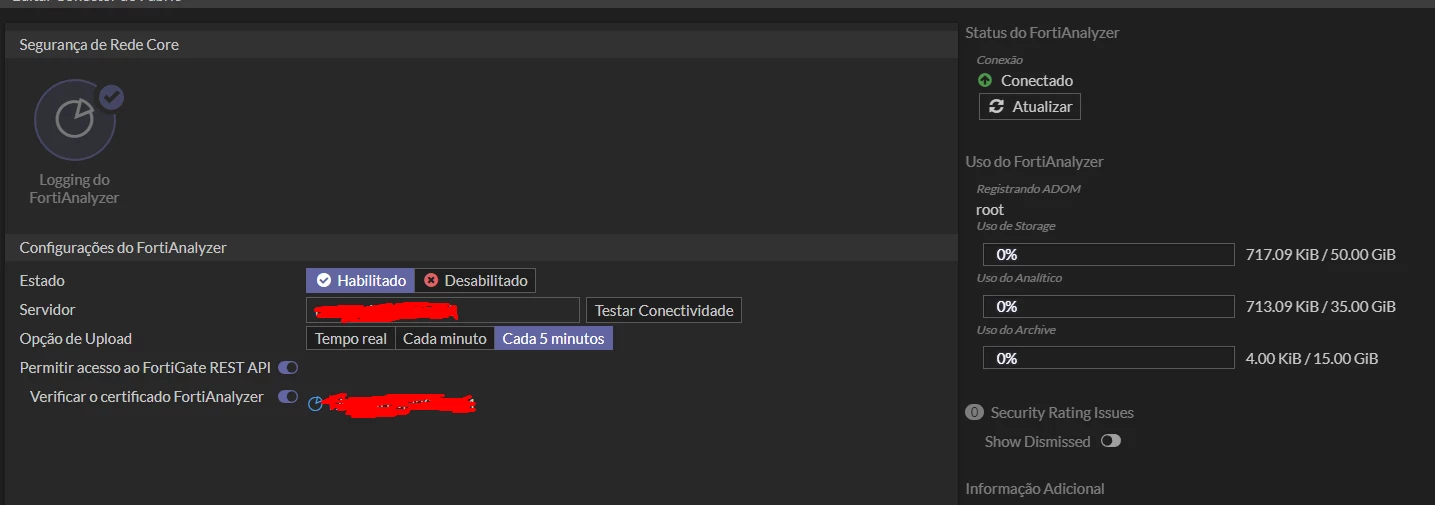

I added my fortigate in fortianalyzer and the logs do not arrive, in fortigate the status appears as connected, but in fortianalyzer the logs are not received.





I'm using the demo version of fortianalyzer and I'm connecting a fortigate 60E firmware 7.2.0

I believe it is a configuration error, since this is the first time I perform this procedure.







1 reply

kcheng
Staff & Editor
Staff & Editor
August 24, 2022

Hi @ruzeski



You may want to check with the following document:

https://community.fortinet.com/t5/FortiAnalyzer/Troubleshooting-Tip-FortiGate-to-FortiAnalyzer-connectivity/ta-p/191833



On the FortiGate, if you run the command "exec log fortianalyzer test-connectivity" and noticed Log: Tx & Rx (log not received), you will need to set reliable to enable. The command to enable reliable is as below:

config log fortianalyzer setting

set reliable enable

end

yeowkm99
New Member
August 24, 2022

managed to solve the issue.
