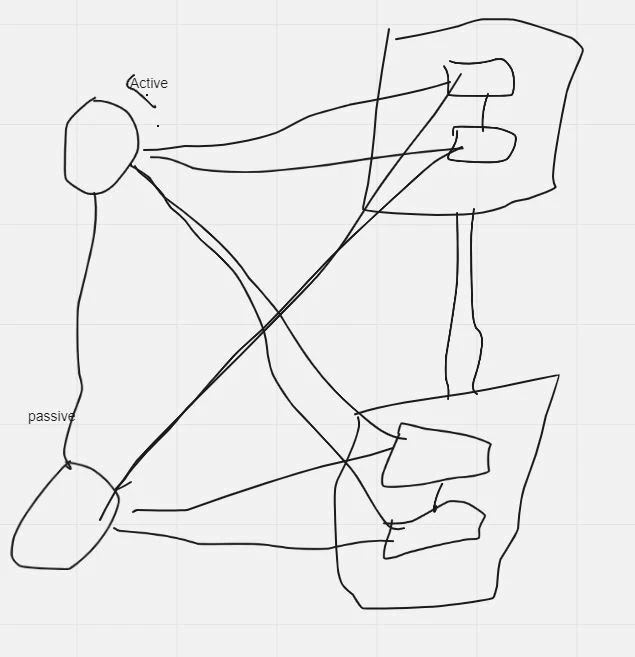

Hi, I have two different sites, but I have only  two firewalls, so want to deploy active-standby,

if site b internet traffic has to go through site b active fw , if site a fw fails ,site b fw should be active and all internet traffic has to go through the site b



How can I do this

What are the pros and cons

Thanks







3 replies

mricardez
Staff
mricardez
Staff
March 11, 2022

Hi



The following topology with fortiswitch could be help "HA-mode FortiGate units in different sites"



https://docs.fortinet.com/document/fortiswitch/7.0.4/devices-managed-by-fortios/780635/switch-redundancy-with-mclag#HA-mode3




Regards

ede_pfau
SuperUser
ede_pfau
SuperUser
March 13, 2022

Deploying a FGT cluster a-p in 2 different locations will work.

- there needs to be a L2 connection between the FGTs

- the HA protocol uses non-standard ethertypes on the HA link, so all active devices inbetween should be able to cope with that (Nexus don't)

- depending on the line characteristics, you might have to tweak the timeout settings on the HA link

- lo and behold if that metro/long range HA connection experiences packet loss or even interruptions! Best practice demands at least 2 independent HA links, which might be difficult to provide.

- we encountered an obstacle with the WAN address of the active FGT. When failing over, the WAN address should switch as well, just to keep the (numerous) VPNs running. At that time, we solved that with having the ISP configuring it's routers in VRRP to have the WAN IP reassigned to the other location. Problem was, the FGT failed over in 1 s, the routers in 10 mins.

Today I would rather have duplicate (backup) VPNs to achieve the same redundancy. But there were other services tied to the WAN address, so this might be a point you should consider.

    sims
    simsAuthor
    Explorer II
    March 14, 2022

    Hi @ede_pfau

    Between  Site A and Site B is layer 3 . But I can provide l2 for ha between active and passive . Site A  the subnet is 192.168.1.0/24 and site B 192.168.2.0/24 .

    Could you help me  to decide what ip address I have to give to firewall's

    Thanks



    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    March 14, 2022

    The HA link will use DHCP addresses from the APIPA range (169.254.), you don't have to take care of that. Other subnets depend on your needs.



    Sometimes I use the loopback interface for mgmt, as it doesn't depend on a link status (Network - Create New - Loopback). It can be specified as the cluster member management interface so one can manage both HA units independently.



    And never, never, do I use the ranges 192.168.1. or 192.168.2. These are default address ranges, so someone could bring in a device from the supermarket, plug it in and make it part of the network. What's wrong with 10.19.1. or 172.22.1.?
