Accessing internal server by it's public VIP?

Forum|Forum|11 years ago
November 17, 2014
7 replies
32828 views

Hi guys,

I've done a search and come across a few answers but wonder if anything has changed in the later versions of FortiOS to make this simpler.

Suppose we have two servers on the internal-side of a Fortigate (in some cases on the same interface, in some cases on a different interface (VLAN)). They can communicate with each other using their own internal IP addresses, but how to we allow them communicate using their public/external IP addresses? We are using StaticNAT VIPs to assign these external addresses.

On some other firewalls you have a feature (sometimes called NAT Loopback) that allows servers like the ones above communicate using their assigned external addresses, I guess the routing engine of the fw recognises the external address as the Desintation on packets so runs them through the NAT processor. Is there any way of doing this on the Fortigate without using a Policy Route (which would not suit in our case due to the large number of external IPs going to various different VLANs)?

Thanks!

drak

New Member

You should look into this: http://kb.fortinet.com/kb/documentLink.do?externalID=FD33976 (Technical Note : How internal users can access internal resources via an external VIP (public IP address)).

The main gotcha is using the external interface as 'any'.

ZenithAuthor

New Member

Ah yes, simple as that, thanks! Not sure how I managed to miss that article!

enrico_denora

New Member

I have a Fortigate 40C and I need the possibility to access internal server using the public IP from the internal LAN.

Example: our commercial people when connecting from outside use the public IP to access IMAP mail. When they come in the office and are connected to the internal LAN nothing is workin.

How can I manage a NAT loopback? thank you very much

Dave_Hall

New Member

enrico.denora wrote:
I have a Fortigate 40C and I need the possibility to access internal server using the public IP from the internal LAN.

Example: our commercial people when connecting from outside use the public IP to access IMAP mail. When they come in the office and are connected to the internal LAN nothing is workin.

How can I manage a NAT loopback? thank you very much

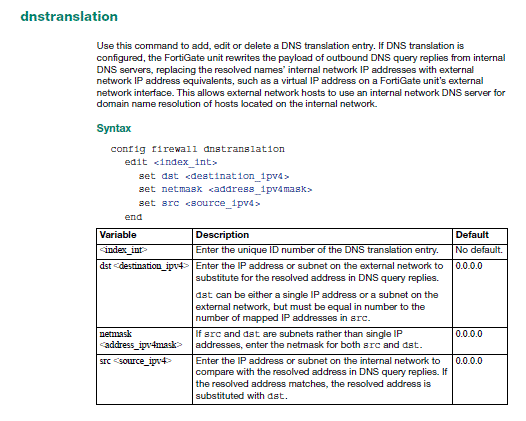

An alternate solution [strike]to VIP and/or NAT[/strike] would be to set up the server(s) to be accessible by FQDN (resolvable by DNS) then setup DNS translation on the inside. See KB #FD34099 for a sample setup.


ZenithAuthor

New Member

Enrico I'd agree with Dave, for a case like that you'd probably be better off with split-DNS assuming you control the DNS server these users use when they are in the office. This isn't an option for our case due to there being a large number of servers and us not controlling the DNS server...

Paul_Dean

Visitor III

Agreed. We used to use the DNS Database feature on the smaller FortiGates until it was removed. The DNS Translation feature is a useful alternative for you.
