Access to the fortigate interface and kibana interface of elk server without internet?

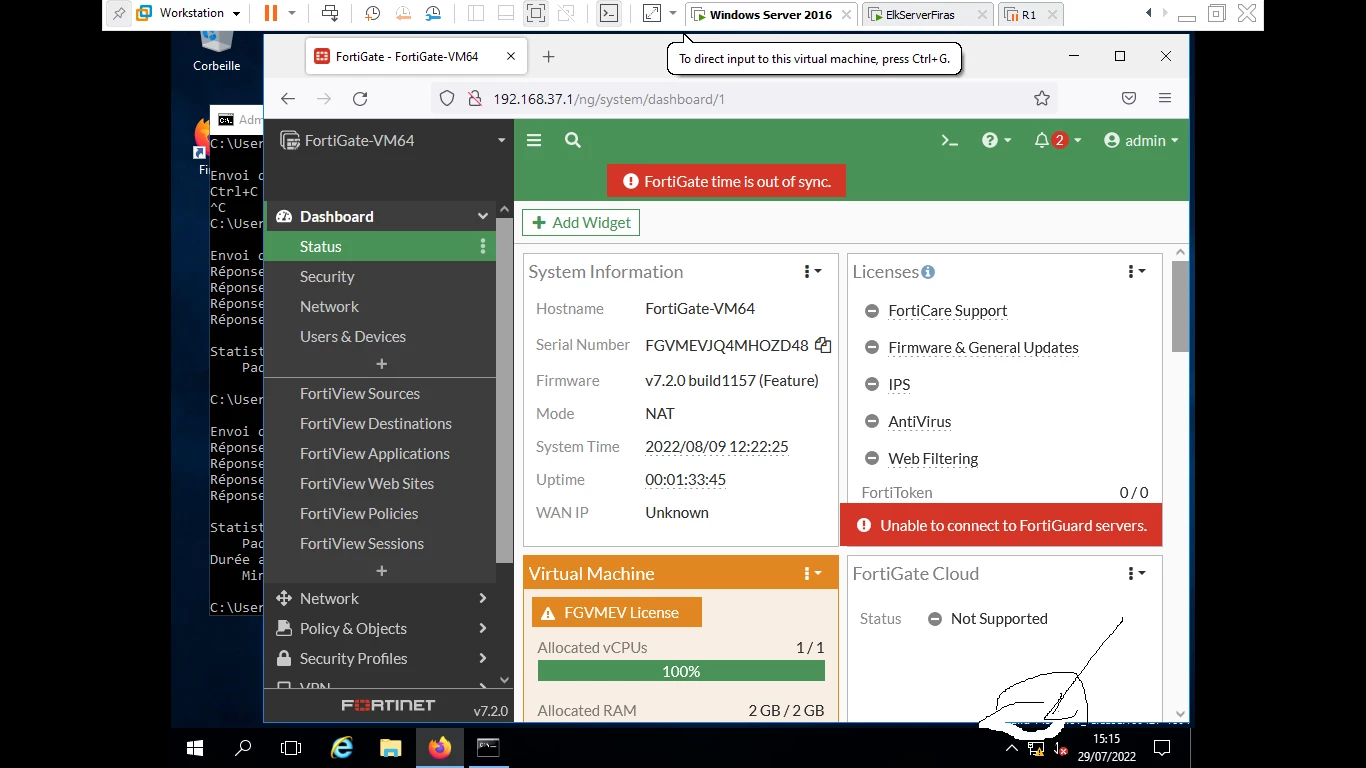

in the screen my topology I configure the elk server and windows server 16 in the same network and I try from win server 16 to access the FortiGate interface and kibana of elk I can but the internet is not working I don't know why. it's HTTP
