60F IPSec site to site AWS NAT no ping

Hi robert44,

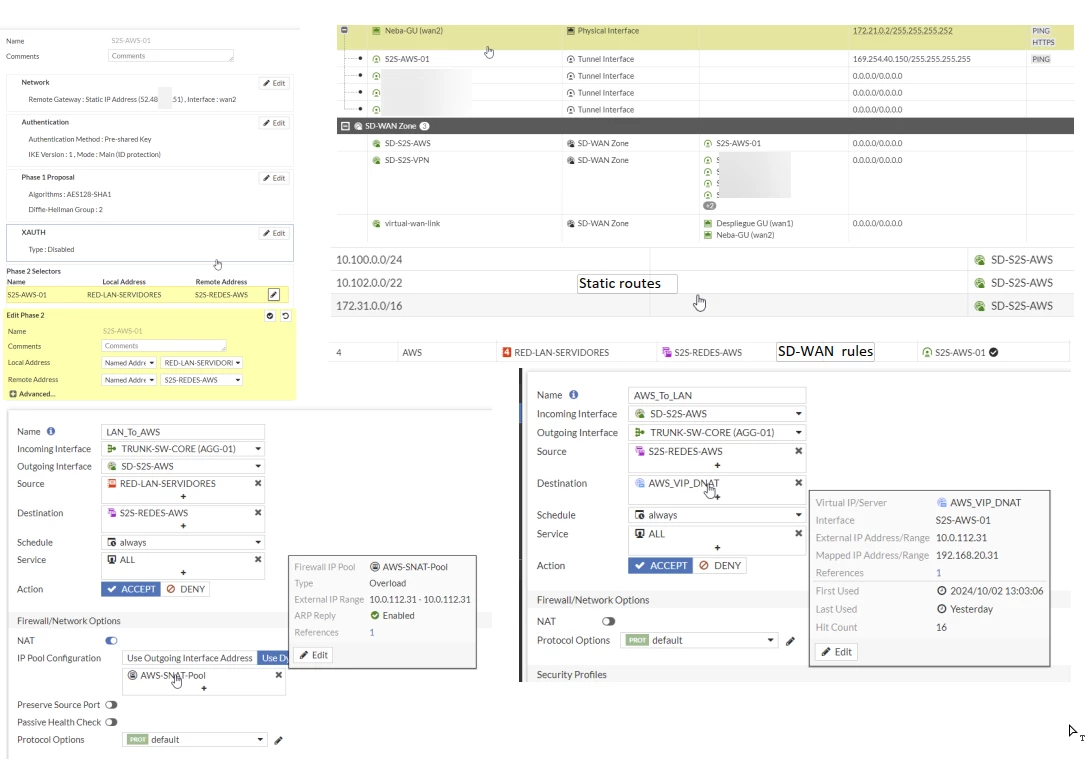

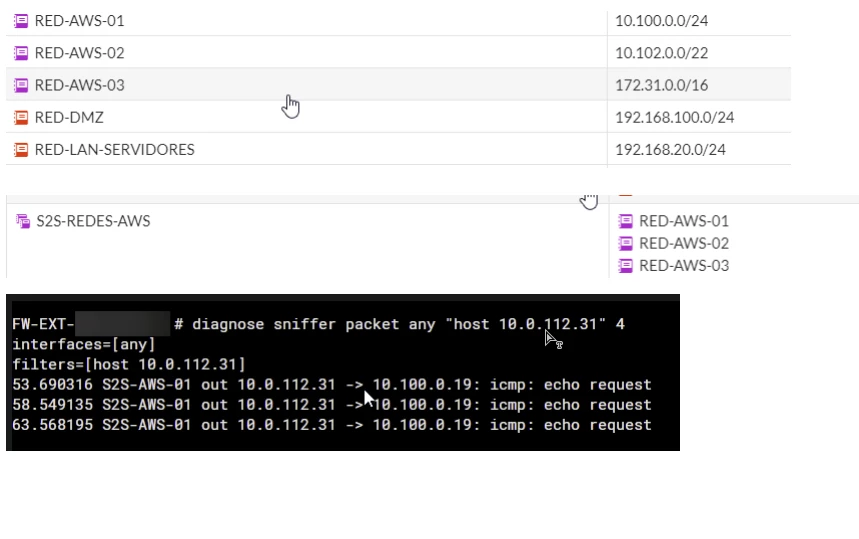

Thank you for reaching out. I believe the issue here is about phase2 selectors missing the ippool external ip as local address on the fortigate side and would be a remote on the AWS server. This is because you are natting the traffic on the outgoing firewall policy and I see the ping is stopping at the ipsec tunnel. You can further confirm this with running the following debug then start the ping again:
di de flow filter addr 10.100.0.19

di de flow filter proto 1
di de flow show function enable

di de flow trace start 10

di de console time en

di de en

Thank you,

saleha
