40F ipsec VPN internet access through VPN tunnel, issue.

  • May 13, 2022
  • 5 replies
  • 13114 views

Hi:

I have a Fortigate 40F setup in office  with its WAN conencted to the interent on a public IP  , LAN connect to office LAN network 10.61.x.x network



I and followed this guide,



https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-establish-VPN-connection-between-Windows-10/ta-p/200001



I created a VPN: dialup - Windows (Native L2TP/IPsec) using VPN wizard， which the connection is working on my laptop from home.

I am able to ping LAN devices in office, however, there is no internet .

I would like access internet thru office LAN network via the ipsec tunnel, is that possible ?

Thanks
Best answer by seshuganesh

Hi Team,



In that case you need to point your default route towards interface which is connected to juniper firewall.

So the traffic will be forwarded towards juniper firewall and that firewall can provide access.
Does juniper firewall connected to LAN interface of FG firewall?



5 replies

sw2090
SuperUser
sw2090
SuperUser
May 13, 2022

Yes it is possible. You already achieved one part I gues as you have established the vpn and you now have no internet. That tells me you do not use split tunneling so your client's default route was rewritten and the traffic goes thru office lan already.

You now have to have a policy at the remote end FGT that allows you to access the internet coming from your vpn.

    aionescu
    Staff
    aionescu
    Staff
    May 13, 2022

    Hi @Jimmy_Intertouch



    If I understood correctly, the topology would be the following:

    PC---Tunnel(L2TP)---FortiGate40F----Tunnel----HQ---Internet.

    Now, you are able to successfully connect to the 40F and access resources from the HQ but there is no Internet access. If my understanding is correct, on the HQ firewall, assuming is also a FortiGate, you would need to create a firewall policy that has as source interface the IPsec tunnel interface with 40F and destination interface the Internet facing one.  You have to enable NAT on this policy.

      seshuganesh
      Staff
      seshuganesh
      Staff
      May 13, 2022

      Hi Team,

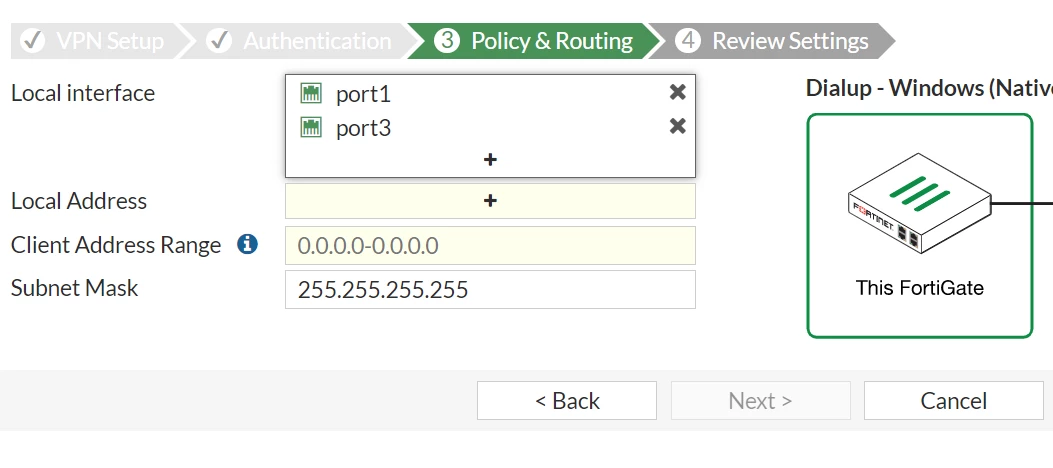

      Please look into the screenshot:


      Under local interface can you select both wan and lan interfaces and local address to "all" object

      Then create firewall policy for IPSEC VPN to LAN and IPSEC VPN to WAN (NAT should be enabled in this policy)

      Then test the traffic

      Please check and keep us posted

        Jimmy_Intertouch
        Jimmy_IntertouchAuthor
        Explorer II
        May 13, 2022

        hi Thanks all



        This one got the interent working ,Amazing! , but from tracert i can see my pc is getting the internet from the FG40F's WAN



        Ideally, I want the all routes to go via FG40F's LAN interface, which connects to Juniper firewall in the office I have no control of , i guess I would need to configure that Juniper to achieve this  ?



        Thanks again

        seshuganesh
        Staff
        seshuganeshAnswer
        Staff
        May 13, 2022

        Hi Team,



        In that case you need to point your default route towards interface which is connected to juniper firewall.

        So the traffic will be forwarded towards juniper firewall and that firewall can provide access.
        Does juniper firewall connected to LAN interface of FG firewall?



          sw2090
          SuperUser
          sw2090
          SuperUser
          May 13, 2022

          on vpn client the vpn sets your defaul route if you have no split tunneling on the vpn.

          on Fgt it is the first one on your screnshot.

          if you set that to the Juniper fw as gateway ip all internet trafic cominig fro your FGT will go to the Juniper. That'd probably be the easiest way but I am not sure if you really want that.

            Jimmy_Intertouch
            Jimmy_IntertouchAuthor
            Explorer II
            May 13, 2022

            Thanks , I will try fiddle with it : )

            Jimmy_Intertouch
            Jimmy_IntertouchAuthor
            Explorer II
            May 13, 2022

            hi All, thanks all for making this work



            It's all working now after adding the static route for the LAN interface with higher priority than WAN route.



            It feels wonderful !  :D
