Troubleshooting Tip: OCSP stapling is not working

Description

This article describes how to troubleshoot OCSP Stapling in FortiWeb.

Scope

FortiWeb.

Solution

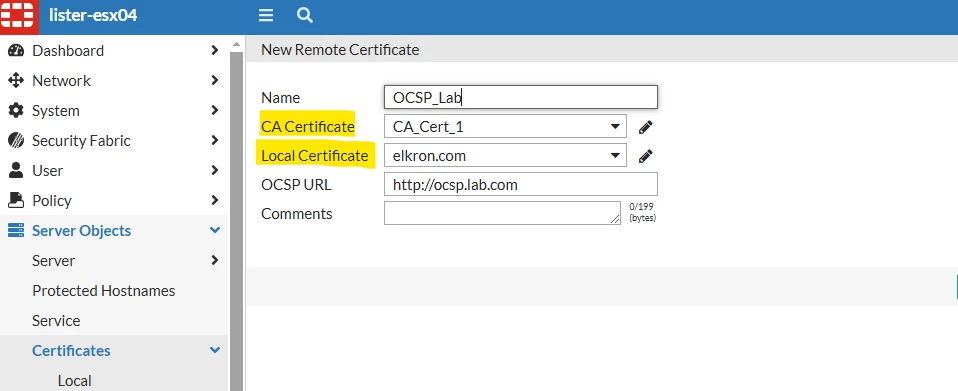

1. Make sure to select the right local certificate and CA certificate of OCSP server/responder at Server Objects -> Certificates -> OCSP Stapling:





    

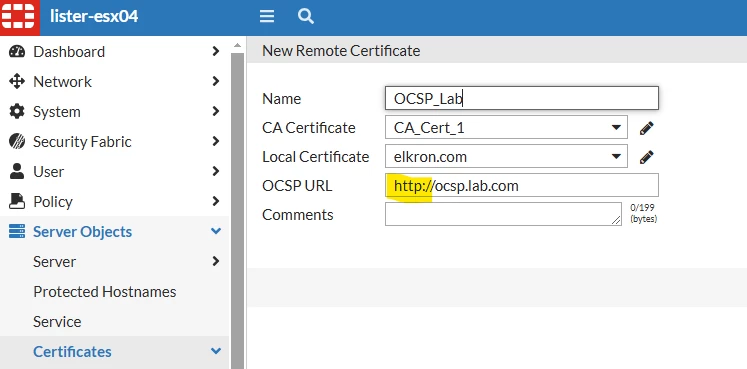

2. The OCSP URL must contain either [http:// OR https://] at Server Objects -> Certificates -> OCSP Stapling:

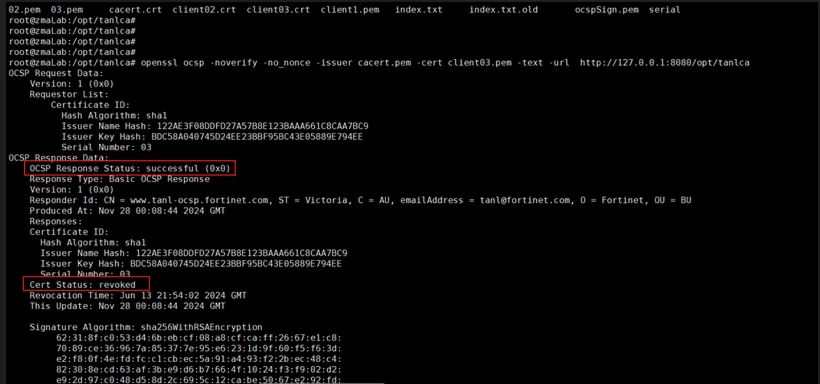

3. Use the openssl command to verify if the OCSP server working properly:

openssl ocsp -noverify -no_nonce -issuer cacert.pem -cert client03.pem -text -url  http://127.0.0.1:8080/opt/tanlca

Note 1:

cacert.pem is the ocsp CA certificate.

Note 2:

client03.pem is the test certificate. to check if it has been revoked.

Note 3:

The above sample uses 3 parameters that match FortiWeb configuration, and FortiWeb actually uses this command on the backend to call openssl to verify/test OCSP stapling, then return the result to the frontend.
