Troubleshooting Tip: If FortiWeb is sending old Certificate to the client, even though server policy is updated with new Certificate

This can happen in case the Policy changes were not loaded properly.

Note:

Perform these steps in off-hours, as it can impact production.

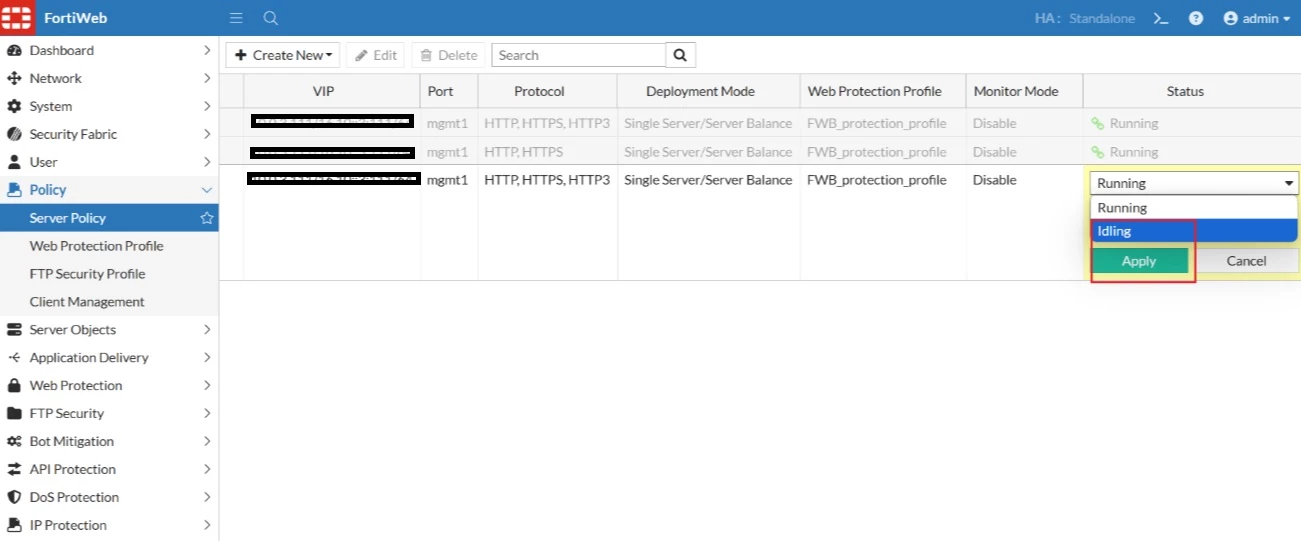

1. Try to reload the policy by turning the status to idling, applying changes, changing to running again, and then applying.

2. Restart the Proxyd process. Get the proxyd PID by :

diagnose sys top | grep proxyd

24137 1 root S 2702m 27.4 0 31.1 /bin/proxyd

After getting the proxyd PID, use the following command to kill the process :

diagnose sys kill 11 <PID proxyd>

If there are multiple PIDs of proxyd, use the following command:

diagnose sys killall 11 proxyd

If the above 2 steps do not resolve the issue,  collect data by running below commands:

diagnose debug proxy log 7

diagnose debug proxy cmdb-global 7

diagnose debug proxy cmdb-policy 7

diagnose debug proxy config-policy 7

diagnose debug proxy config-global 7

diagnose debug proxy thread-reload 7

diagnose debug proxy thread-work 7

diagnose debug enable

At the same time, capture packets on the FortiWeb as well for the particular client IP, server IP: Packet capture via Web UI

Use this information and contact Fortinet Support, so further analysis of logs can be done.

Related article:
Technical Tip: How to restart process or daemon on FortiWeb using CLI
