Troubleshooting Tip: Connection is getting reset when PKI is being used due to cache size

  • September 27, 2024
  • 0 replies
  • 353 views
Description This article describes how to identify if a connection is getting reset because of PKI 'Max HTTP Request Length' and how to resolve it. While using PKI URL Based Client Certificate under Server Policy -> Policy -> Advanced SSL Settings, If the incoming connection has a parameter size that exceeds the configured value at [Max HTTP Request Length] the connection will be reset.
Scope FortiWeb.
Solution
  1. How to identify if the connection is being blocked because of PKI URL the client Certificate 'max http request length'.
  • Debug the connection using the following commands:



diag debug reset
diag deb timestamp enable
diag debug flow filter http-detail 7
diag deb flow filter flow-detail 7
diag debug flow filter client-ip <client IP>
diag debug flow filter server-ip <VIP>
diag debug flow trace start
diag deb info
diag debug enable



  • In the debug outputs the following errors will be found:



<12:01:22>[work 2][flow] ssn 11310884 policy LabPolicy strm 0 dir 0 subclient 0 cache size 32864 exceed configured size 32768, deny
<12:01:22>[work 2][flow] ssn 11310884 policy LabPolicy strm 0 dir 0 subclient 0 error happend, deny

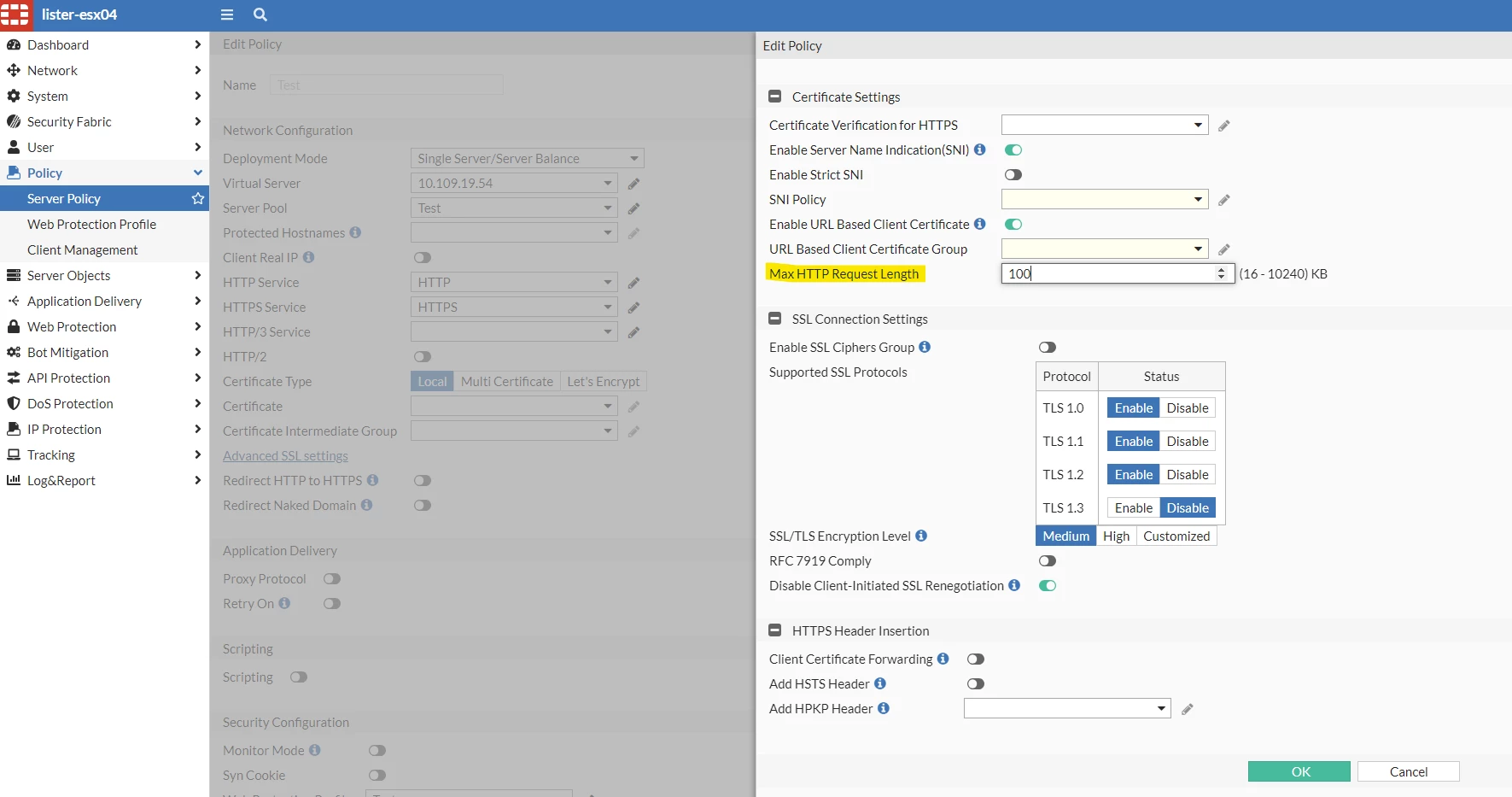

  1. How to fix the issue: In the GUI, navigate to Server Policy -> Policy, select the related Policy -> Advanced SSL Settings -> Max HTTP Request Length (adjust its value according to the size in the debug output).



Screenshot 2024-09-27 104829.png
