Technical Tip: How to forward multiple ports with FortiWeb

Description

This article describes how to forward multiple external ports to multiple internal ports in FortiWeb.

There are some scenarios where it is necessary to forward multiple external ports to a single internal web server or multiple internal servers.

Scope

FortiWeb.

Solution

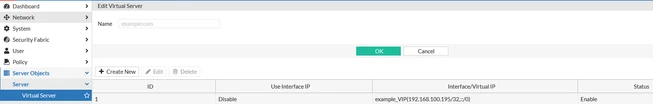

Virtual Server.png

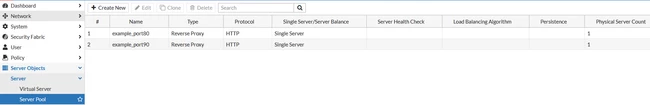

Configure Server Pools in FortiWeb: one server pool for TCP port 80 and one for 90.

server pool 1.png

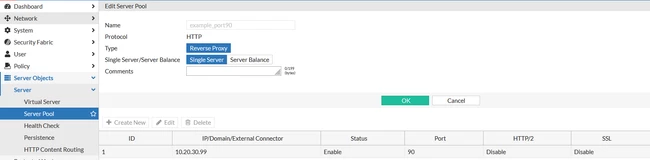

Both Server Pools point to the same internal server but different ports.

server pool 80.png

server pool 90.png

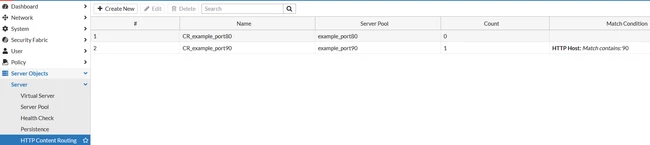

Content routing.png

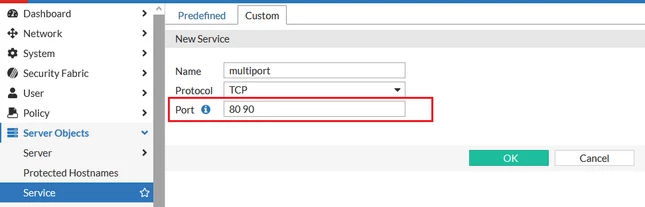

Configure the Custom Service with TCP ports 80 and 90. When this object is created, the ports must be separated by a space in the Port field.

custom port.png

CLI commands:

config server-policy service custom
edit "multiport"
set port 80 90
set protocol TCP
next
end

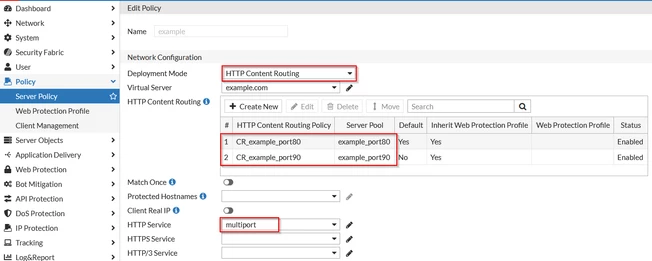

Configure Server Policy and set the Deployment Method to 'HTTP Content Routing', then select the Content Routing and Service created in steps 3 and 4.

Server Policy 1.png

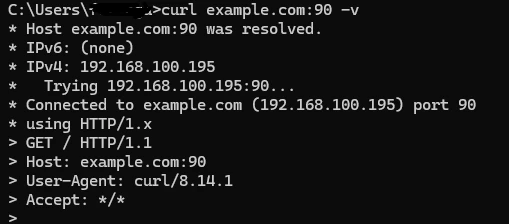

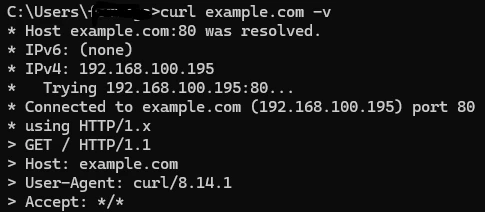

In the results, traffic is forwarded from the Virtual Server to the Internal Server using TCP ports 80 and 90.

curl 80.png

curl 90.png

Related documents:

server-policy http-content-routing-policy
