Technical Tip: How to create a user admin group on FortiWeb using REST API

Description

This article describes how to create a user admin group on FortiWeb using the REST API.

Scope

FortiWeb.

Solution

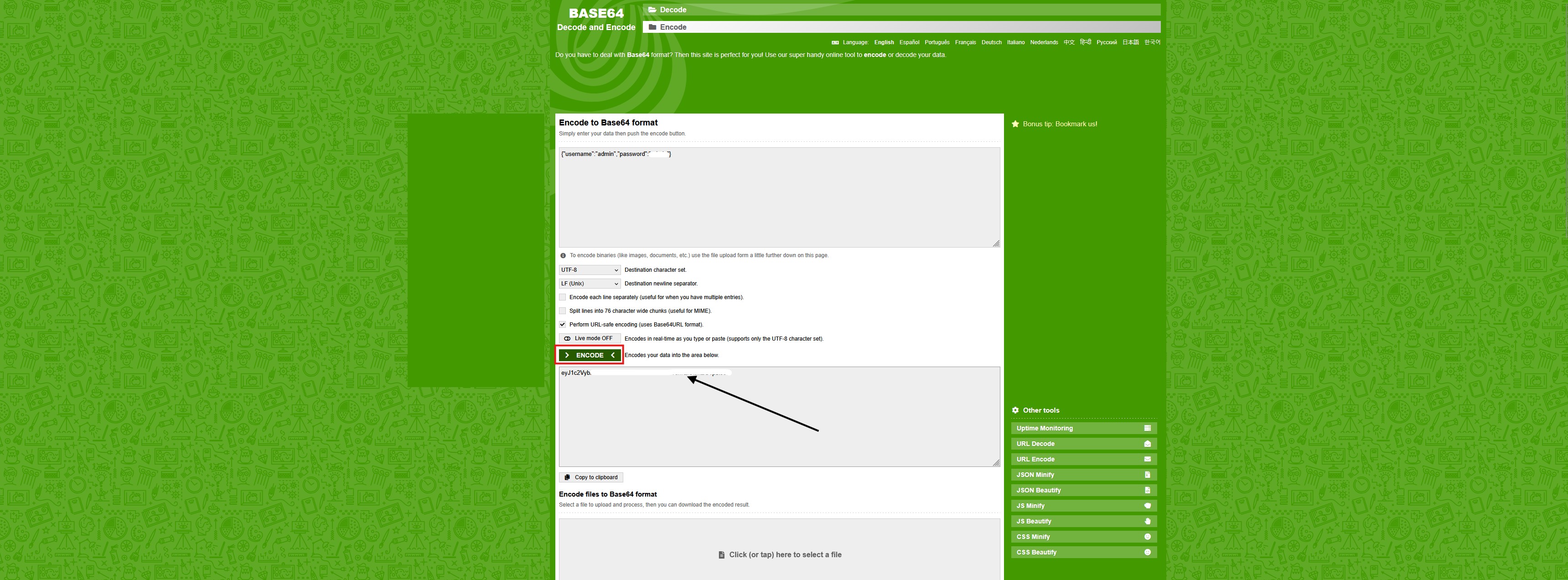

Before issuing the API call, generate a Base64-encoded token for the Authorization header. This token is used to authenticate with FortiWeb. To generate the encoded token, visit Base64 Encode and Decode - Online.

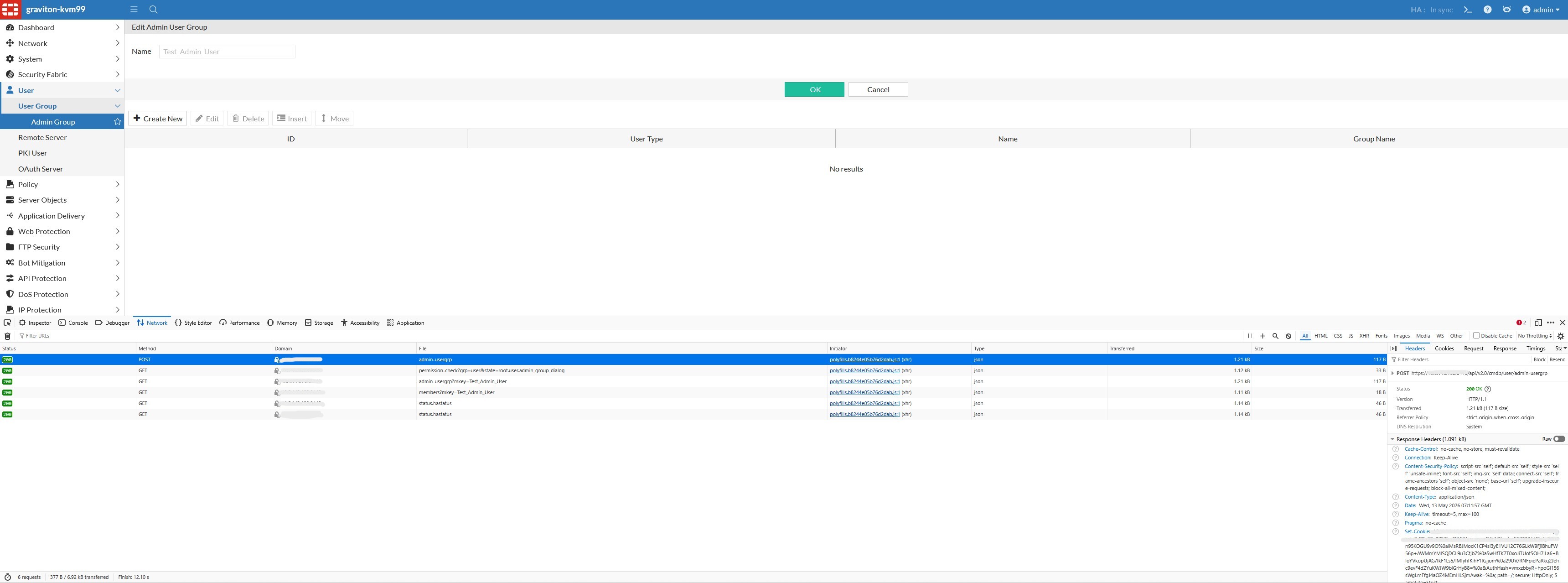

1. Obtain the CURL Commands by following the steps in this guide: Technical Tip: How to use browsers to obtain curl commands for testing.

2. Prepare Authorization Token:
   Encode the ForitWeb credentials in BASE64 format to use as an Authorization token.
   Example: {"username":"admin","password":"password1234","vdom":"root"}.

3. Set Up Postman:
   Open Postman and create a new request.
   Select the POST method.

4. Define API URL:
   Use the appropriate API endpoint for creating Admin User Group. Replace <FWB-IP> and <port> with the FortiWeb IP address and source port.
   Example URL: https://<FWB-IP>:<port>/api/v2.0/cmdb/user/admin-usergrp.

5. Set Headers:
   Add the Authorization header with the encoded token.
   Example: Authorization: <encoded_token>.

6. Send the Request: Select Send to create the Admin User Group.

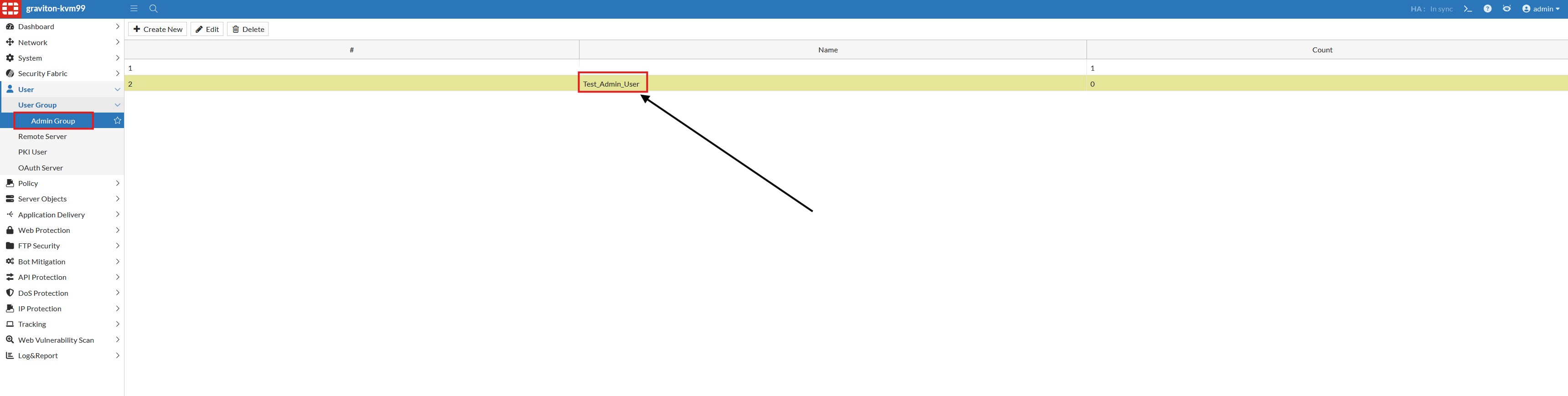

The result should look like this:

curl 'https://<FWB-IP>:<port>/api/v2.0/cmdb/user/admin-usergrp' \
  -X POST \
  -H 'User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:150.0) Gecko/20100101 Firefox/150.0' \
  -H 'Accept: application/json, text/plain, */*' \
  -H 'Accept-Language: en-US,en;q=0.9' \
  -H 'Accept-Encoding: gzip, deflate, br, zstd' \
  -H 'Content-Type: application/json;charset=utf-8' \
  -H 'Authorization: <encoded-token>' \
  --data-raw '{"data":{"q_type":1,"name":"Test_Admin_User","sz_members":-1}}'
