Technical Tip: How to configure FortiWeb Remote Radius Adminstrators using FortiAuthenticator as Radius Server

Forum|Forum|2 years ago
October 19, 2023
0 replies
2859 views

Description

This article describes how to configure Remote Radius Administrators using FortiAuthenticator as a Radius Server.

Scope

FortiWeb, FortiAuthenticator.

Solution

In this case, FortiAuthenticator will be used as a RADIUS Server.
Windows Server 2016 as LDAP.
FortiAuthentication connection to LDAP Windows Server 2016 was already completed.
A new Active Directory user was created, named: 'webuser'.

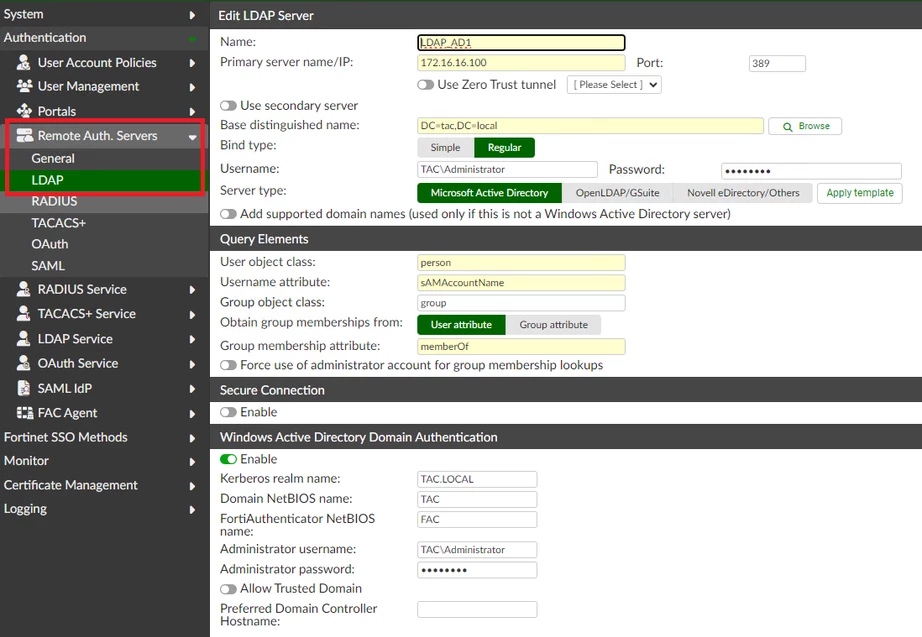

Example to configure Remote LDAP Server in FortiAuthenticator:

FortiAuthenticator Configurations. After configuring the Remote LDAP Server In FortiAuthenticator.

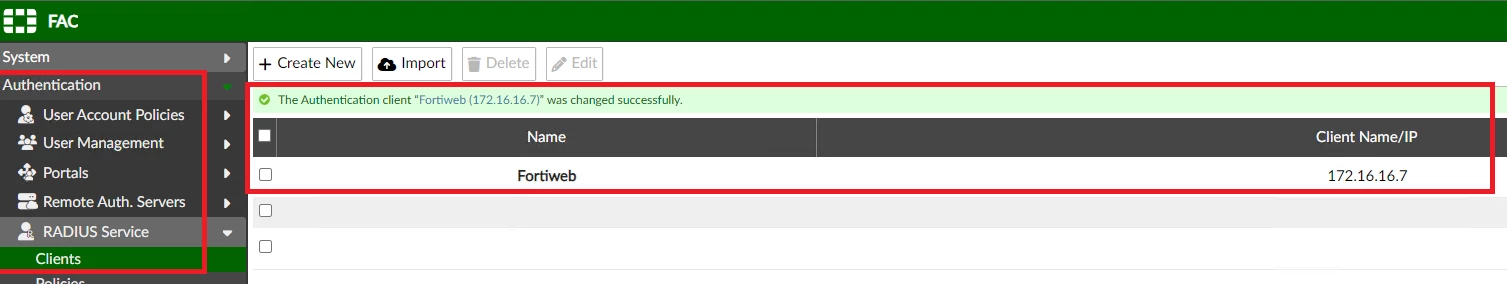

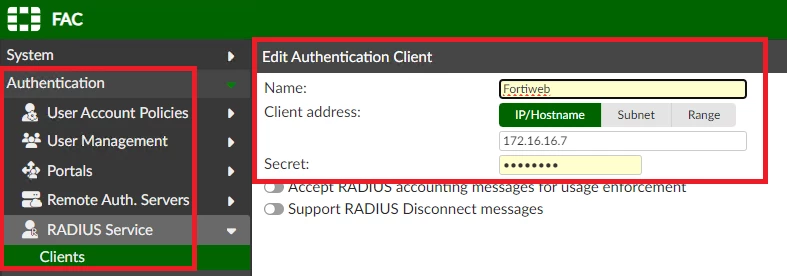

Connect FortiAuthenticator to FortiWeb.

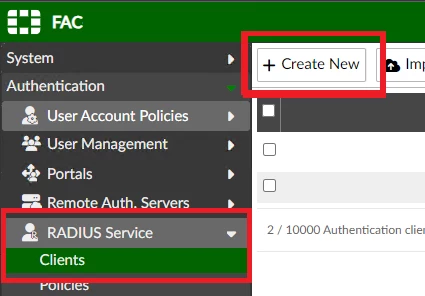

Go to Authentication -> RADIUS Service -> Client and select 'Create New'.

Complete with FortiWeb Information: Name, IP, Secret.

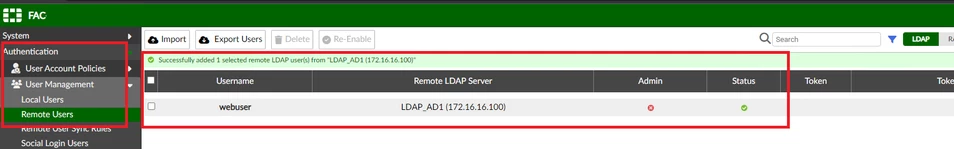

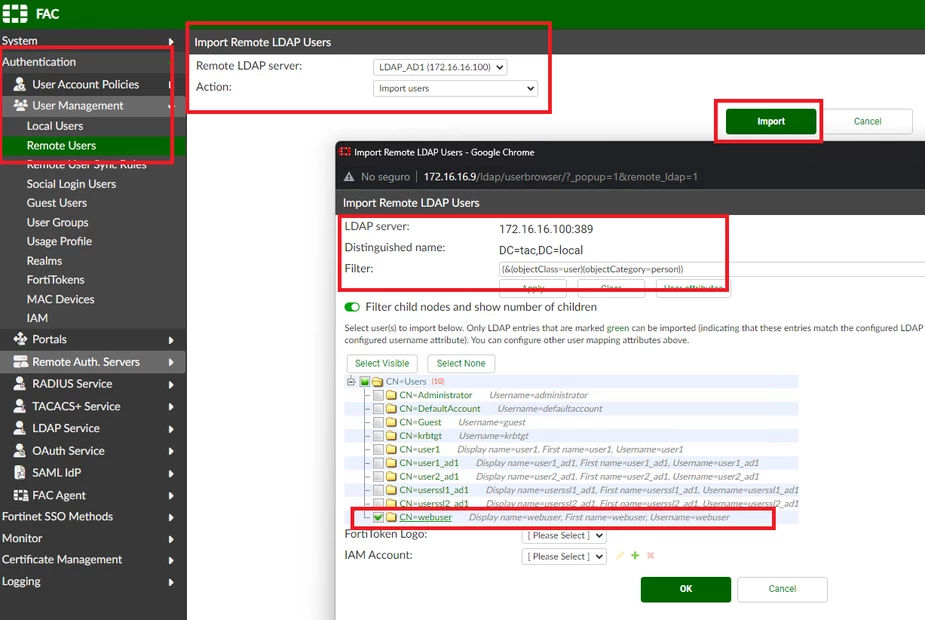

Import Remote LDAP user.

Go to User Management -> Remote Users and select 'Import'.

Select the Remote LDAP Server configured in FortiAuthenticator.
Action: Import users / Import.
Select users to Import to FortiAuthenticator and FortiWeb. In this example, the user to test is: 'webuser'.

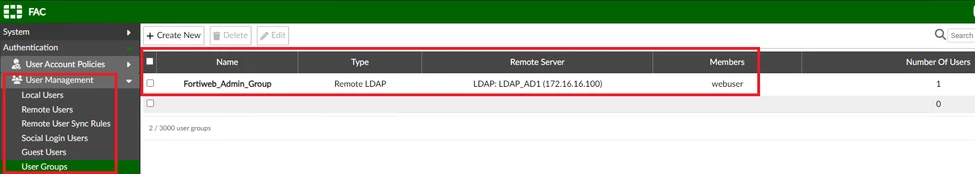

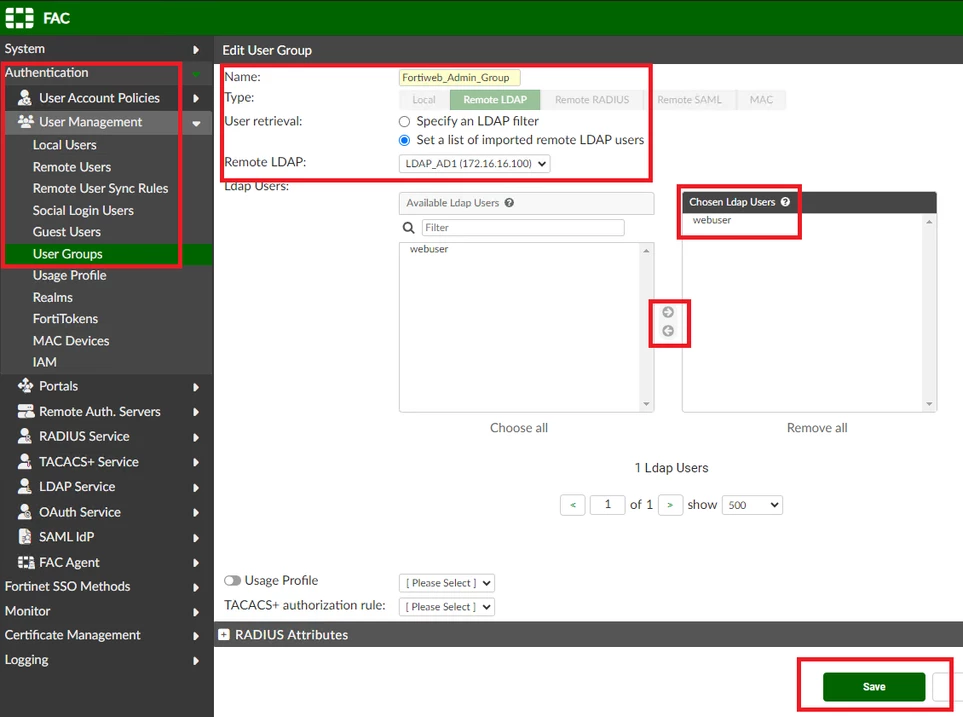

Create a User Group.

Go to User Management -> User Group and select 'Create New'.
Set Group Name.
Select Type: Remote LDAP.
Select Option: Set a list of imported remote LDAP users.
Select the Remote LDAP Server.
Select 'webuser' from the user list.
Save.

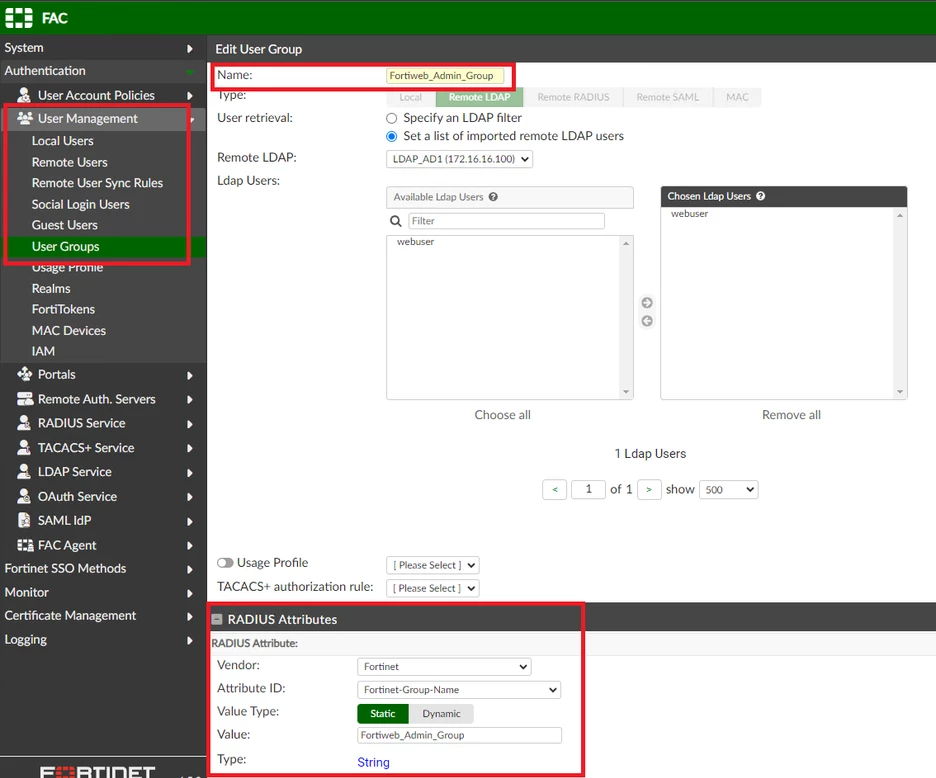

Configure Radius Attribute to User Group:

Go to User Management -> User Groups, edit the group created, and configure Radius Attribute
Set Vendor: Fortinet
Set Attibute ID: Fortinet-Group-Name
Set Value Type: Static
Set Value: Fortiweb_Admin_Group: This Attribute will be used in the FortiWeb Admin Group.
Set Type: String

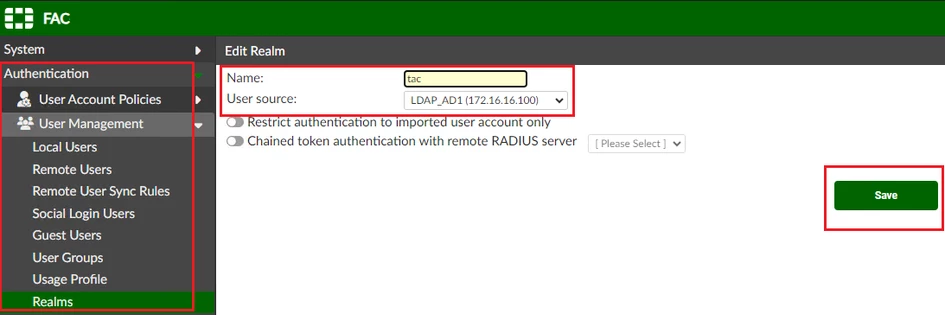

Create Realm.

Go to Authentication -> User Management -> Realms.
Create New.
Set Real Name.
Set User Source / Select Remote LDAP created.
Save.

Create RADIUS Policy.

Go to Authentication -> RADIUS Service -> Policies and select 'Create New'.

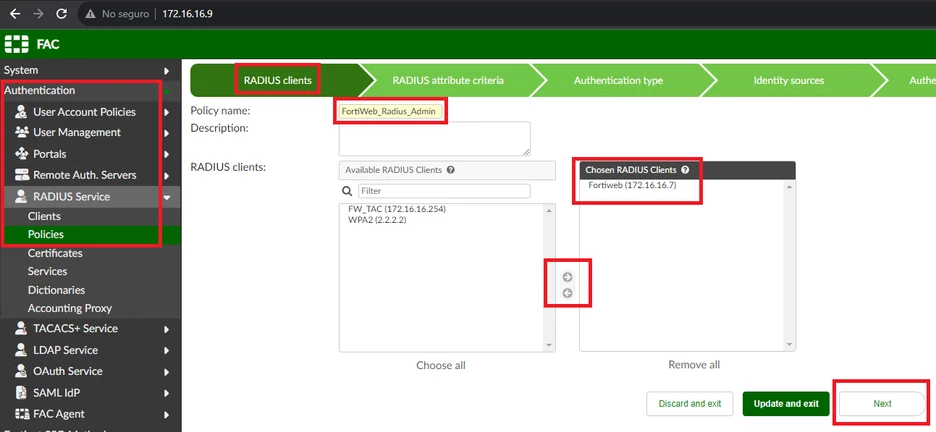

RADIUS clients:

Set Policy name.
Select FortiWeb Client, configure, move to the right, and select 'Next'.

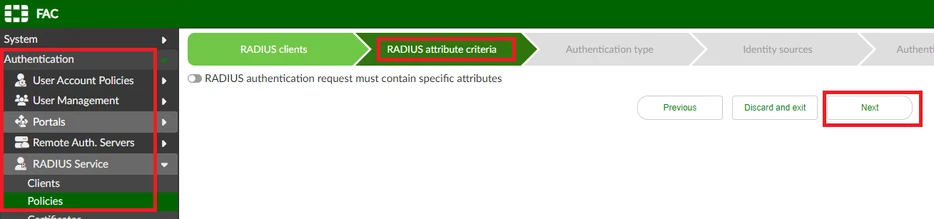

RADIUS attribute criteria:

Keep default values and select 'Next'.

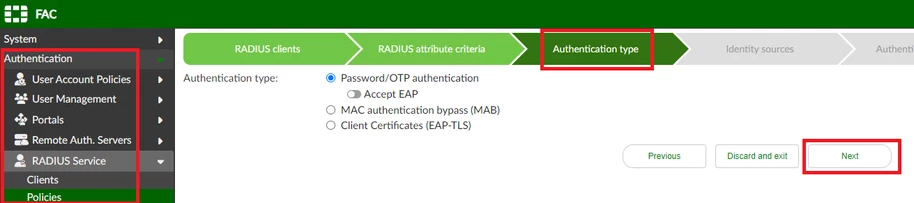

Authentication type:

Keep default values and select 'Next'.

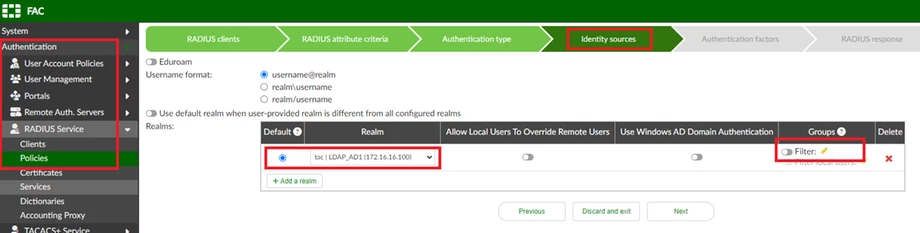

Identity sources:

Select Realm created to Active Directory LDAP.

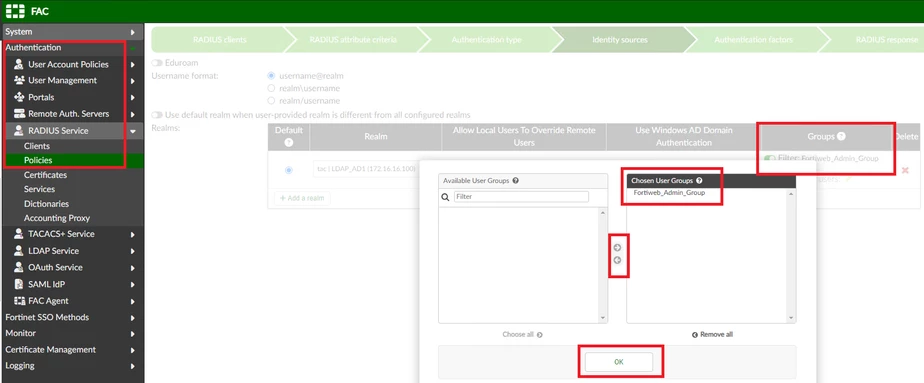

Select Filter.

Enable Filter and Select Fortiweb User Group created and select 'Next'.

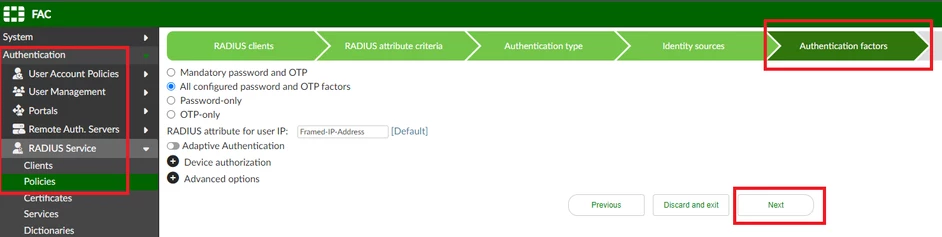

Authentication factors:

Keep default values and select 'Next'.

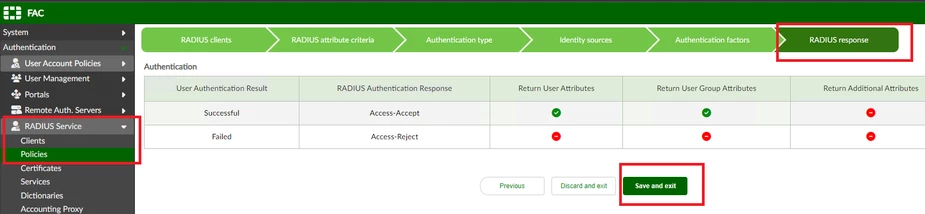

Radius response:

Keep default values, select 'Save' and exit

FortiWeb Configurations.

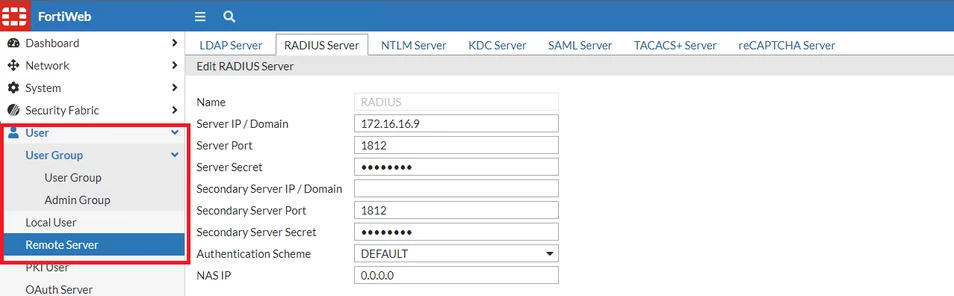

To configure the Remote RADIUS Server.

Go to User -> Remote Server -> RADIUS Server and select 'Create New'.
Complete with RADIUS information: Remote RADIUS IP, RADIUS port, Server Secret.
By Default select: Authentication Scheme: DEFAULT.

It is also possible to configure using FortiWeb CLI.

config user radius-user
edit "RADIUS" <----- Any RADIUS name.
set server 172.16.16.9 <----- Remote RADIUS IP.
set secret <RADIUS_password>
next
end

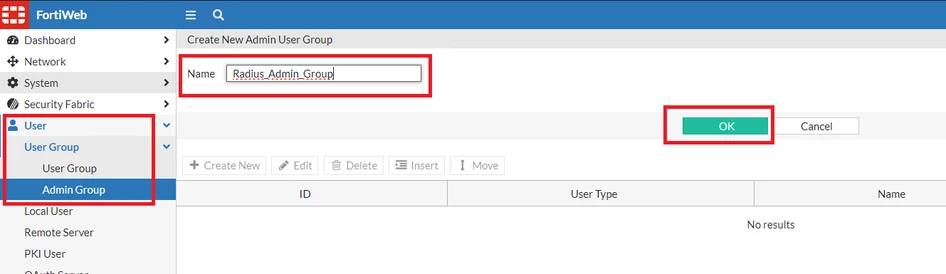

To configure the Admin Group

Go to User -> User Group -> Admin Group and select 'Create New'
Set Name and select 'OK' to save

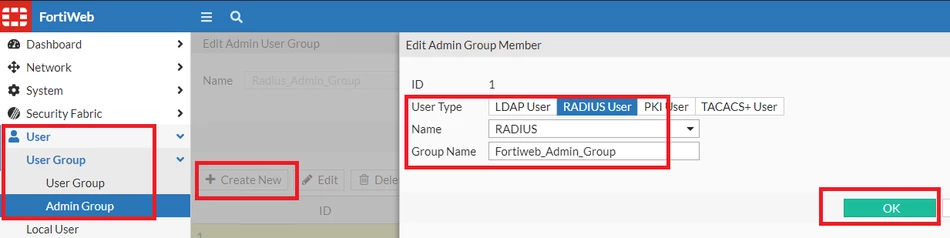

In the same Window select 'Create New'
Select User Type: RADIUS User
Name: Select Remote RADIUS Server configured at 'Step 1'
Set Group Name: Fortiweb_Admin_Group: This is the same Attribute configured in the FortiWeb User Group.
Select 'OK' to save

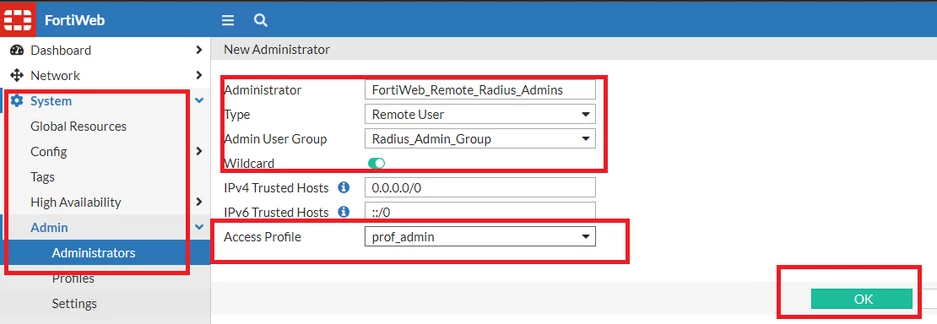

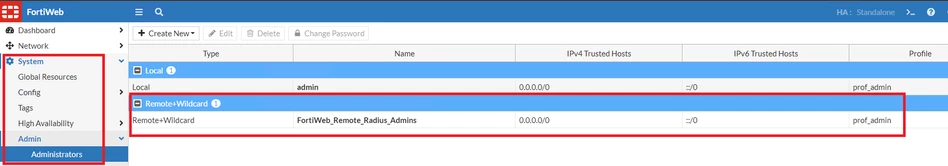

Creating Remote Admin Readius Administrator

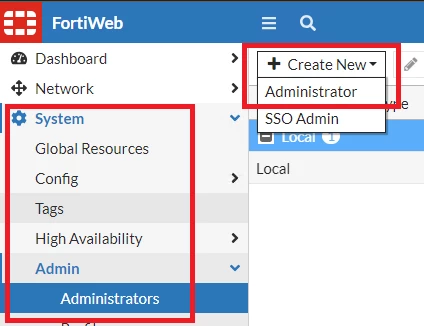

Go to System -> Admin -> Adminstrators and select 'Create New -> Administrator'

Set Administrator: You can configure ANY name because the Wildcard option will be enabled to use only LDAP users in FortiAuthenticator Group.
Select Type: Remote User
Select Admin User Group: Radius_Admin_Group: This is the same Radius Group configured at 'Step 3'.
Enable 'Wildcard'.
Select Access Profile: prof_admin.
Select 'OK' to save.
