Technical Tip: Configuring Management, SNMP, SYSLOG traffic from FortiWeb Secondary Unit
Description
This article explains how to configure a management interface on a FortiWeb HA Secondary unit to send network management traffic e.g. SNMP TRAPS and SYSLOG.
Scope
FortiWeb.
Solution
For basic management access to the backup FortiWeb unit using the GUI or CLI to configure management traffic, SNMP traps, SNMP polling or to generate Syslog traffic

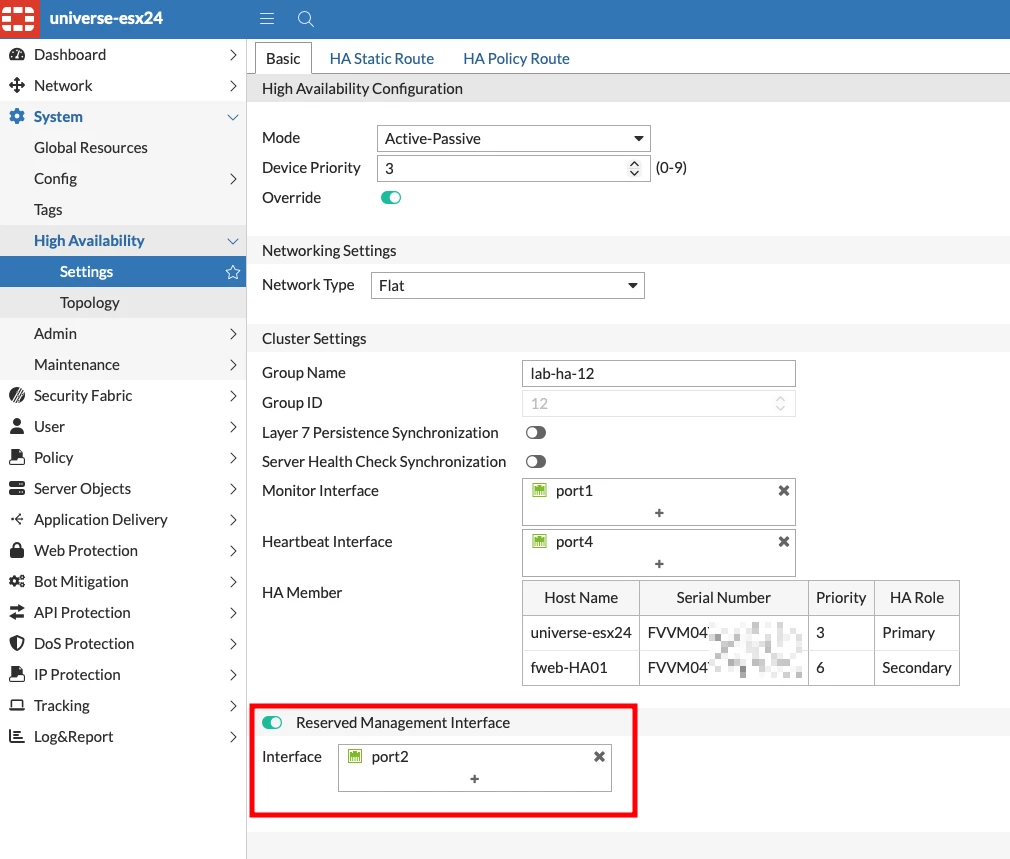

Go to System -> High Availability -> Settings; Enable 'Reserved Management Interface'.

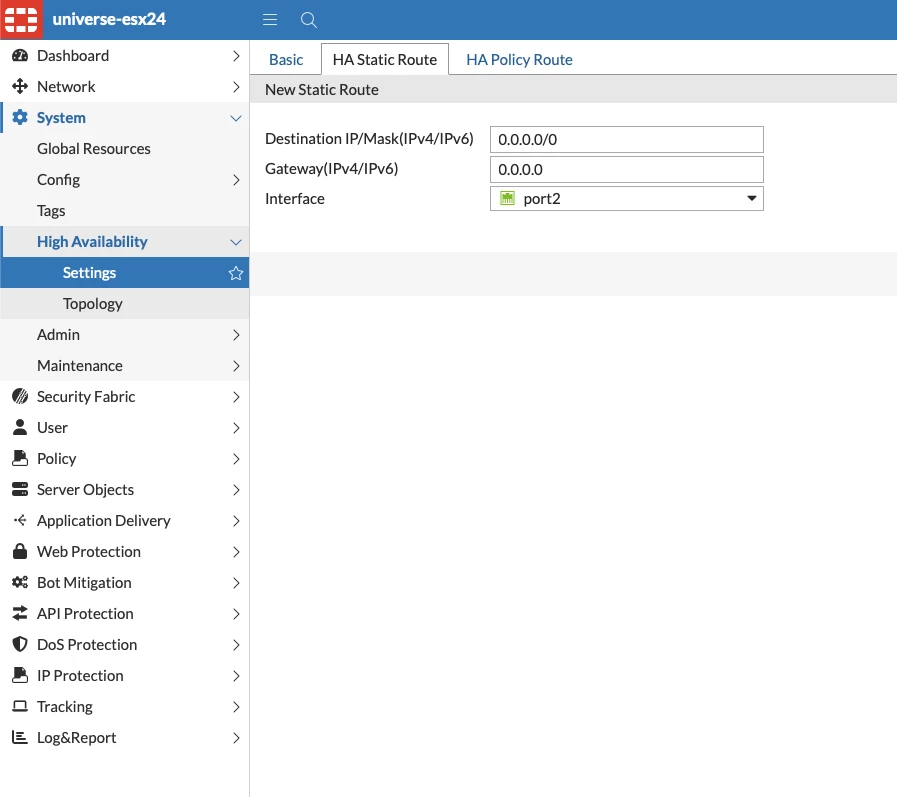

 Configure the Interface, for example, Port2, which will use the IP address of Port2 for the backup management IP. Add HA Static Route if the SNMP/SYSLOG server is in a subnet different from the defined interface subnet
