Technical Tip: How to setup RADIUS authentication for FortiWAN login by using Free Radius

Description
This article shows an example to setup Free Radius authentication for FortiWAN login

Solution
(1)    Topology
FortiWAN 10.1.212.121 <------> 10.1.212.111 Free Radius

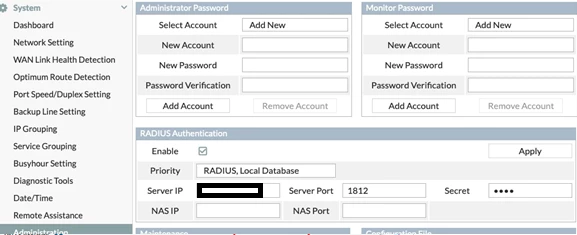

(2)    FortiWAN setup

Secret : 1234

(3)    Free Radius Setup
User/passwd, xxx/xxx

/usr/share/freeradius/dictionary.fortinet
#
# Fortinet's VSA's
#

VENDOR Fortinet 12356

BEGIN-VENDOR Fortinet
ATTRIBUTE Fortinet-Group-Name 1 string
ATTRIBUTE Fortinet-Client-IP-Address 2 ipaddr
ATTRIBUTE Fortinet-Vdom-Name 3 string
ATTRIBUTE Fortinet-Client-IPv6-Address 4 octets
ATTRIBUTE Fortinet-Interface-Name 5 string
ATTRIBUTE Fortinet-Access-Profile 6 string
ATTRIBUTE Fortinet-FWN-AVPair 26 string

#
# Integer Translations
#

END-VENDOR Fortinet



[\etc\freeradius\users]
xxx Cleartext-Password := "xxx"
Fortinet-FWN-AVPair := "user-group=Administrator"



[\etc\freeradius\clients.conf]
client 10.1.212.24 {
ipaddr = 10.1.212.24
secret = 1234
}



Result: After input xxx/xxx into FortiWAN GUI, user will login as Administrator
