Technical Tip: How to setup LinkReport to save the log instead of using local report Database
Description
LinkReport is a program to save the log by remote Database.
This article describes how to install and setup LinkReport .
Benefit : to save the log in LinkReport can reserve more CPU and memory usage than local report DB
Solution

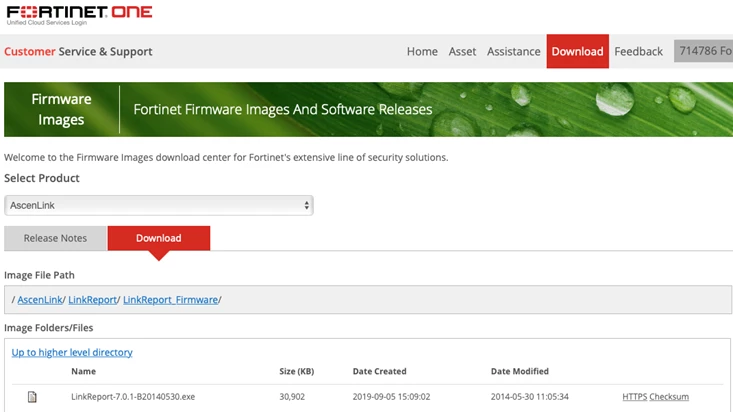

1) Download LinkReport.
LinkReport install file 'LinkReport-7.0.1-B20140530.exe' can be download on support.fortinet.com (under AscenLink product).
LinkReport is a program to save the log by remote Database.
This article describes how to install and setup LinkReport .
Benefit : to save the log in LinkReport can reserve more CPU and memory usage than local report DB
Solution
1) Download LinkReport.
LinkReport install file 'LinkReport-7.0.1-B20140530.exe' can be download on support.fortinet.com (under AscenLink product).

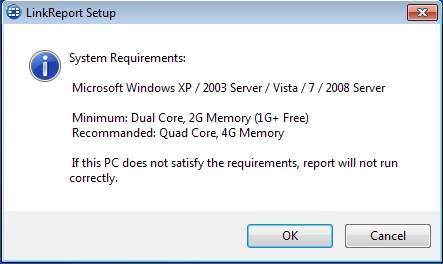

2) Install LinkReport.System requirement:3) Setup LinkReport.

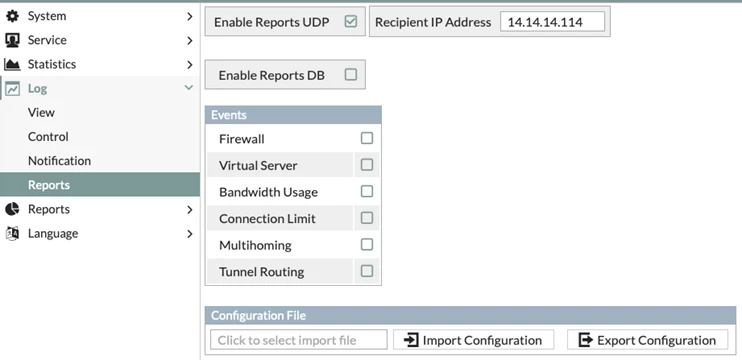

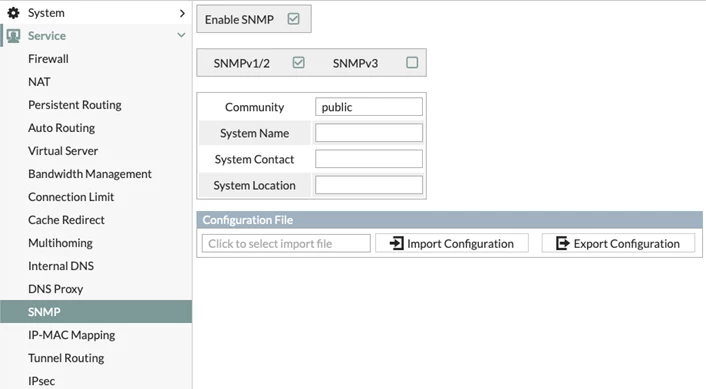

Setup in FortiWAN:- Enable SNMP.- Enable Reports UDP and input the IP address of LinkReport (LinkReport is installed in Laptop with IP 14.14.14.114).Setup in LinkReport:

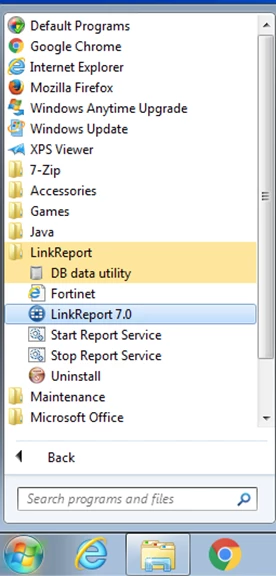

- Running LinkReport after install.

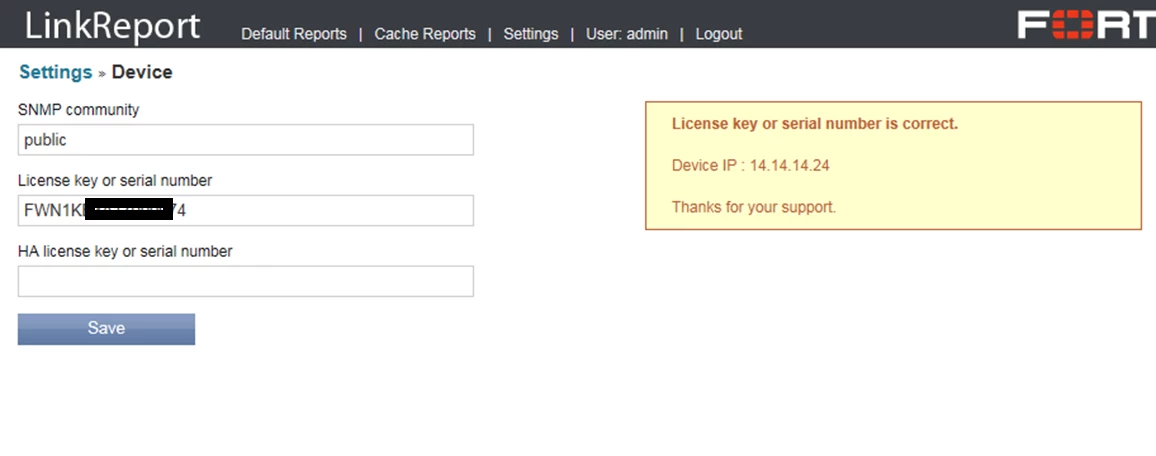

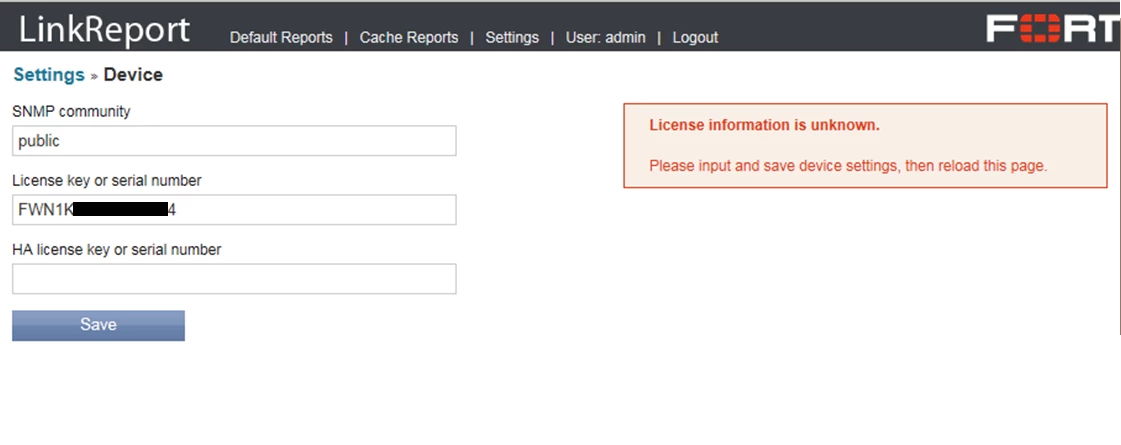

- Default login credential admin/change.- Input serial number of FortiWAN into Settings.- When LinkReport is connected with FortiWAN.
