Technical Tip: How to setup LinkReport to save the log for AscenLink
Description
LinkReport is a program to save the log by remote database.
This article describes how to install and setup LinkReport for AscenLink.
Solution
1) Download LinkReport

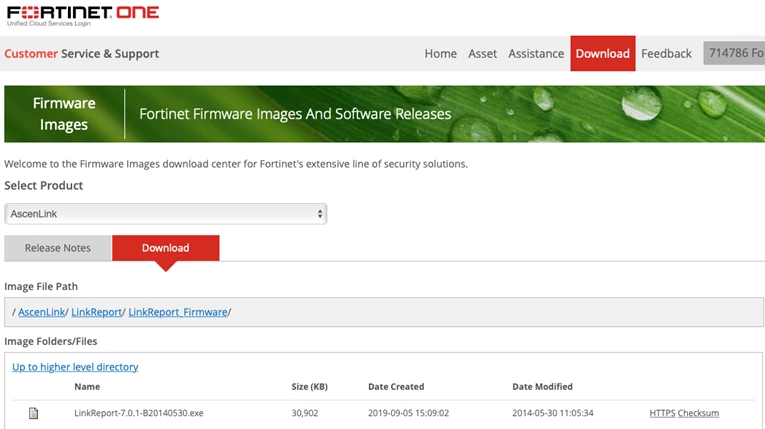

LinkReport install file LinkReport-7.0.1-B20140530.exe can be download on support.fortinet.com (under AscenLink Product).
LinkReport is a program to save the log by remote database.
This article describes how to install and setup LinkReport for AscenLink.
Solution
1) Download LinkReport
LinkReport install file LinkReport-7.0.1-B20140530.exe can be download on support.fortinet.com (under AscenLink Product).
2) Install LinkReport

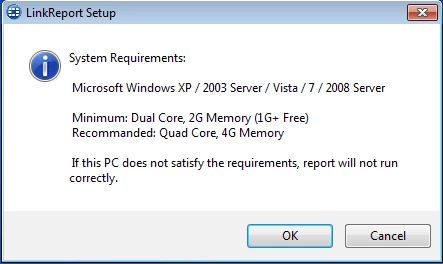

System requirement:
3) Setup LinkReport
Setup in AscenLink:
Setup in AscenLink:

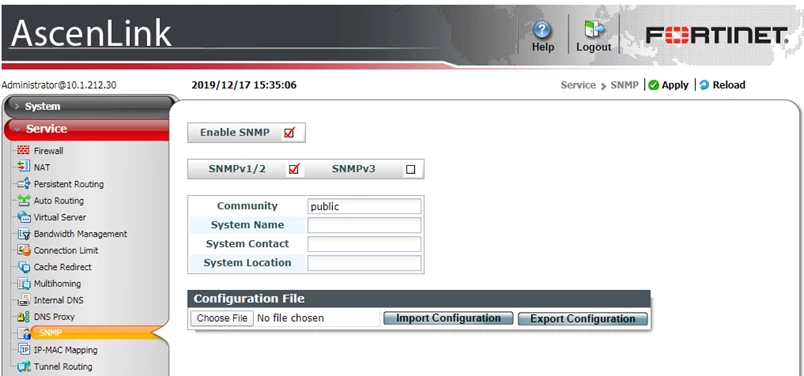

-Enable SNMP.

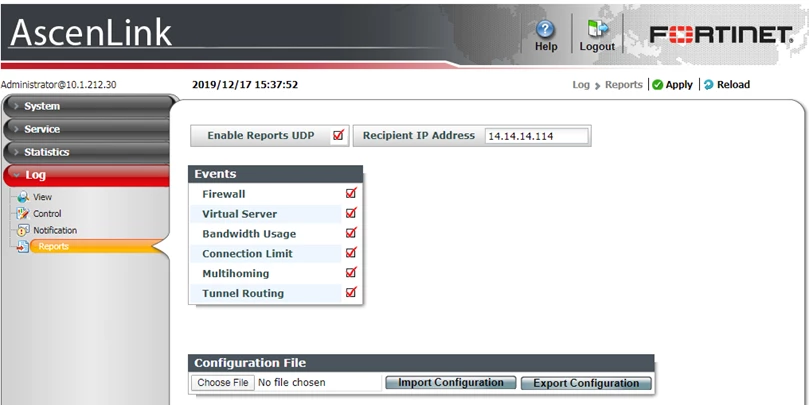

- Enable reports UDP and input the IP address of LinkReport (LinkReport is installed in Laptop with IP 14.14.14.114).
Setup in Link Report:

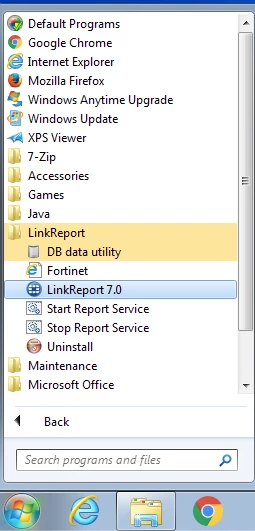

- Running LinkReport after install.
- Running LinkReport after install.
- Default login credential admin/change.

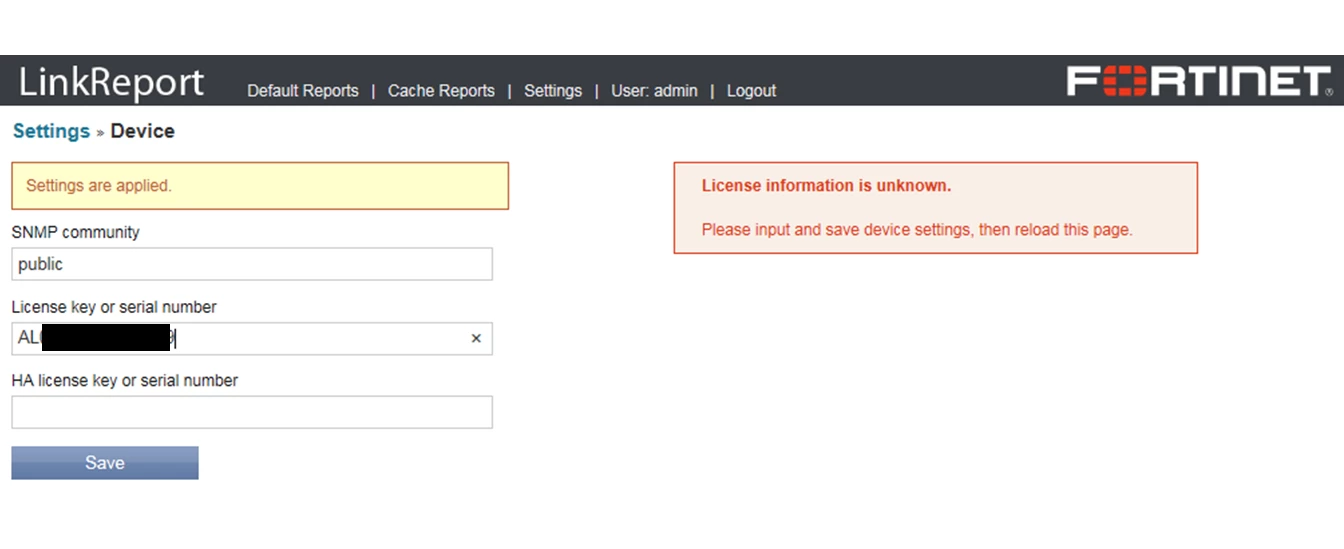

- Input serial number of AscenLink into Settings.

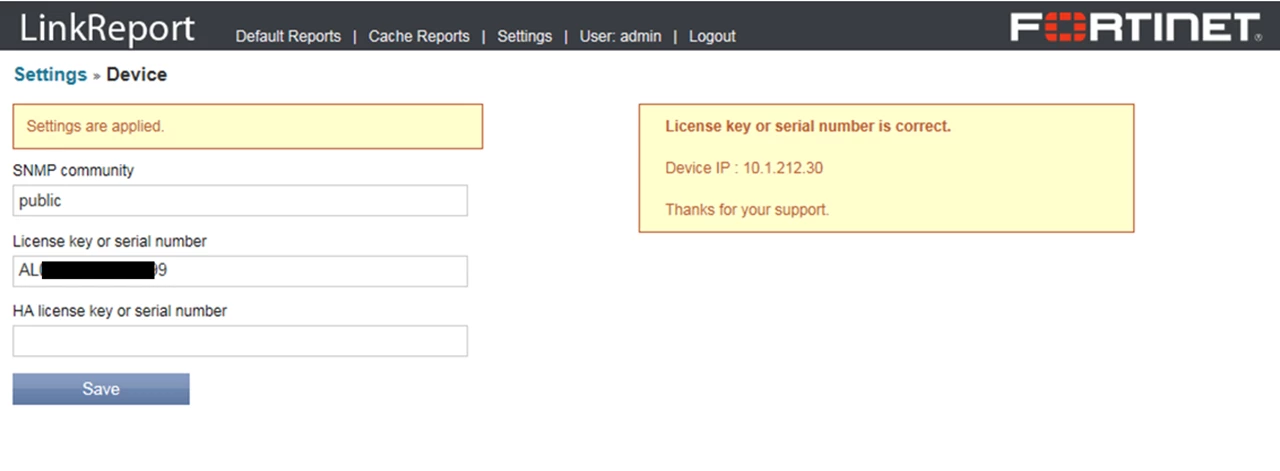

- When LinkReport is connected with AscenLink:
