Technical Tip: FVC configure SIP Trunk

Description

This article provides basic steps to configure a SIP trunk.

Scope

FortiVoice.

Solution

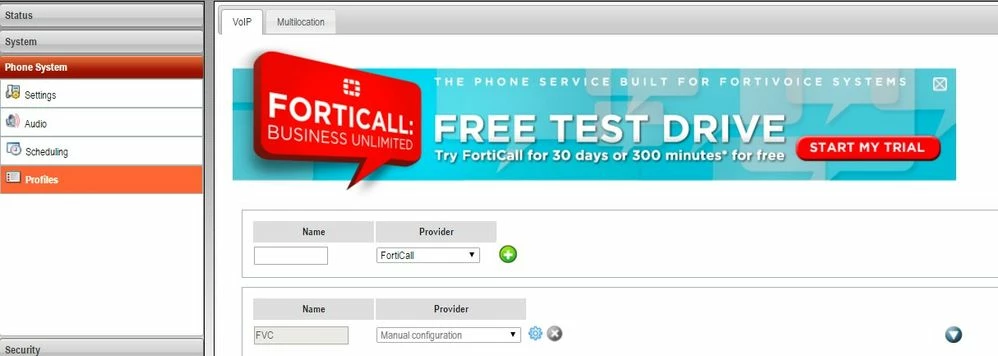

1. Create a SIP trunk Profile: Go to Phone System -> Profiles.


    

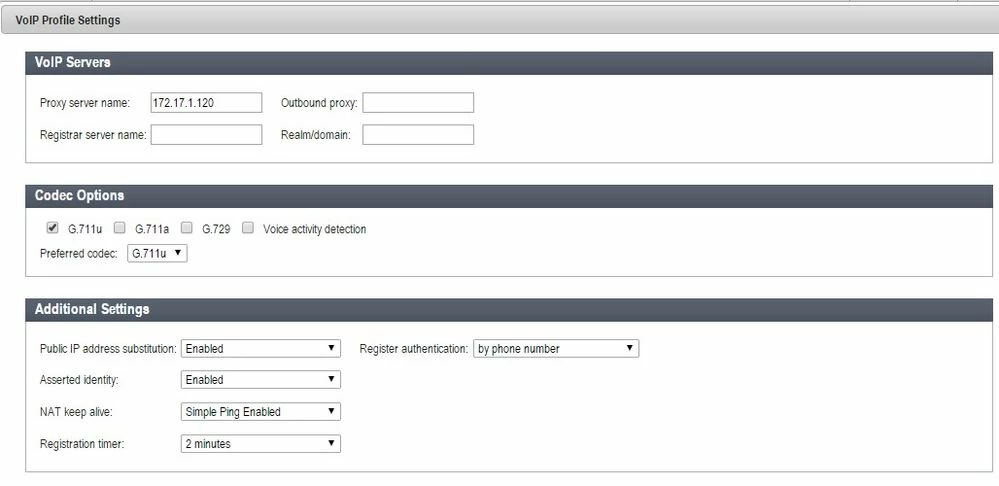

2. Configure SIP proxyRegister authentication: By phone number:

3.

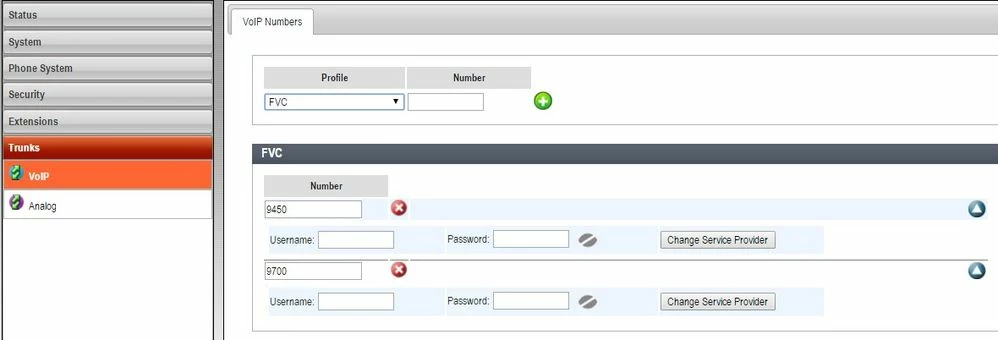

   Configure Incoming DID. Go to Trunks -> VoIP and select the profile previously created, and add a number (DID).


4.

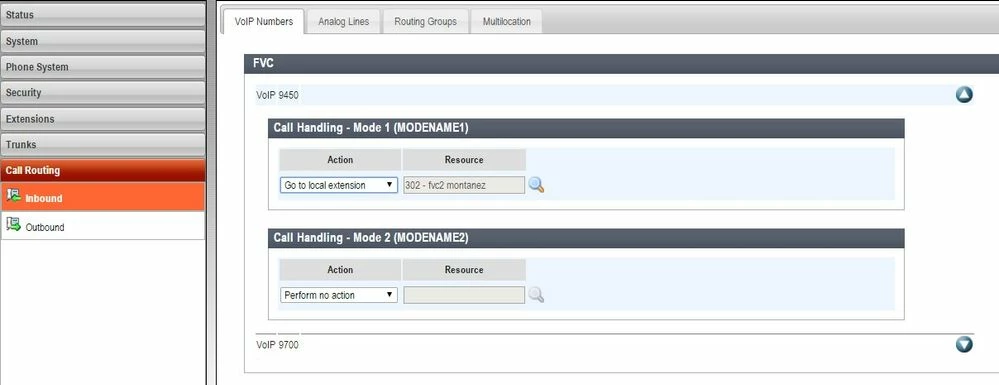

   Create Inbound Call routing. Go to Call routing -> Inbound.

   For testing purposes:

   Action: Go to the local extension.

   Resource: Extension.





    

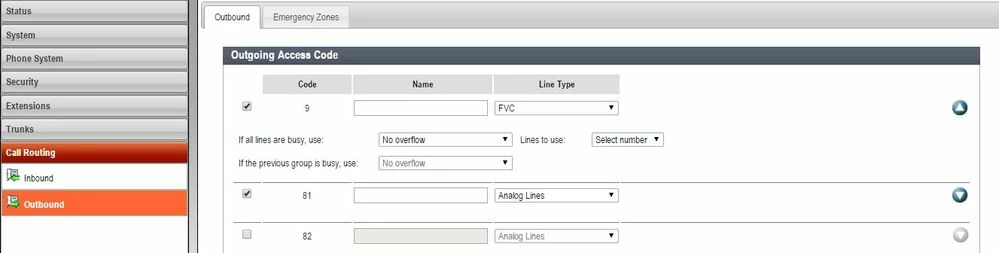

5. Configure Outbound Call Routing.
   Go to Call Routing -> Oubound.
   Prefix 9 | Line Type: SIP trunk.

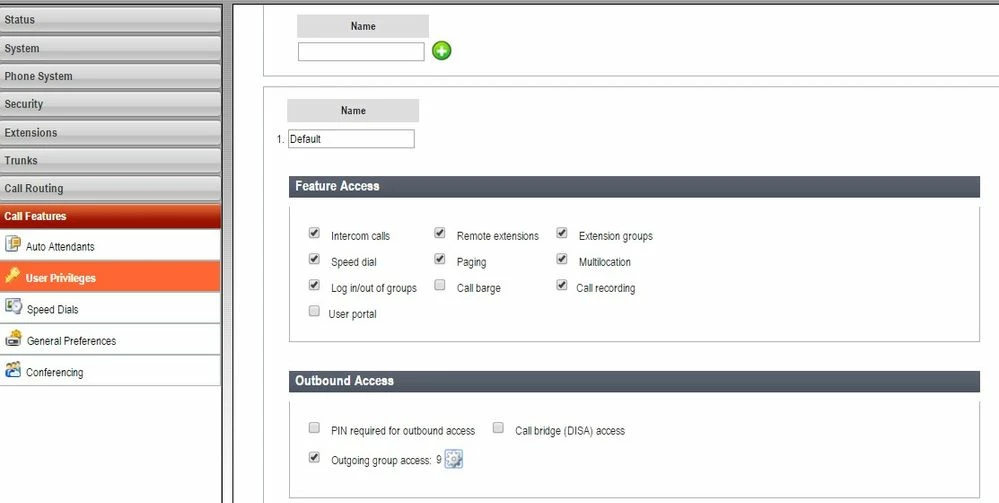

6. Configure profile.
   Go to Call Features -> User privileges.



    

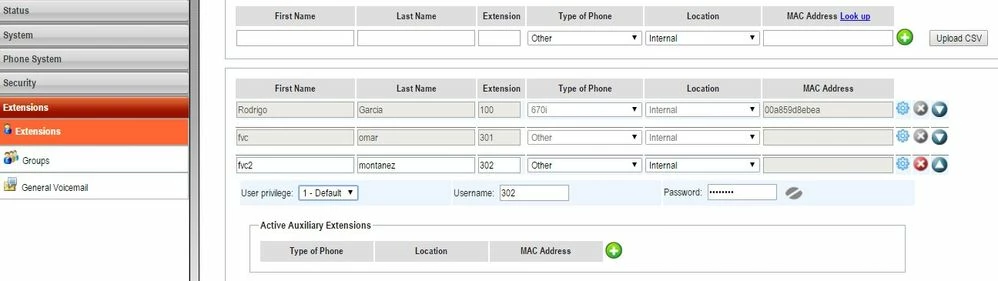

7. Apply Profile to an extension.
   Go to Extensions -> extension.


 

Related document:

Configuring VoIP trunks
