Technical Tip: Configuring a 'Personal Code' to make some restricted calls

1. Go to Extension -> Extension -> IP Extension.

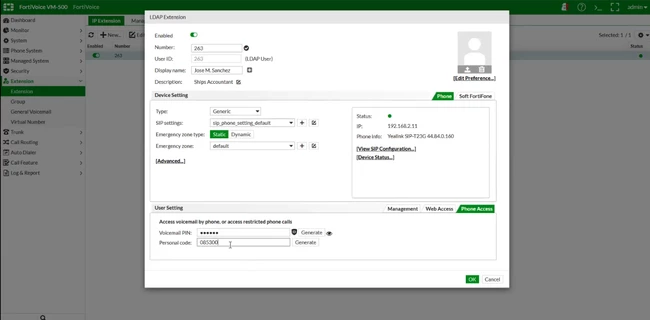

2. Double-click an extension, then go to User Settings -> Phone Access.

Configure the Personal Code:

This code is necessary to make some restricted calls.

Select Generate to get a code.

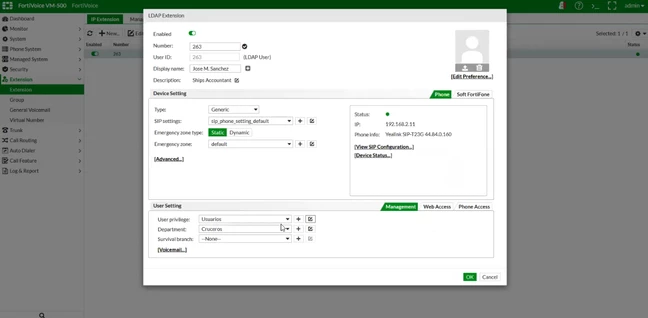

3. Go to User Setting -> Management, then select and edit the User Privilege profile.

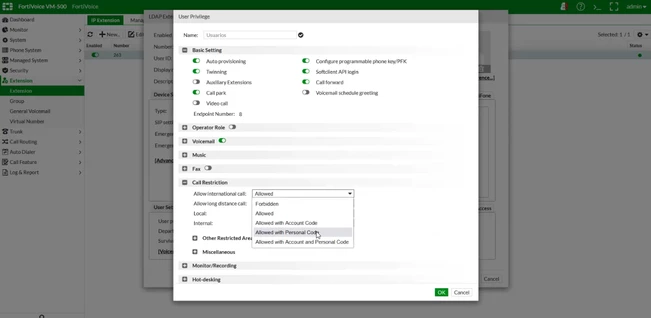

4. From User Privilege -> Call Restriction, define the restriction for International, LongDistance, Local, or Internal calls.

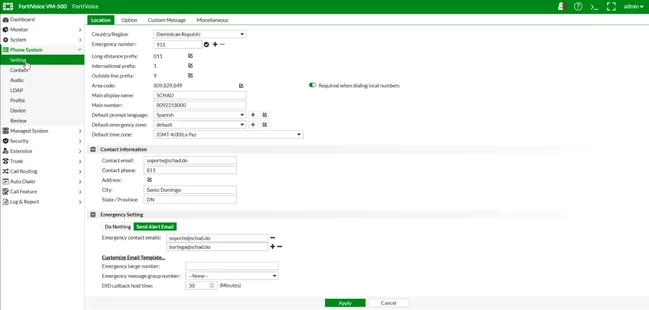

Note: The FortiVoice system uses the Location settings (PhoneSystem -> Setting) to identify the prefix for:

• LongDistance (Long-distance prefix).
• International (International prefix).
• Internal (Area code).

config pbx location
   set country Dominican Republic
   set area-code 809 829 849
   set main-number 8092218000
   set domestic-prefix 011
   set international-prefix 1
   set emergency-number 911
   set default-timezone 16
end
