Techincal Note: Multi location between Enterprise and Series D (SMB) FortiVoice units
Description
Solution
This article describes how to configure Multi-location between an enterprise unit and a series D (SMB) FortiVoice. There are special considerations the administrator needs to be aware of at the moment to deploy this solution.
Solution
Series D (SMB) Unit Configuration

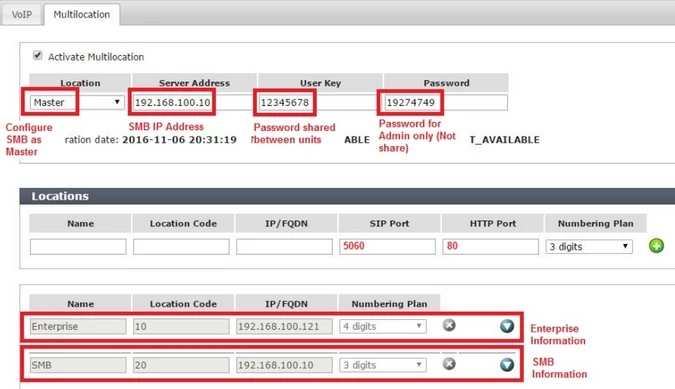

Go to Phone System > Profiles > Multilocation and configure as follow:
Enterprise Unit Configuration

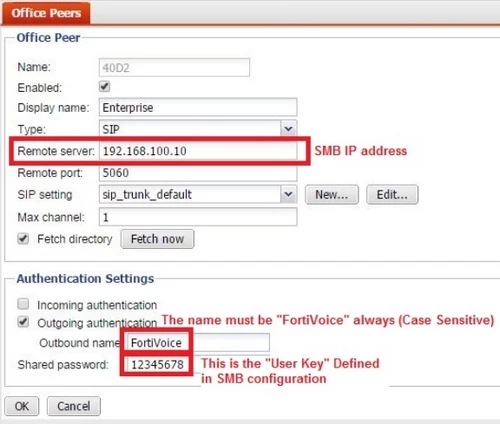

Go to Trunks > Office Peers, create a new profile and configure as follows:

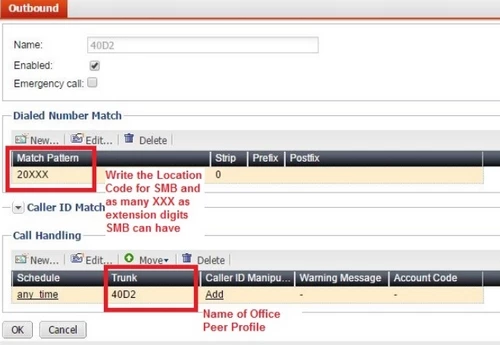

Then go to Call Routing > Outbound, and create a new route and configure it as follows:
Important considerations.
- SMB must be configured as Master.
- In the Enterprise Office Peer profile, the name on the authentication settings must be "FortiVoice", and it is case sensitive.
- The user key configured in SMB must be configured the same as the authentication password in Enterprise Office Peer profile.
