Technical Tip: How to set up MCLAG with ISP routers redundancy

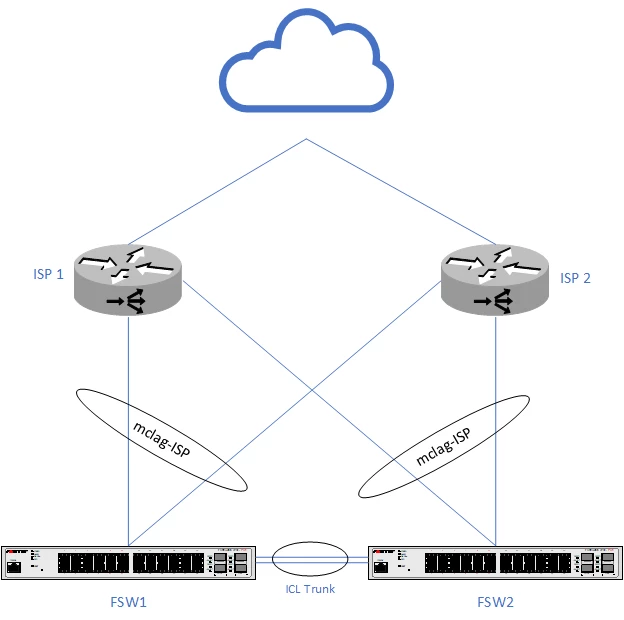

Example of MCLAG topology with ISP routers and crossed links for redundancy:

In this scenario, each FortiSwitch member of the MCLAG has one connection with each ISP Router.

• Configure the ICL (InterChassis Link) connection between both FortiSwitch devices: Configuration must match on both switches.

FSW1:

config switch trunk

    edit ICL-Trunk

        set mode lacp-active

        set mclag-icl enable

        set members "port10" "port11"

    next

end

FSW2:

config switch trunk

    edit ICL-Trunk

        set mode lacp-active

        set mclag-icl enable

        set members "port10" "port11"

    next

end

• Configure MCLAG trunks with the ISP Routers in both FortiSwitch devices: Configuration must be identical, but member ports can be different among the switches

FSW1:

config switch trunk

    edit "mclag-ISP"

        set mode lacp-active

        set mclag enable

        set members "port3" "port4"

    next

end

FSW2:

config switch trunk

    edit "mclag-ISP"

        set mode lacp-active

        set mclag enable

        set members "port7" "port8"

    next

end

• For VLAN traffic between the MCLAG members, the necessary VLANs must be allowed in the ICL Trunk:

FSW1:

config switch interface

    edit ICL-Trunk

        set allowed-vlans 1-4094 <----- This allows all VLANs to flow through the ICL Trunk.

        set dhcp-snooping trusted

        set edge-port disabled

        set igmp-snooping-flood-reports enable

        set mcast-snooping-flood-traffic enable

    next

end

FSW2:

config switch interface

    edit ICL-Trunk

        set allowed-vlans 1-4094 <----- This allows all VLANs to flow through the ICL Trunk.

        set dhcp-snooping trusted

        set edge-port disabled

        set igmp-snooping-flood-reports enable

        set mcast-snooping-flood-traffic enable

    next

end

• Allow the necessary VLANs in the Trunk interfaces that connect to the ISP routers: Same VLANs must be configured in both switches, even if some VLANs do not exist in both routers. The trunks must have the same configuration in both MCLAG peers.

FSW1:

config switch interface

    edit mclag-ISP

        set allowed-vlans 10,20,30,200

    next

end

FSW2:

config switch interface

    edit mclag-ISP

        set allowed-vlans 10,20,30,200

    next

end
