Technical Tip: How to check FortiSwitch ports that have auto discovery enabled for FortiLink by default
| Description | This article describes how to identify the default ports in Fortiswitch that have auto discovery enabled. Ports with auto discovery are used by FortiGate to discover and manage FortiSwitches. |
| Scope | FortiSwitch. |

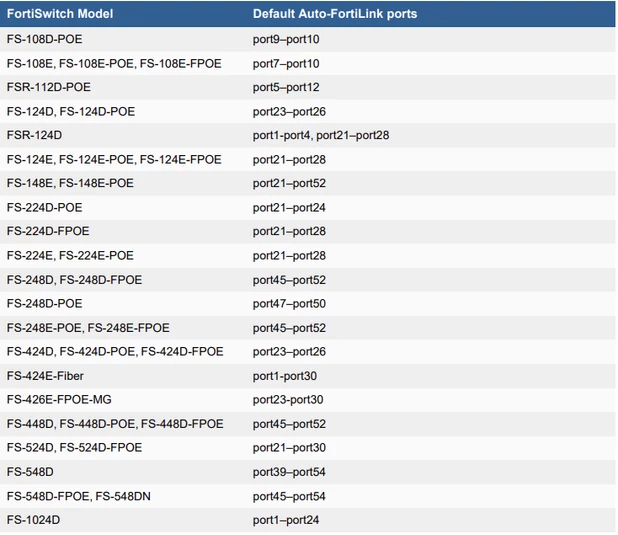

| Solution | To check the default Auto-FortiLink ports, refer to the document below. Page 18 shows the default Auto-FortiLink ports for each FortiSwitch model: https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/a5cb2173-7e2e-11ec-a0d0-fa163e15d75b/FortiSwitch-7.0.4-FortiSwitch_Devices_Managed_by_FortiOS_7.0.pdf
To check if auto-discovery is enabled in CLI, log in to FortiSwitch through the console and type the following commands.
config switch interface show edit portx set auto-discovery-fortilink enabled <----- This option should be enabled. next end
Related document: |
