Technical Tip: How to check and analyse Health status of a managed FortiSwitch

  • October 21, 2024
  • 0 replies
  • 7004 views
Description This article describes how to analyze the health status of a managed FortiSwitch based on the parameter threshold
Scope All FortiGate and Fortiswitch
Solution
  1. In the FortiGate GUI, navigate to WiFi & Switch Controller -> Managed FortiSwitch -> Right-click on any online FortiSwitch and           select Diagnostics & Tools.

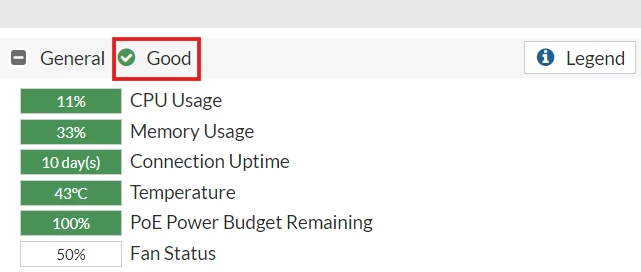

    View the FortiSwitch parameters:



Screenshot 2024-10-21 204749.png

 

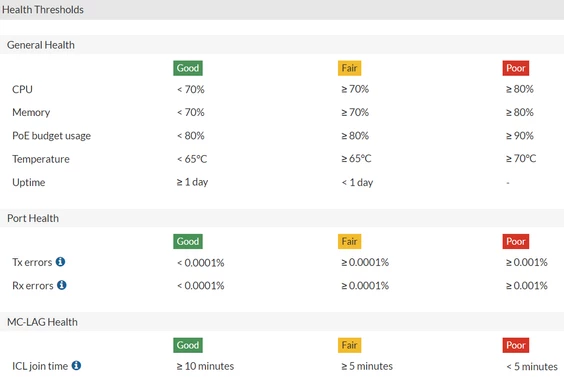

  1. Select the Legend icon on the top right corner.

  2. Verify the health threshold for each parameter.



Screenshot 2024-10-21 204346.png

 
