Technical tip: FortiSwitch topology view incomplete after FortiOS upgrade to v7.6.5

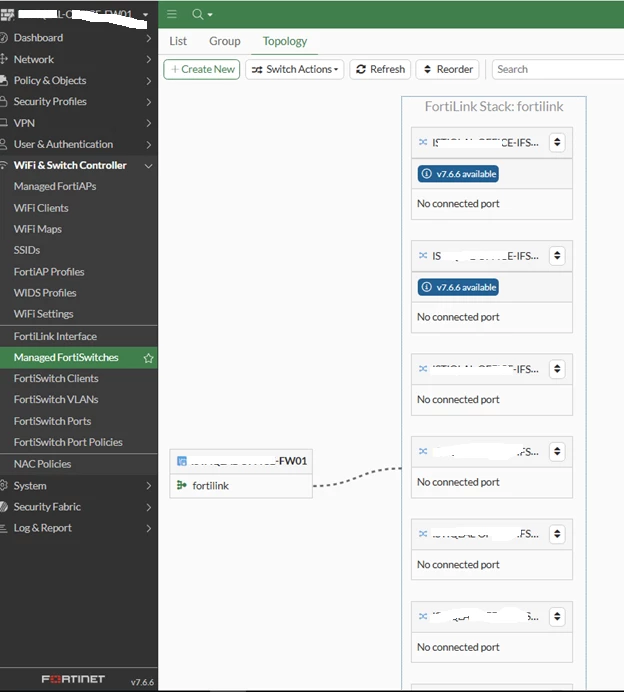

FortiOS v7.6.5 and 7.6.6 GA are showing an incomplete topology view under Managed FortiSwitches -> Topology section.

FortiLink connection between the FortiGate and the FortiSwitch units shows a dotted line, and FortiSwitches show no connected ports information.

Execute switch-controller get-physical-conn standard shows blank output.

FW01 # execute switch-controller get-physical-conn standard

This will display connectivity graph information for FortiLink from FortiGate's perspective
NOTE : If FortiSwitch is not authorized, no connectivity information will be shown
NOTE : If FortiSwitch is in idle state, no connectivity information will be shown
NOTE : If FortiSwitch ISL peer has inconsistent info, no connectivity information will be shown

Managed FortiLinks in current vdom root:

FortiLink interface : fortilink

FortiGate is not displaying the FortiSwitch topology correctly after the upgrade to v7.6.5 or v7.6.6 when the FortiSwitch name is more than 16 characters

This is a known bug reported in FortiOS versions. It will be fixed in the upcoming FortiOS version 7.6.7.

Workaround:

1. Change the FortiSwitch name to less than 16 characters.
2. Reboot the FortiGate.
