Technical Tip: FortiLink Type L4
| Description | This article describes the meaning of FortiLink Type L4. |
| Scope | FortiGate managing FortiSwitches version 7.4.x and above. |

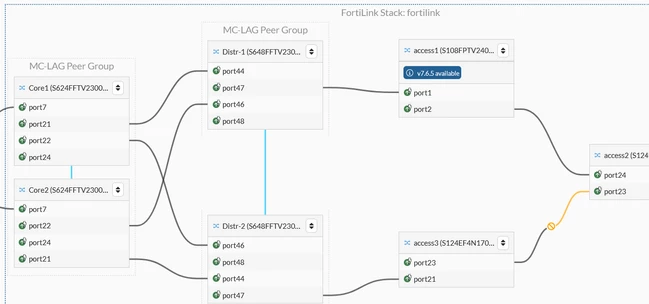

| Solution | Consider FortiLink 802.3ad aggregate interface connected directly to FortiSwitches.

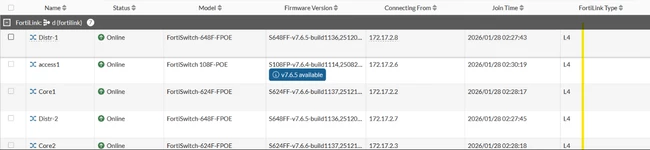

Under FortiGate GUI -> Managed FortiSwitches -> List View -> FortiLink Type Column shows as L4 by default.

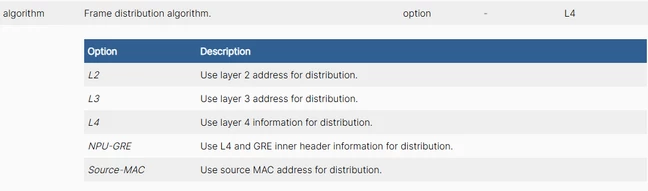

L4 refers to the Frame Distribution/Hashing Algorithm used in FortiLink 802.3ad aggregate interface.
FGT# # diagnose netlink aggregate list |
