Technical Tip: Configuring uplinks for MCLAG-ICL pair in L3 FortiSwitch deployment

  • October 20, 2025
  • 0 replies
  • 759 views
Description This article describes the trunk configuration required on FortiSwitch uplinks when deployed as an MCLAG-ICL pair and connecting to dual routers or firewalls in an L3 topology.
Scope FortiSwitch v7.4, v7.6.
Solution

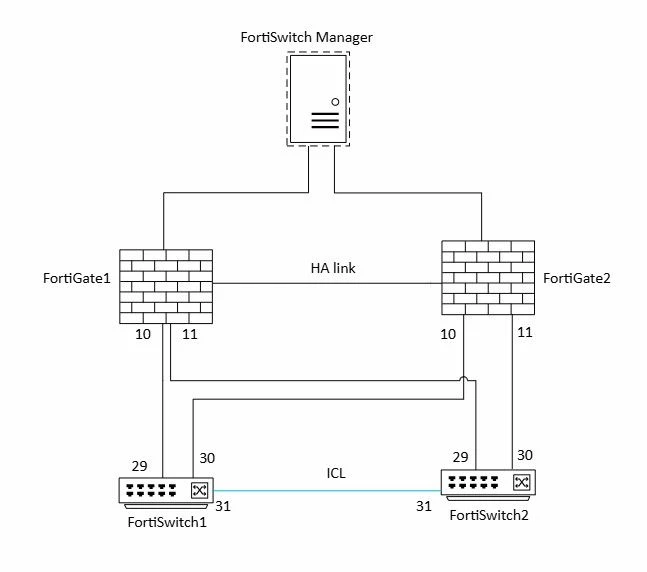

Topology Overview:



  • FortiSwitch is managed by FortiSwitch Manager over L3.

  • FortiGate operates as the router between FortiSwitch and FortiSwitch Manager.

  • FortiSwitch devices are deployed in an MCLAG-ICL pair.

  • In a FortiGate HA Active-Passive setup, separate uplink trunks are required from FortiSwitch to each FortiGate.

  • For background on understanding FortiSwitch over L3, refer to: fortilink-mode-over-a-layer-3-network

Configuration when FortiGate HA (Active-Passive) is used:

In this setup, each FortiSwitch connects separately to each FortiGate.

config switch trunk
    edit "FGT01"
        set auto-isl 1
        set mclag enable
        set static-isl enable
        set members "port29"
    next
    edit "FGT02"
        set auto-isl 1
        set mclag enable
        set static-isl enable
        set members "port30"
    next
   edit "_FlInK1_ICL0_"
        set mode lacp-active
        set auto-isl 1
        set mclag-icl enable
        set members "port31"
    next
end

Here:
  • FGT01 -> uplink to FortiGate1
  • FGT02 -> uplink to FortiGate 2
_FlInK1_ICL0_ -> automatically formed ICL trunk using the 'Transitioning from a FortiLink split interface to a FortiLink MCLAG' LLDP profile:

Configuration when upstream devices operate as a single logical system:

If the upstream devices function as a single logical system (for example, load-balanced firewalls, routers, or Cisco VPC pair), a single trunk can be configured on FortiSwitch.

config switch trunk
    edit "Uplink"
        set auto-isl 1
        set mclag enable
        set static-isl enable
        set members "port29" "port30"
    next
   edit "_FlInK1_ICL0_"
        set mode lacp-active
        set auto-isl 1
        set mclag-icl enable
        set members "port31"
    next
end

Note: Uplink represents the aggregated trunk to the upstream router/firewall/load balancer.
Use this configuration only when the upstream devices forward traffic as a single logical system.
