Technical Tip: Configuring loop guard, BPDU guard, root guard on managed FortiSwitches from FortiGate GUI
| Description | This article describes how to configure loop guard, BPDU guard, and root guard on multiple managed FortiSwitches, multiple ports from the FortiGate GUI. |
| Scope | Managed FortiSwitches, FortiGate, v7.4.x and above. |
| Solution | Refer to the link below to configure the settings from FortiGate CLI: Configuring STP settings

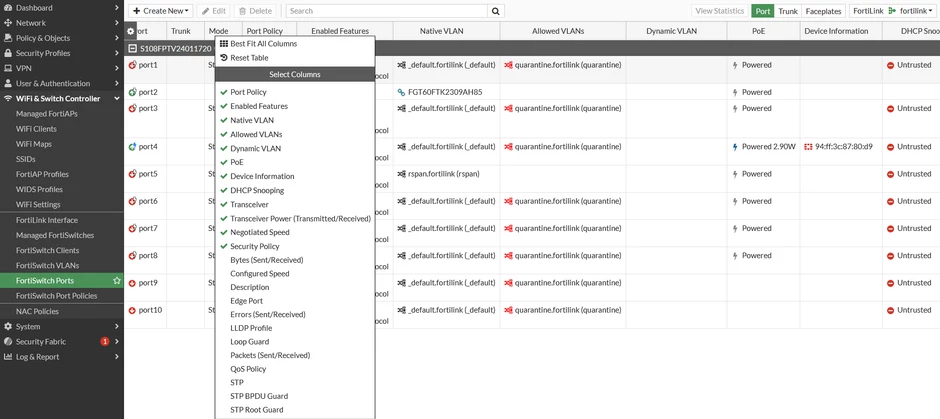

To configure the same from FortiGate GUI, navigate to WiFi & Switch Controller -> FortiSwitch Ports, 'Right-click' on the columns, select the required columns and select 'Apply'.

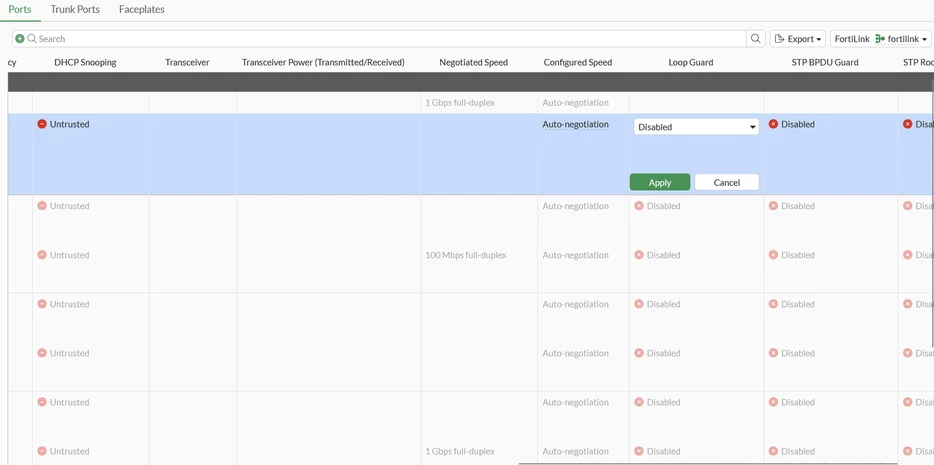

Configure the required configurations by using the Ctrl or Shift key and selecting multiple ports.
|
