This site is not secure

Question

Dear Concern,

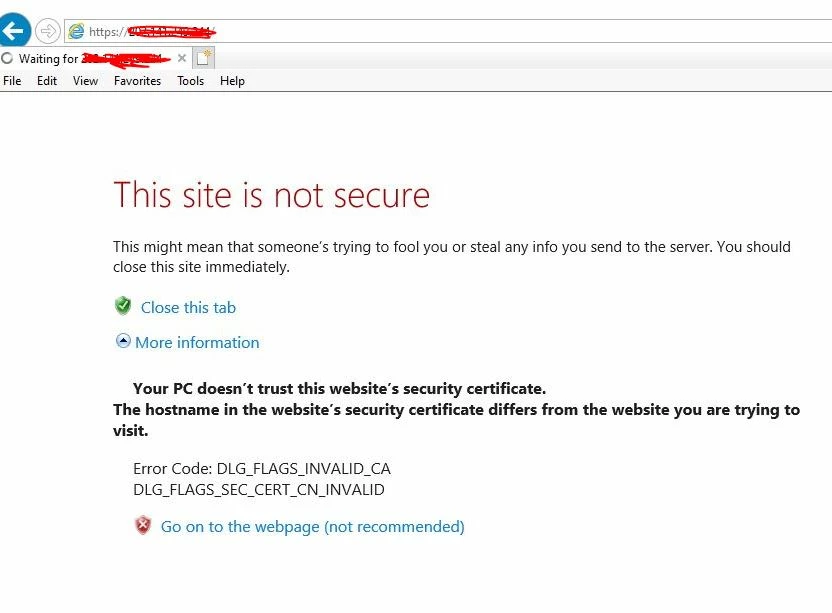

I am facing this errror "This Site is not secure" when accessing, capture is attached. I have a fortiGate Firewall and a FortiWeb firewall and the server behind the fortiWeb. I want to configure fortiweb as a reverse proxy mode. when i had done the configuration like virtual ip, server pool, server policy so after when access the server via public ip so i received this error.

Let me explain you the connectivity.

I have an internet connection which is terminate on fortigate and I have another Public IP for VIP configuration so I configure the VIP to map Public to Private IP ( which is Virtual IP Address for accessing the server.). FortiWeb is behind the FortiGate firewall and fortiweb has configured a server policy which is virtual IP map on Actual server IP as you know Reverse Proxy mode. User's request from internet is reachable to the server the this page can't go forward. can you help me that how to create Certificate and resolve the issue.

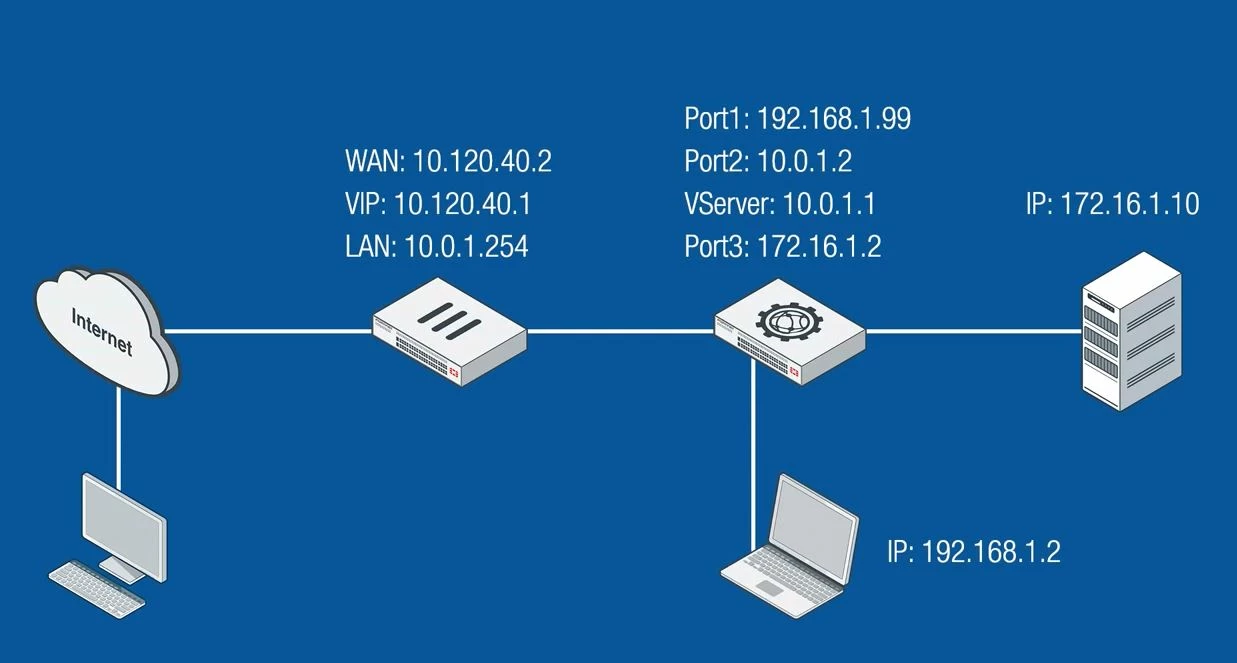

For your reference I am using this scenario as it is.

mturic · Answer

Hi,

it seems like there is an issue with the certificate you are using here. First guess would be that the root CA that issued that certificate is not trusted from your PC.
If you are not using a certificate issued by a public CA, you would need to import your CA certificate into your workstation's Trusted Root Certification Authorities.

Additionally, since you are using FortiWeb as a reverse proxy, you would probably need to import the server certificate and root CA certificate into the FortiWeb.

You can check this Admin guide part for further info:
https://docs.fortinet.com/document/fortiweb/7.0.1/administration-guide/595664/how-to-offload-or-inspect-https
