FortiSOAR backup and restore: what are the best practices

Adding Further: The backed-up file will be saved on some NFS drive in the Data Storage Nodes. In case of the disaster, the latest backed-up files can be retrieved from the Data Storage and restore the operation of the FortiSOAR with minimum downtime.

FortiSOAR

Hello,

For a deeper understanding of the backup-restore process, please refer to the documentation.
You can find detailed steps at this link: https://docs.fortinet.com/document/fortisoar/7.5.0/administration-guide/804260/backing-up-and-restoring-fortisoar#/document/fortisoar/7.5.0/administration-guide/804260/backing-up-and-restoring-fortisoar#Backing_up_and_Restoring_FortiSOAR

Before proceeding with the backup, ensure the following:
1. Confirm that no playbook is running
2. Stop data ingestion and schedules

As you are planning to use the NFS, in the csadm backup cmd provides the path of the mount directory, so the backup file gets created to the mounted NFS

Hello  @MuhammadFaruqi1 ,

As per your requirement here are the suggestions

• Create a CRON job to perform backup
• Take full backup ( configuration files, MMD, views and data ) with command #  csadm db --backup and Only configuration backup (configuration files, MMD and views backup) with command # csadm db --backup-config
• Full backup should be taken only once per day as performing backup may cause performance issue
• Configuration backup can be taken any number of times in a day

We also recommend taking snapshot periodically. And if system is ESXI VM number of snapshot should be not more than 2.

Hi Experts,

As per the official documentation shared in above replies, it states that:

"Optionally, you can specify the --exclude-workflow option to exclude all the "Executed Playbook Logs" and the --exclude-audit option to exclude all the "Executed Audit Logs" from the backup. Executed playbook and audit logs are primarily meant for debugging so they are not a very critical component to be backed up. However, they constitute a major part of the database size, so excluding them from the backup reduces time and space needed for the backup. For example, to exclude all the "Executed Playbook Logs" from the backup, type the command as follows:
# csadm db --backup [<backup_dir_path>] --exclude-workflow

Now if I want to exclude workflow logs and audit logs in the same command, how can I do this?

For example: Can I write below command to exclude workflow and audit logs:

# csadm db --backup [<backup_dir_path>] --exclude-workflow; --exclude-audit

Secondly, I would like to know this if I am only keeping the backup file that is being generated using the command # csadm db --backup, then the generated backup also contains the configuration backup as well? I mean, if I restore this backup, the data and the configuration will be restored on the FSR?

If not, do we need to separately run the command # csadm db --backup-config for configuration backup?

Regards,

MFaruqi

Hi,

To use both options, use the below CLI:

#csadm db --backup BackupDirectoryPath --exclude-workflow --exclude-audit

This command will take the backup of your configuration files along with DB

If you only want to take a backup of the configurations file then only take a backup using CLI   #csadm db --backup-config

Hi,

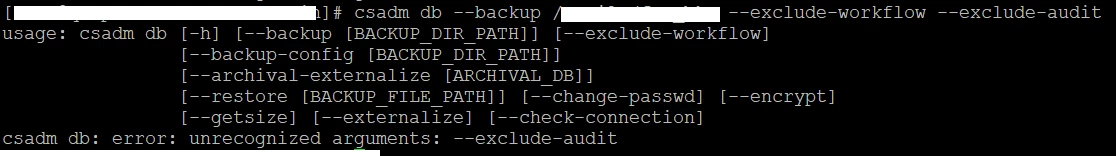

the command: #csadm db --backup BackupDirectoryPath --exclude-workflow --exclude-audit didnt work for me. I changed the BackupDirectoryPath with the actual directory path in my system. Screen shot is attached for your reference. Kindly suggest further, I shall be extremely grateful.
