Technical Tip: How to unmask Elasticsearch process on FortiSOAR node

In certain cases, where FortiSOAR is deployed and installed on low resources in a VM, such as the below:

• Less than 4vCPU.
• Less than 16GB RAM.
• Low Storage hard disk.

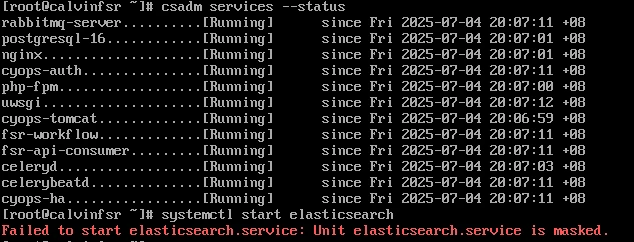

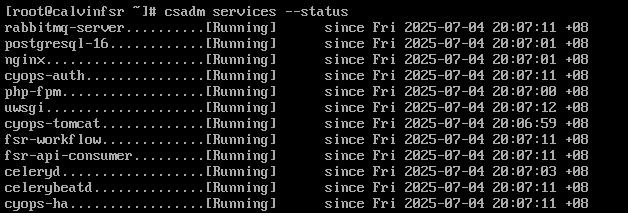

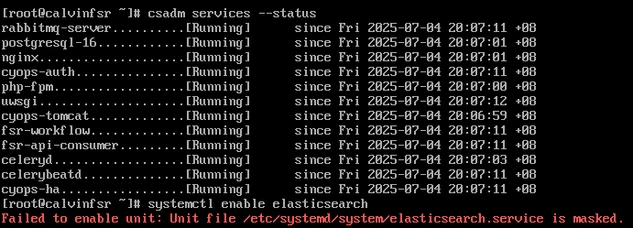

In /opt/cyops/scripts/config-vm.sh , the Elasticsearch process will be masked. Thus, unable to see the status of Elasticsearch process in:

# csadm services --status

To safely unmask the Elasticsearch process, run the following commands on the FortiSOAR node backend SSH.

# systemctl unmask elasticsearch

# systemctl enable elasticsearch

# systemctl start elasticsearch

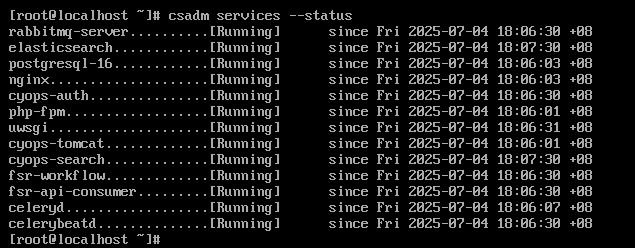

Now the Elasticsearch process is safely unmasked and visible in '# csadm services --status'.

Note:

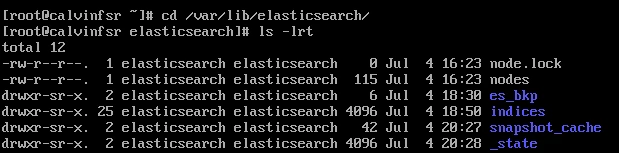

Check for indices folder appearing in '/var/lib/elasticsearch'.

If there are no indices appearing, reach out to FortiSOAR support for further troubleshooting.
