Technical Tip: Create an API Call using Utilities Connector to list all values of a picklist

Description

This article describes how to create an API Call using Utilities Connector to list all values of a picklist.

Scope

FortiSOAR v7.

Solution

Sample output: System Picklist AlertState should list all the values New, Detail Extracted, Indicator Extracted, Similar Alerts Correlated, Ready to Investigate, and SLA Set.

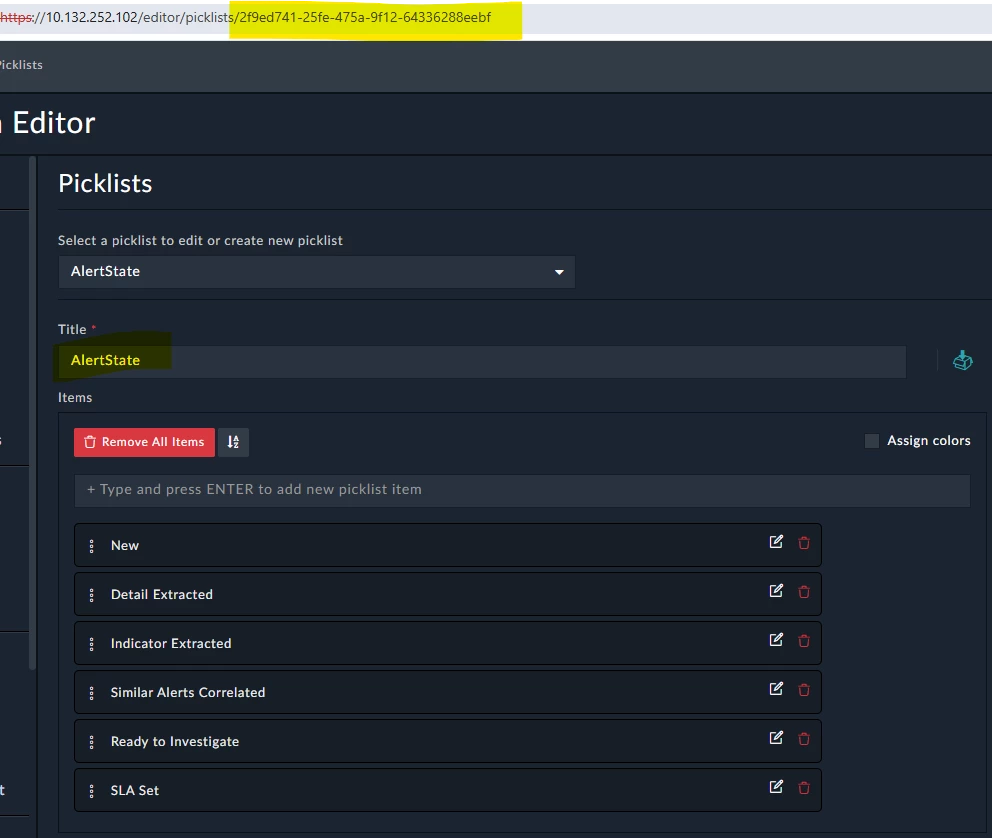

Note down the picklist IRI:

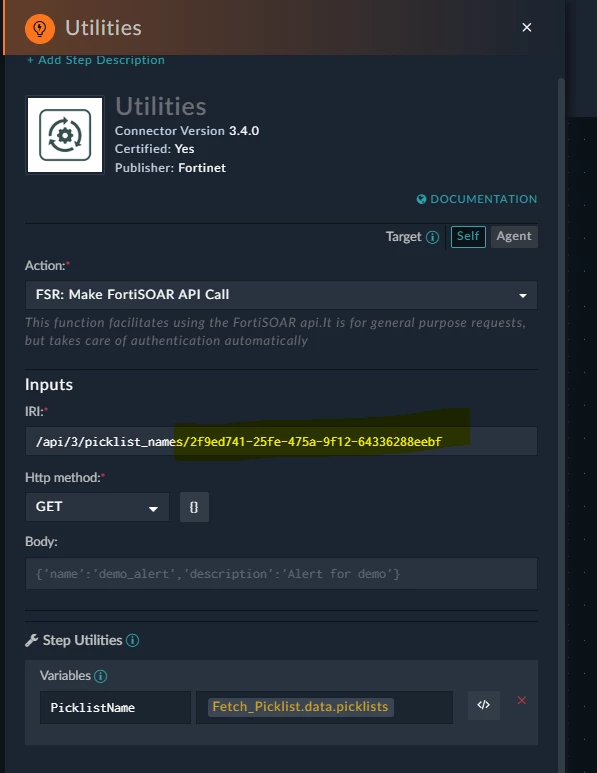

1. Create a playbook with  2 steps mainly: Under Utilities ->  Action - FSR: Make FortiSOAR API Call.

Inputs: /api/3/picklist_names/picklist-iri

HTTP Method: GET

Step Utilites: PicklistName - {{vars.steps.Fetch_Picklist.data.picklists}}

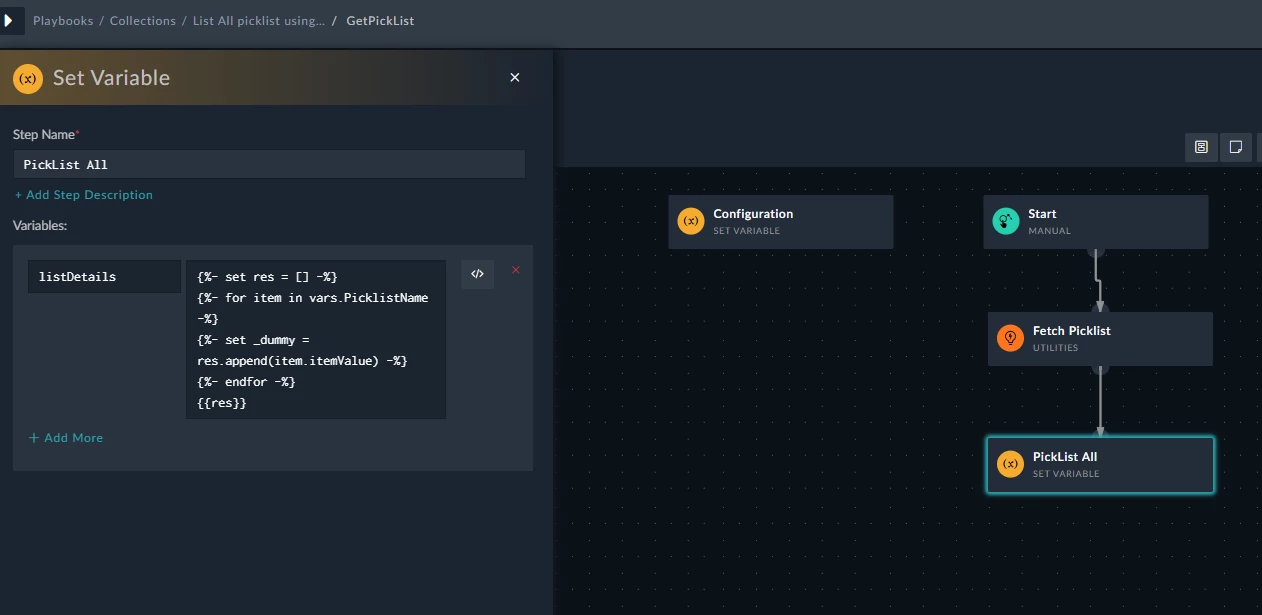

2. Set Variable 'listDetails' with below for loop:

{%- set res = [] -%}
{%- for item in vars.PicklistName -%}
{%- set _dummy = res.append(item.itemValue) -%}
{%- endfor -%}
{{res}}

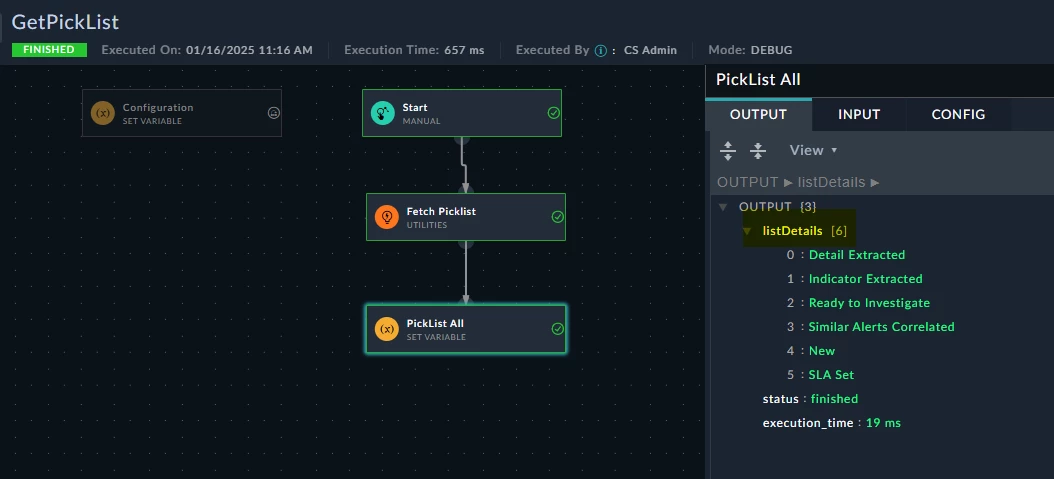

3. Save and run the playbook, now the output will list all the picklist values.

It is possible to find attached, the playbook 'Get_Picklist_Values.json' for reference.
