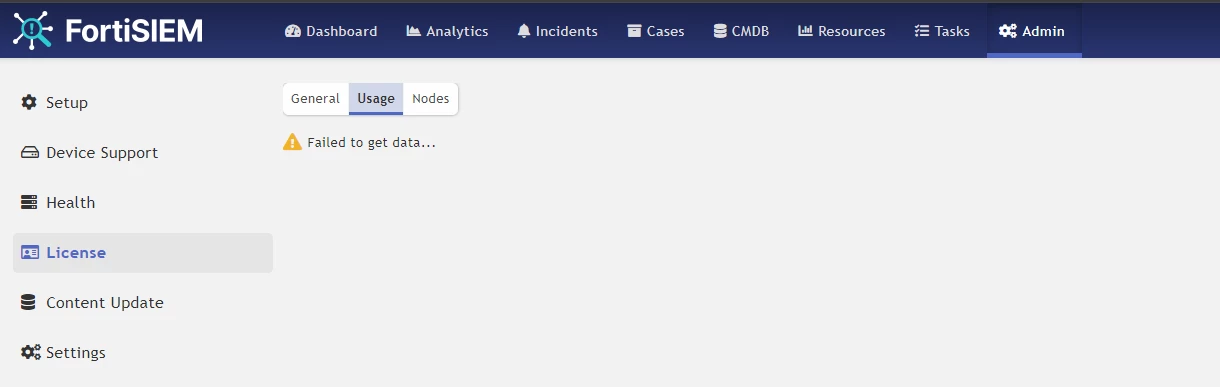

| Solution | After some migration versions from v5.4 to 7.2 for example, it is possible that page Admin-> License -> Usage does not load and the web browser is showing an error 'Failed to get data':
This is caused by new FortiSIEM groups that are missing in CMDB-> Devices. - Check FortiSIEM groups in CMDB.
Go to CMDB -> Devices -> FortiSIEM, there are the 4 groups: - FortiSIEM SUPER.
- FortiSIEM Worker.
- FortiSIEM Collector.
- FortiSIEM Manager.
It is also possible to check from the super CLI as root with the following commands: psql -U phoenix phoenixdb -c "select * from ph_group where natural_id='PH_SYS_DEVICE_FSM'" psql -U phoenix phoenixdb -c "select * from ph_group where parent_id in (select id from ph_group where natural_id='PH_SYS_DEVICE_FSM')" - Create missing groups.
If unable to find it or the query result is empty, follow the following steps from super CLI as root to create it: LAST_ID=`psql -U phoenix phoenixdb -tc "select id from ph_group order by id desc limit 1;"` echo $LAST_ID
NEW_ID=$(( $LAST_ID + 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group (id,creation_time,cust_org_id,entity_version,last_modified_time,natural_id,owner_id,description,display_name,display_order,name,type,value_type,parent_id,top_group,collector_id,group_config,creation_type,value_pattern) VALUES (${NEW_ID},1724835189529,0,0,1724835189529,'PH_SYS_DEVICE_FSM',0,NULL,'FortiSIEM',3,'PH_SYS_DEVICE_FSM',2,3,NULL,'f',NULL,NULL,0,0);"
PARENT_ID=$NEW_ID
NEW_ID=$(( $NEW_ID+ 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group (id,creation_time,cust_org_id,entity_version,last_modified_time,natural_id,owner_id,description,display_name,display_order,name,type,value_type,parent_id,top_group,collector_id,group_config,creation_type,value_pattern) VALUES (${NEW_ID},1724835189683,0,0,1724835189683,'PH_SYS_DEVICE_FSM_SUPER',0,NULL,'FortiSIEMSuper',1,'PH_SYS_DEVICE_FSM_SUPER',2,3,${PARENT_ID},'f',NULL,NULL,0,0);"
NEW_ID=$(( $NEW_ID+ 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group (id,creation_time,cust_org_id,entity_version,last_modified_time,natural_id,owner_id,description,display_name,display_order,name,type,value_type,parent_id,top_group,collector_id,group_config,creation_type,value_pattern) VALUES (${NEW_ID},1724835189689,0,0,1724835189689,'PH_SYS_DEVICE_FSM_WORKER',0,NULL,'FortiSIEMWorker',2,'PH_SYS_DEVICE_FSM_WORKER',2,3,${PARENT_ID},'f',NULL,NULL,0,0);"
NEW_ID=$(( $NEW_ID+ 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group (id,creation_time,cust_org_id,entity_version,last_modified_time,natural_id,owner_id,description,display_name,display_order,name,type,value_type,parent_id,top_group,collector_id,group_config,creation_type,value_pattern) VALUES (${NEW_ID},1724835189693,0,0,1724835189693,'PH_SYS_DEVICE_FSM_COLLECTOR',0,NULL,'FortiSIEMCollector',3,'PH_SYS_DEVICE_FSM_COLLECTOR',2,3,${PARENT_ID},'f',NULL,NULL,0,0);"
NEW_ID=$(( $NEW_ID+ 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group (id,creation_time,cust_org_id,entity_version,last_modified_time,natural_id,owner_id,description,display_name,display_order,name,type,value_type,parent_id,top_group,collector_id,group_config,creation_type,value_pattern) VALUES (${NEW_ID},1724835189698,0,0,1724835189698,'PH_SYS_DEVICE_FSM_MGR',0,NULL,'FortiSIEMManager',4,'PH_SYS_DEVICE_FSM_MGR',2,3,${PARENT_ID},'f',NULL,NULL,0,0);" From now on, groups are created in the CMDB but need to be populated. - Note IDs from FortiSIEM nodes.
Find the FortiSIEM devices and note the IDs of the Supernode, Worker node, and Collector node from the following command: psql -U phoenix phoenixdb -c "select id,cust_org_id,owner_id,access_ip,name,description,collector_id from ph_device where device_type_id in (select id from ph_device_type where model = 'FortiSIEM');" - Populate the device to the right group.
- To populate the SUPER group with super device:
ITEM_ID=<type_id_of_super> SUPER_GROUP_ID=`psql -U phoenix phoenixdb -tc "select id from ph_group where natural_id='PH_SYS_DEVICE_FSM_SUPER' order by id desc limit 1;"`
echo $SUPER_GROUP_ID
LAST_ID=`psql -U phoenix phoenixdb -tc "select id from ph_group_item order by id desc limit 1;"`
NEW_ID=$(( $LAST_ID + 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group_item (id,creation_time,cust_org_id,last_modified_time,owner_id,item_id,group_id) VALUES (${NEW_ID},1724835189698,1,1724835189698,0,${ITEM_ID},${SUPER_GROUP_ID});" - To populate the WORKER group with worker device:
ITEM_ID=<type_id_of_worker> WORKER_GROUP_ID=`psql -U phoenix phoenixdb -tc "select id from ph_group where natural_id='PH_SYS_DEVICE_FSM_WORKER' order by id desc limit 1;"`
echo $WORKER_GROUP_ID
LAST_ID=`psql -U phoenix phoenixdb -tc "select id from ph_group_item order by id desc limit 1;"`
NEW_ID=$(( $LAST_ID + 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group_item (id,creation_time,cust_org_id,last_modified_time,owner_id,item_id,group_id) VALUES (${NEW_ID},1724835189698,1,1724835189698,0,${ITEM_ID},${WORKER_GROUP_ID});" - To populate the COLLECTOR group with a collector device:
ITEM_ID=<type_id_of_collector> COLLECTOR_GROUP_ID=`psql -U phoenix phoenixdb -tc "select id from ph_group where natural_id='PH_SYS_DEVICE_FSM_COLLECTOR' order by id desc limit 1;"`
echo $COLLECTOR_GROUP_ID
LAST_ID=`psql -U phoenix phoenixdb -tc "select id from ph_group_item order by id desc limit 1;"`
NEW_ID=$(( $LAST_ID + 1 ))
psql -U phoenix phoenixdb -c "insert into ph_group_item (id,creation_time,cust_org_id,last_modified_time,owner_id,item_id,group_id) VALUES (${NEW_ID},1724835189698,1,1724835189698,0,${ITEM_ID},${COLLECTOR_GROUP_ID});" Now the 'License usage' page should be displaying the EPS usage. |
