Technical Note: [Accelops KB] How to configure Event DB backup with Remote Share
Description
Summary of Topic
When creating event db backup, may be a possibility that the assumption is to have the web UI create a mount. This is not true, when creating a backup location for the event DB, AO UI will assume that the location configured should be a local directory.
You may receive an error similar to this
Jan 18 14:56:26 james-sp phDataManager[27030]: [PH_UNABLE_ACCESS_DIR]:[eventSeverity]=PHL_ERROR,[procName]=phDataManager,[fileName]=DiskUChecker.cpp,[lineNumber]=1768,[dirName]=/172.16.20.152/nfs_test_mount/,[phLogDetail]=Unable to access directory
Steps for event DB backup
- Create a share on a remote device
- Mount the share on AO
- Log into web GUI of AO

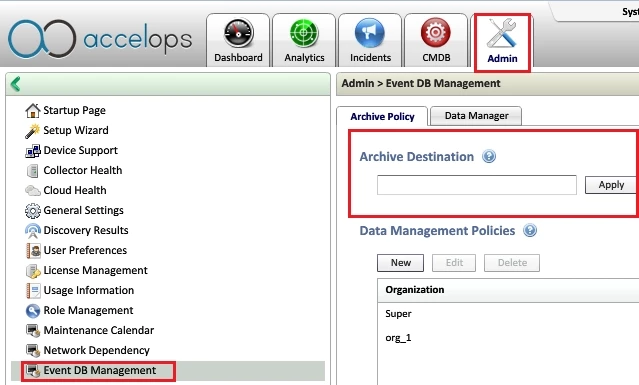

- Click Admin >> Event DB management
- fill in the local destination under Archive Destination
- Click Apply
Additional Information
How to create an NFS sharehttp://www.computernetworkingnotes.com/network-administrations/nfs-server.html
Version Application
All
