Understanding /dev/mapper/rl-root storage FortiSIEM

  • June 17, 2024
  • 2 replies
  • 8047 views

Hello guys, please guide me to understand this little thing.



This is a supervisor all in one deployment with Click house DB (FSM 7.1.X running on Rocky Linux)

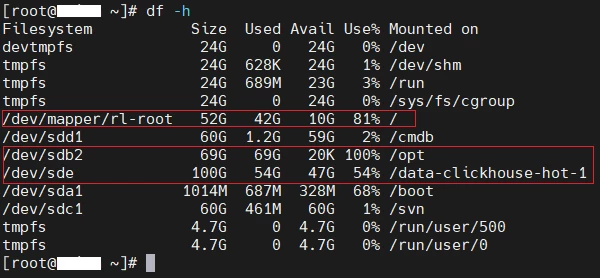

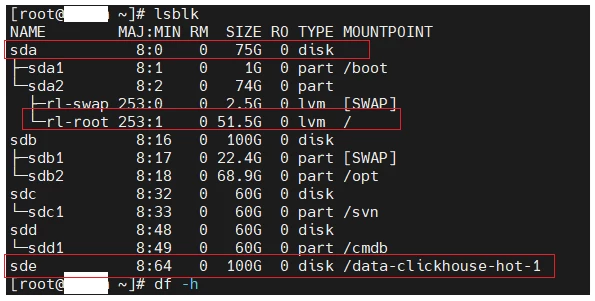

As you can see, my /sda partition has 75G, (at first it was 25 GB)




The /dev/mapper/rl-root inside /dev/sda is eating quickly the storage that I assign to it. Why is this happening? is supposed that logs are forwarded to Click house DB in /dev/sde partition tand this should be the more used storage, also /opt is running out of storage.






This is the second time that I resize the /dev/mapper/rl-root partition.



Thank you!

2 replies

AEK
SuperUser
AEK
SuperUser
June 17, 2024

Hi @gwaihir

You can use du -sh /* command to try find what is consuming your storage.

AEK
    gwaihir
    gwaihirAuthor
    Explorer II
    June 17, 2024

    Hi @AEK thank you for your reply.





    [root@XXX ~]# du -sh /opt/* 2>/dev/null |  sort -n 0       /opt/db-backup 0       /opt/glassfish 0       /opt/Java 0       /opt/openjdk 0       /opt/vmware 1.1G    /opt/glassfish5 1.2G    /opt/jsreport 13M     /opt/zookeeper.tar.gz 31M     /opt/rpm 40M     /opt/fortiinsight-ai 40M     /opt/zookeeper 48M     /opt/exporter 63M     /opt/archive 64G     /opt/phoenix 89M     /opt/selenium 399M    /opt/clickhouse 417M    /opt/node-rest-service 727M    /opt/charting  [root@XXX ~]# du -sh /* 2>/dev/null |  sort -n 0       /bin 0       /lib 0       /lib64 0       /media 0       /mnt 0       /pbin 0       /proc 0       /query 0       /querywkr 0       /sbin 0       /srv 0       /sys 2.4G    /run 3.3G    /fsmopt.tar.gz 4.0K    /platform-info 4.0K    /svn.tar.gz 6.1G    /usr 8.7M    /root 12K     /redis.log 24K     /home 27M     /etc 32G     /var 53G     /data-clickhouse-hot-1 68G     /opt 165M    /data 253M    /tmp 332K    /svn 432K    /dev 648M    /boot 726M    /cmdb





    But, really I want to understand why this is happening, if /dev/mapper/rl-root is linked to /opt and eat storage quickly, seems that I'm missing something abot initial sizing.



    UPDATE: (inside /opt/phoenix/cache), can this be safely removed?

    587M    /opt/phoenix/cache/_MEIfjDpil 587M    /opt/phoenix/cache/_MEIFsVx3B 587M    /opt/phoenix/cache/_MEIg0X2zL 587M    /opt/phoenix/cache/_MEIgHX101 587M    /opt/phoenix/cache/_MEIgjsjuq 587M    /opt/phoenix/cache/_MEIIuHILc 587M    /opt/phoenix/cache/_MEIj6QqhT 587M    /opt/phoenix/cache/_MEIJRt7Wd 587M    /opt/phoenix/cache/_MEIjxxg3D 587M    /opt/phoenix/cache/_MEILNdpfo 587M    /opt/phoenix/cache/_MEIMDCga2 587M    /opt/phoenix/cache/_MEIMFFd1S 587M    /opt/phoenix/cache/_MEImhGWaQ 587M    /opt/phoenix/cache/_MEIn4b2fh 587M    /opt/phoenix/cache/_MEINe9eRD 587M    /opt/phoenix/cache/_MEInpqHtW 587M    /opt/phoenix/cache/_MEIoM0HCw 587M    /opt/phoenix/cache/_MEIp2q0dp .... a lot  ...





    Thank you!

    Richie_C
    Staff
    Richie_C
    Staff
    July 17, 2024

    Hi @gwaihir



    This does not look like normal behavior. My recommendation would be to raise a TAC case for this. The following link provides some useful information about the output required by TAC:



    https://community.fortinet.com/t5/FortiSIEM/Technical-Tip-How-to-retrieve-logs-from-FortiSIEM-VA-and-deliver/ta-p/192568



    I hope it helps.

    Hugues1
    Hugues1
    New Member
    November 12, 2024

    Hi @gwaihir

    I have the same issue with my FortiSIEM. The file /dev/mapper/rl-root is up to 71%.



    How can i purge it ? With wich command ?  Please i'm waiting your feedback.



    Thank you.

    adem_netsys
    adem_netsys
    Explorer III
    November 13, 2024

    Hi @Hugues1,

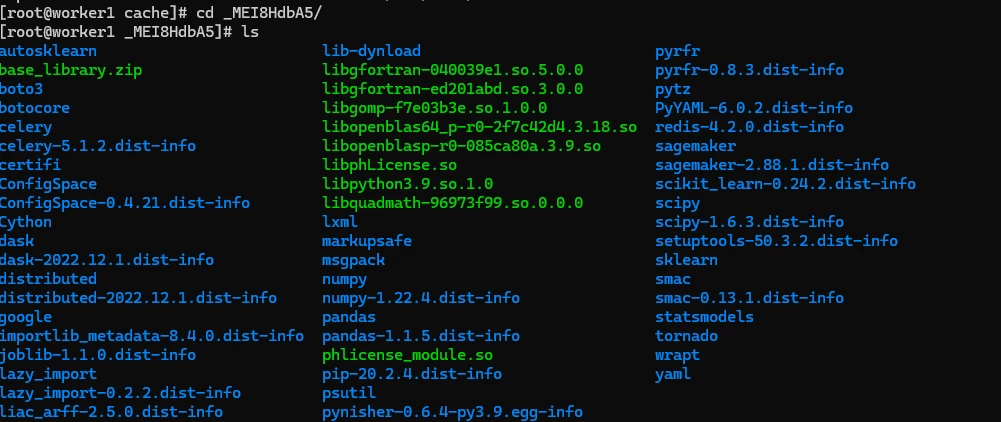

    @gwaihir  has implemented a method for this, but I don't know much about the importance of the contents of the file with the *M prefix in the relevant directory when I examine it in my environment. I've shared it as an attachment, would cleaning it up have any negative consequences?Ekran görüntüsü 2024-11-13 132832.png





      gwaihir
      gwaihirAuthor
      Explorer II
      November 13, 2024

      Hello @Hugues1 and @adem_netsys greetings.



      Until now, I keep deleting those *M files, and the FSIEM works perfectly. I don't know if this will cause problems in the future.



      Also, I noted that the version of FortiSIEM was causing many crash that were store in /var/crash and was consuming a huge space, I deleted this also. (with previous backup)



      Hope this would give you some help.



      Regards.
