Openshift parser on FortiSIEM

  • November 12, 2025
  • 3 replies
  • 772 views

Hello,
Kindly assist me to develop a parser for the following Openshift logs. I am fairly new to FortiSIEM, so I am struggling to accomplish this.

The following log is what I'm receiving on FortiSIEM from Openshift:
<46>1 2025-10-26T12:49:43.522Z node01.internal.local redgreen-service-deployment-857cb4bb8d-l5v8r_blueyellow-service magenta-7f2a1c9f container - {"@timestamp":"2025-10-26T12:49:43.522728353Z","hostname":"node01.internal.local","kubernetes":{"annotations":{"k8s.v1.cni.cncf.io/network-status":"[{\n "name": "orangeviolet-net",\n "interface": "eth0",\n "ips": [\n "192.168.42.100"\n ],\n "default": true,\n "dns": {}\n}]","kubectl.kubernetes.io/restartedAt":"2025-09-22T01:16:48+03:00","openshift.io/scc":"anyuid","openshift.openshift.io/restartedAt":"2025-10-06T19:57:19.173Z"},"container_id":"cri-o://pinkteal-7f3c2d1a9b8c4e00a1234b567c89deffedcba123","container_image":"registry.internal.local/colors/redgreen-service:prod-blueyellow-20250916120214","container_image_id":"registry.internal.local/colors/redgreen-service@sha256:cyanmagenta-7ea6a080a9b23d6d28cd63deea38a2df5d3d4297365f76bcaa1fc0af96edf6e8","container_name":"redgreen-service","labels":{"app":"redgreen-service","pod-template-hash":"857cb4bb8d"},"namespace_id":"rainbow-1a2b3c4d-5e6f-7g8h-9i0j-colormix1234","namespace_labels":{"kubernetes_io_metadata_name":"colors","kustomize_toolkit_fluxcd_io_name":"tenants","kustomize_toolkit_fluxcd_io_namespace":"flux-system","pod-security_kubernetes_io_audit":"privileged","pod-security_kubernetes_io_audit-version":"v1.24","pod-security_kubernetes_io_warn":"privileged","pod-security_kubernetes_io_warn-version":"v1.24","toolkit_fluxcd_io_tenant":"artist-team"},"namespace_name":"colors","pod_id":"ultraviolet-f7c2d11a-0e4f-4b6d-8888-neon1234","pod_ip":"192.168.42.100","pod_name":"redgreen-service-deployment-857cb4bb8d-l5v8r","pod_owner":"ReplicaSet/redgreen-service-deployment-857cb4bb8d"},"level":"info","log_source":"container","log_type":"application","message":"2025-10-26 15:49:43 | Severity=INFO | MicroService=redgreen-service | TransactionID=rainbow-89234 | Transaction=null | Process=POST | ProcessDuration=116 | SourceSystem=https://service.internal/api/v1/colors/sync | TargetSystem=PaletteRegistry | ResponseCode=200 | Request=null | RequestXml=null | Response=null | ResponseXml=null | ResponseMsg= ","openshift":{"cluster_id":"prism-7766abcd-1122-3344-5566-colorburst99","sequence":1761482983532549857}}

By following basic tutorials, this is the starting point I was able to come-up with:
<parsingInstructions>
<collectAndSetAttrByRegex src="$_rawmsg">
<regex><![CDATA[<:gPatSyslogPRI>\d+\s+<_year:gPatYear>-<_mon:gPatMonNum>-<_day:gPatDay>\w<_time:gPatTime>\.\w+\s+<_body:gPatMesgBody>]]></regex>
</collectAndSetAttrByRegex>
</parsingInstructions>

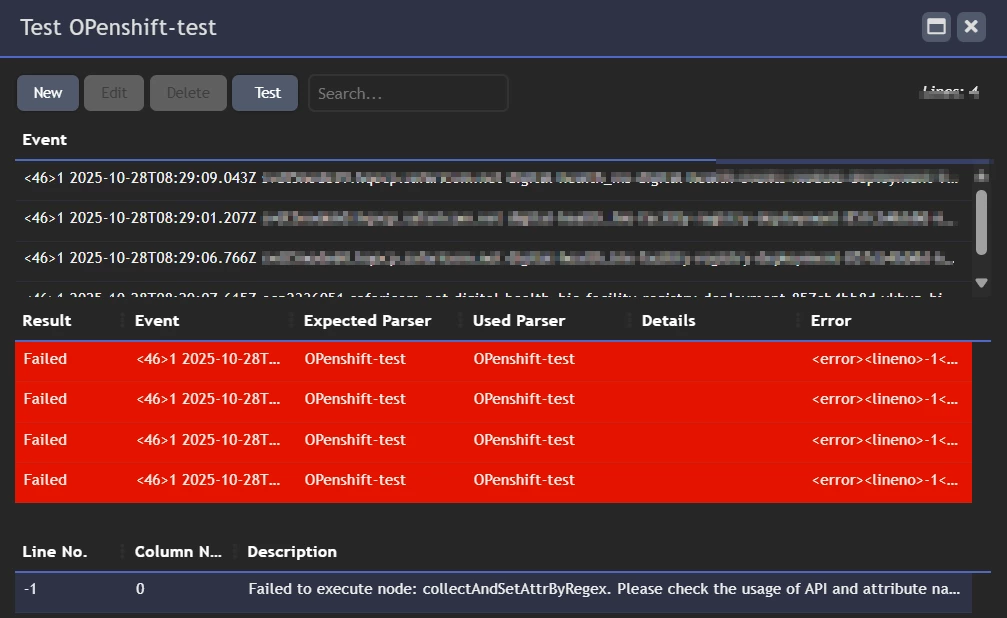

Testing this fails.
Testing OpenShift parser.png



Please assist me to create a parser for the Openshift logs.

FortiSIEM @Jean-Philippe_P @lbahtarliev

Best answer by cdurkin_FTNT

 Pantashaa



As Christian said the "_message" above variable will contain that data .. you can add a second function to read that variable later in the parser and extract the needed data.



<collectFieldsByKeyValuePair kvsep="=" sep=" " src="$_message">   <attrKeyMap attr="_Severity" key="Severity"/>   <attrKeyMap attr="_MicroService" key="MicroService"/>   <attrKeyMap attr="_TransactionID" key="TransactionID"/>   <attrKeyMap attr="_Transaction" key="Transaction"/>   <attrKeyMap attr="_Process" key="Process"/>   <attrKeyMap attr="_ProcessDuration" key="ProcessDuration"/>   <attrKeyMap attr="_SourceSystem" key="SourceSystem"/>   <attrKeyMap attr="_TargetSystem" key="TargetSystem"/>   <attrKeyMap attr="_ResponseCode" key="ResponseCode"/>   <attrKeyMap attr="_Request" key="Request"/>   <attrKeyMap attr="_RequestXml" key="RequestXml"/>   <attrKeyMap attr="_Response" key="Response"/>   <attrKeyMap attr="_ResponseXml" key="ResponseXml"/>   <attrKeyMap attr="_ResponseMsg" key="ResponseMsg"/> </collectFieldsByKeyValuePair>


Again replace the attr"_abc" values above with the correct attribute names as needed.

3 replies

cdurkin_FTNT
Staff
cdurkin_FTNT
Staff
November 12, 2025

Try this ... its hard to build a parser and event format recognizer from one single event sample.

It should work for the above ... but I think it will need work when additional samples are provided.

You would still need to map in the collectAndSetAttrByJSON the relevant attributes for each key.



<eventFormatRecognizer><![CDATA[redgreen-service-deployment-]]></eventFormatRecognizer>  <parsingInstructions>  <collectAndSetAttrByRegex src="$_rawmsg">   <regex><![CDATA[<_year:gPatYear>-<_mon:gPatMon>-<_day:gPatDay>T<_time:gPatTimeMSec><_tz:gPatTimeZone>\s+<reptDevName:gPatStr>\s+[^ ]+\s+[^ ]+\s+container\s+-\s+<_json:gPatMesgBody>]]></regex> </collectAndSetAttrByRegex> <setEventAttribute attr="deviceTime">toDateTime($_mon, $_day, $_year, $_time, $_tz)</setEventAttribute>   <collectAndSetAttrByJSON src="$_json">   <attrKeyMap attr="_@timestamp" key="@timestamp"/>   <attrKeyMap attr="_hostname" key="hostname"/>   <attrKeyMap attr="_io/network-status" key="kubernetes.annotations.k8s\.v1\.cni\.cncf\.io/network-status"/>   <attrKeyMap attr="_io/restartedAt" key="kubernetes.annotations.kubectl\.kubernetes\.io/restartedAt"/>   <attrKeyMap attr="_io/scc" key="kubernetes.annotations.openshift\.io/scc"/>   <attrKeyMap attr="_io/restartedAt" key="kubernetes.annotations.openshift\.openshift\.io/restartedAt"/>   <attrKeyMap attr="_container_id" key="kubernetes.container_id"/>   <attrKeyMap attr="_container_image" key="kubernetes.container_image"/>   <attrKeyMap attr="msg" key="kubernetes.container_image_id"/>   <attrKeyMap attr="_container_name" key="kubernetes.container_name"/>   <attrKeyMap attr="_app" key="kubernetes.labels.app"/>   <attrKeyMap attr="_pod-template-hash" key="kubernetes.labels.pod-template-hash"/>   <attrKeyMap attr="_namespace_id" key="kubernetes.namespace_id"/>   <attrKeyMap attr="_kubernetes_io_metadata_name" key="kubernetes.namespace_labels.kubernetes_io_metadata_name"/>   <attrKeyMap attr="_kustomize_toolkit_fluxcd_io_name" key="kubernetes.namespace_labels.kustomize_toolkit_fluxcd_io_name"/>   <attrKeyMap attr="_kustomize_toolkit_fluxcd_io_namespace" key="kubernetes.namespace_labels.kustomize_toolkit_fluxcd_io_namespace"/>   <attrKeyMap attr="_pod-security_kubernetes_io_audit" key="kubernetes.namespace_labels.pod-security_kubernetes_io_audit"/>   <attrKeyMap attr="_pod-security_kubernetes_io_audit-version" key="kubernetes.namespace_labels.pod-security_kubernetes_io_audit-version"/>   <attrKeyMap attr="_pod-security_kubernetes_io_warn" key="kubernetes.namespace_labels.pod-security_kubernetes_io_warn"/>   <attrKeyMap attr="_pod-security_kubernetes_io_warn-version" key="kubernetes.namespace_labels.pod-security_kubernetes_io_warn-version"/>   <attrKeyMap attr="_toolkit_fluxcd_io_tenant" key="kubernetes.namespace_labels.toolkit_fluxcd_io_tenant"/>   <attrKeyMap attr="_namespace_name" key="kubernetes.namespace_name"/>   <attrKeyMap attr="_pod_id" key="kubernetes.pod_id"/>   <attrKeyMap attr="_pod_ip" key="kubernetes.pod_ip"/>   <attrKeyMap attr="_pod_name" key="kubernetes.pod_name"/>   <attrKeyMap attr="_pod_owner" key="kubernetes.pod_owner"/>   <attrKeyMap attr="_level" key="level"/>   <attrKeyMap attr="_log_source" key="log_source"/>   <attrKeyMap attr="_log_type" key="log_type"/>   <attrKeyMap attr="_message" key="message"/>   <attrKeyMap attr="_cluster_id" key="openshift.cluster_id"/>   <attrKeyMap attr="_sequence" key="openshift.sequence"/> </collectAndSetAttrByJSON>   <setEventAttribute attr="eventType">Openshift-Generic</setEventAttribute> <setEventAttribute attr="eventSeverity">1</setEventAttribute>  </parsingInstructions>


Note.. the following was used as the Test Event

<46>1 2025-10-26T12:49:43.522Z node01.internal.local redgreen-service-deployment-857cb4bb8d-l5v8r_blueyellow-service magenta-7f2a1c9f container - {"@timestamp":"2025-10-26T12:49:43.522728353Z","hostname":"node01.internal.local","kubernetes":{"annotations":{"k8s.v1.cni.cncf.io/network-status":"[{\n  \"name\": \"orangeviolet-net\",\n  \"interface\": \"eth0\",\n  \"ips\": [\n    \"192.168.42.100\"\n  ],\n  \"default\": true,\n  \"dns\": {}\n}]","kubectl.kubernetes.io/restartedAt":"2025-09-22T01:16:48+03:00","openshift.io/scc":"anyuid","openshift.openshift.io/restartedAt":"2025-10-06T19:57:19.173Z"},"container_id":"cri-o://pinkteal-7f3c2d1a9b8c4e00a1234b567c89deffedcba123","container_image":"registry.internal.local/colors/redgreen-service:prod-blueyellow-20250916120214","container_image_id":"registry.internal.local/colors/redgreen-service@sha256:cyanmagenta-7ea6a080a9b23d6d28cd63deea38a2df5d3d4297365f76bcaa1fc0af96edf6e8","container_name":"redgreen-service","labels":{"app":"redgreen-service","pod-template-hash":"857cb4bb8d"},"namespace_id":"rainbow-1a2b3c4d-5e6f-7g8h-9i0j-colormix1234","namespace_labels":{"kubernetes_io_metadata_name":"colors","kustomize_toolkit_fluxcd_io_name":"tenants","kustomize_toolkit_fluxcd_io_namespace":"flux-system","pod-security_kubernetes_io_audit":"privileged","pod-security_kubernetes_io_audit-version":"v1.24","pod-security_kubernetes_io_warn":"privileged","pod-security_kubernetes_io_warn-version":"v1.24","toolkit_fluxcd_io_tenant":"artist-team"},"namespace_name":"colors","pod_id":"ultraviolet-f7c2d11a-0e4f-4b6d-8888-neon1234","pod_ip":"192.168.42.100","pod_name":"redgreen-service-deployment-857cb4bb8d-l5v8r","pod_owner":"ReplicaSet/redgreen-service-deployment-857cb4bb8d"},"level":"info","log_source":"container","log_type":"application","message":"2025-10-26 15:49:43 | Severity=INFO | MicroService=redgreen-service | TransactionID=rainbow-89234 | Transaction=null | Process=POST | ProcessDuration=116 | SourceSystem=https://service.internal/api/v1/colors/sync | TargetSystem=PaletteRegistry | ResponseCode=200 | Request=null | RequestXml=null | Response=null | ResponseXml=null | ResponseMsg= ","openshift":{"cluster_id":"prism-7766abcd-1122-3344-5566-colorburst99","sequence":1761482983532549857}}
    Pantashaa
    PantashaaAuthor
    Visitor III
    November 16, 2025

    Thank you for your response @cdurkin_FTNT  . I have now started mapping the relevant attributes for each key.
    When I run the test, the relaying IP and reporting IP are set to 127.0.0.1. How do I change that?
    I have also mapped the <attrKeyMap attr="srcIpAddr" key="kubernetes.pod_id"/> is that okay? Does it interpret the log correctly?
    Lastly, how do I define the Application-Level Log Fields within the 'message' in the parser?, i.e.

    "2025-10-26 15:49:43 | Severity=INFO | MicroService=redgreen-service | TransactionID=rainbow-89234 | Transaction=null | Process=POST | ProcessDuration=116 | SourceSystem=https://service.internal/api/v1/colors/sync | TargetSystem=PaletteRegistry | ResponseCode=200 | Request=null | RequestXml=null | Response=null | ResponseXml=null | ResponseMsg= ",

    such that I can have the process, the sourceSystem and ResponseCode listed when the log is parsed?
    Thank you for your support.

    Pantashaa
    PantashaaAuthor
    Visitor III
    November 17, 2025

    @cdurkin_FTNT
    @Jean-Philippe_P


    Please please assist.

    Pantashaa
    PantashaaAuthor
    Visitor III
    January 6, 2026

    @Secusaurus @cdurkin_FTNT
    Thank you for all your help. I successfully completed the parser and it has been working well.
