Need to modify Office365Parser-v1.2 to pick up two new fields seeking guidance.

  • January 15, 2025
  • 4 replies
  • 2901 views

Happy New Year,

Couple questions





My goal is to create an alert based on the values in a particular value field, RequestType

the possible values are :"oauth2:authorize" .   or   "login:login". if we find this last one we will create a rule to alert.

My customer is sending logs for parsing by  Office365Parser-v1.2   they want to be alerted if the



sample logs below



Thank you,   Karl Henning





I have removed some stuff to anonymise





[OFFICE365_EVENT_DATA] = {"Actor":[{"ID":"2df6c5b4-66e0-456f-8028-92a389afe2cd","Type":0},{"ID":"stuff ........ClientIP":"2607:fea8:9367:a200:e0d9:d500:edea:22ce","CreationTime":"2024-09-25T13:21:21UTC","DeviceProperties":[{"Name":"OS","Value":"Windows10"},{"Name":"BrowserType","Value":"Chrome"},{"Name":"SessionId","Value":"c774a6fd-4dfc-43c2-9ee5-2f56c2bc2c49"}],"ErrorNumber":"0","ExtendedProperties":[{"Name":"ResultStatusDetail","Value":"Success"},{"Name":"UserAgent","Value":"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/129.0.0.0 Safari/537.36"},{"Name":"UserAuthenticationMethod","Value":"16"},{"Name":"RequestType","Value":"Login:login"}],"Id":"45754924-b5af-41c8-ba86-3c580da68400","InterSystemsId":"7c990d33-8f9a-438b-290a-f008f084bdcc","IntraSystemId":"45754924-b5af-41c8-ba86-3c580da68400","ModifiedProperties":[],"ObjectId":"00000002-0000-0ff1-ce00-000000000000","Operation":"UserLoggedIn","OrganizationId":"c24cf3ff-e1ea-4eee-95be-620e6e5e2136","RecordType":15,"ResultStatus":"Success","ServerHostName":"manage.office.com","SupportTicketId":"","Target":[{"ID":"00000002-0000-0ff1-ce00-000000000000","Type":0}],"TargetContextId":"c24cf3ff-e1ea-4eee-95be-620e6e5e2136","TenantId":"c24cf3ff-e1ea-4eee-95be-620e6e5e2136","UserId":"","UserKey":"2df6c5b4-66e0-456f-8028-92a389afe2cd","UserType":0,"Version":1,"Workload":"AzureActiveDirectory","phCustId":2080} (edited)


MFA Log
[OFFICE365_EVENT_DATA] = {"Actor":[{"ID":"2636c7f5-e63a-4f39-a9de-5c8366c6b56d","Type":0},{"ID":stuff.com","Type":5}],"ActorContextId":"c24cf3ff-..........

{"Name":"DisplayName","Value":"FXNZDZ3"},{"Name":"OS","Value":"Windows10"},{"Name":"BrowserType","Value":"Edge"},{"Name":"IsCompliant","Value":"True"},{"Name":"IsCompliantAndManaged","Value":"True"},{"Name":"TrustType","Value":"1"},{"Name":"SessionId","Value":"715f5ac1-bf84-49a6-8598-086649ce649c"}],"ErrorNumber":"0","ExtendedProperties":[{"Name":"ResultStatusDetail","Value":"Redirect"},{"Name":"UserAgent","Value":"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/129.0.0.0 Safari/537.36 Edg/129.0.0.0"},{"Name":"RequestType","Value":"OAuth2:Authorize"}],"Id":"d8efaa45-dbd8-4450-af6a-cf4c971b6100","InterSystemsId":"cfea069a-3584-433f-93cb-2baea2969a6c","IntraSystemId":"d8efaa45-dbd8-4450-af6a-cf4c971b6100","ModifiedProperties":[],"ObjectId":"5f09333a-842c-47da-a157-57da27fcbca5","Operation":"UserLoggedIn","OrganizationId":"c24cf3ff-e1ea-4eee-95be-620e6e5e2136","RecordType":15,"ResultStatus":"Success","ServerHostName":"manage.office.com","SupportTicketId":"","Target":[{"ID":"5f09333a-842c-47da-a157-57da27fcbca5","Type":0}],"TargetContextId":"c24cf3ff-e1ea-4eee-95be-620e6e5e2136","TenantId":"c24cf3ff-e1ea-4eee-95be-620e6e5e2136","UserId":"","UserKey":"2636c7f5-e63a-4f39-a9de-5c8366c6b56d","UserType":0,"Version":1,"Workload":"AzureActiveDirectory","phCustId":2080}



Wondering if @Rob_SIEM could give some insights.  I'll try and modify

Best answer by prakadesh

Try this @KarlH

<attrKeyMap attr="authType" key="ExtendedProperties.find(Name='RequestType', Value)"/>

4 replies

KarlH
KarlHAuthor
Explorer II
January 17, 2025

ok so I have added



<attrKeyMap attr="loginType" key="RequestType"/>



will that become a field I can search on in a query or create a rule for detecting if its login or oauth?



to the parser

prakadesh
prakadesh
Explorer II
January 19, 2025

Hi @KarlH,

Once the attrKeyMap is added, it will move the outcome of RequestType into the loginType event attribute. Later, you can add a rule to monitor the loginType event attribute and generate an incident.

    prakadesh
    prakadesh
    Explorer II
    January 19, 2025

    If you want to create a new event type for a specific log, such as MFA, you can use the following when condition:

    <when test="$loginType IN 'OAuth2'">

    Then, update the eventType using combineMsgId:

    <setEventAttribute attr="eventType">combineMsgId("MS_OFFICE365_EntraID_XXX_", $status)</setEventAttribute>

    Make sure to replace XXX with a relevant identifier and $status with an attribute that accurately reflects the status.

    KarlH
    KarlHAuthor
    Explorer II
    January 23, 2025

    I am not creating and event I am, parsing a field called RequestType creating then an Attribute as below

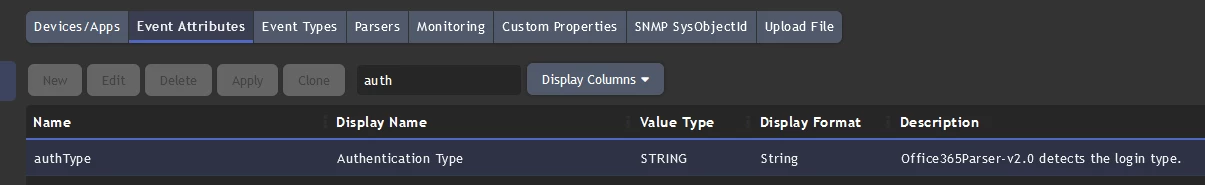

    Event Attributes.png



    the code is a you see below

     



    Screenshot 2025-01-23 111852.png





    Validation passed

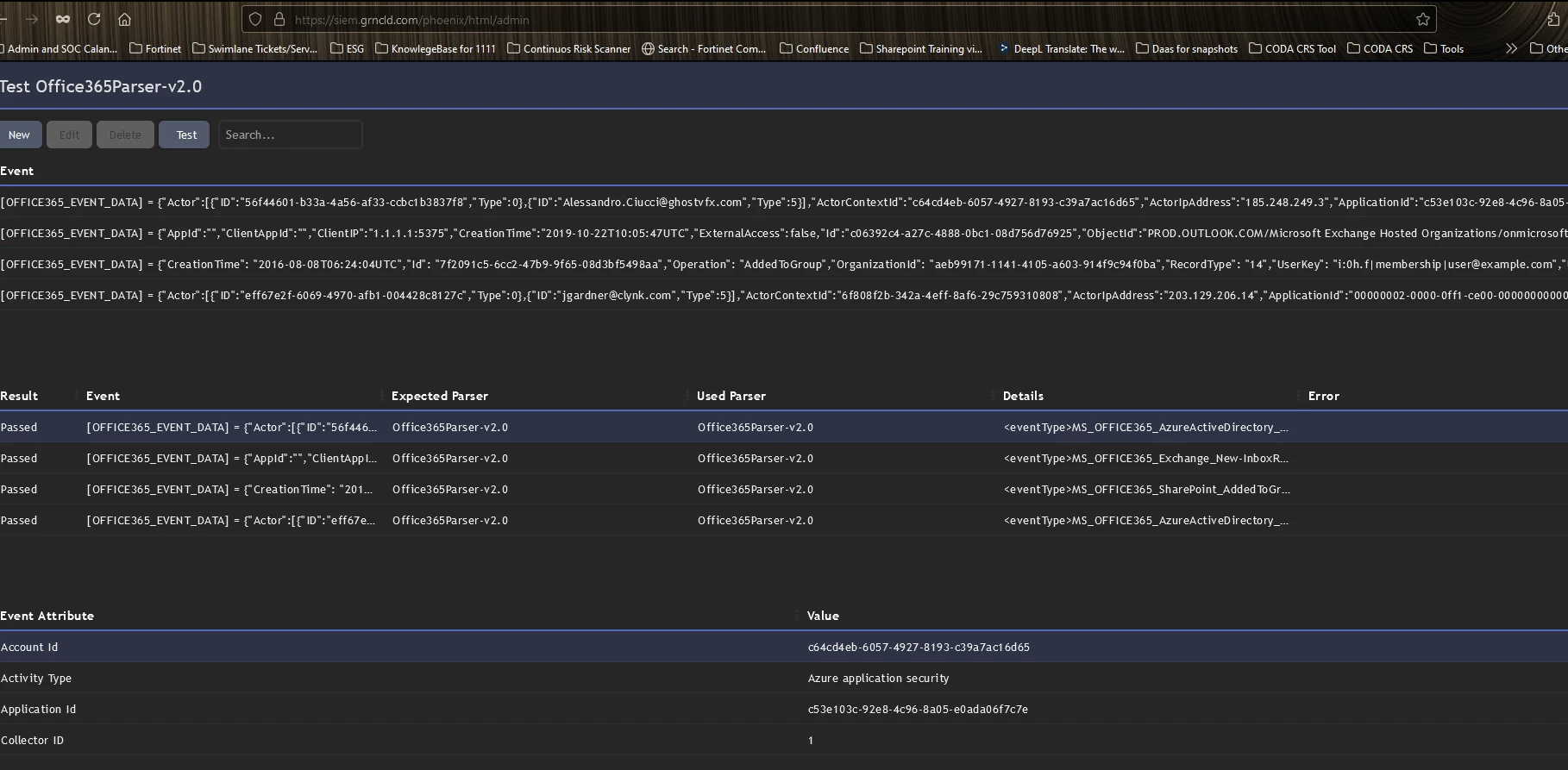

    Screenshot 2025-01-23 112045.png

     

     Testing passed but the bottom pane does not show



    raw log shows

    [OFFICE365_EVENT_DATA] = {"Actor":[{"ID":"56f44601-b33a-4a56-af33-ccbc1b3837f8","Type":0},{"ID":"","Type":5}],"ActorContextId":"c64cd4eb-6057-4927-8193-c39a7ac16d65","ActorIpAddress":"185.248.249.3","ApplicationId":"c53e103c-92e8-4c96-8a05-e0ada06f7c7e","AzureActiveDirectoryEventType":1,"ClientIP":"185.248.249.3","CreationTime":"2023-01-19T16:05:49UTC","DeviceProperties":[{"Name":"OS","Value":"Windows 10"},{"Name":"BrowserType","Value":"Firefox"},{"Name":"IsCompliantAndManaged","Value":"False"},{"Name":"SessionId","Value":"3a85fdc5-2fb4-4f04-a148-7d36a515d7cc"}],"ErrorNumber":"500121","ExtendedProperties":[{"Name":"ResultStatusDetail","Value":"Success"},{"Name":"UserAgent","Value":"Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:108.0) Gecko/20100101 Firefox/108.0"},{"Name":"RequestType","Value":"SAS:EndAuth"}],"Id":"60bf18e1-4db2-4c6a-b1b3-5672ab1f4d01","InterSystemsId":"9bd69e75-9f94-4686-a505-52f54326538e","IntraSystemId":"60bf18e1-4db2-4c6a-b1b3-5672ab1f4d01","LogonError":"AuthenticationFailedSasError","ModifiedProperties":[],"ObjectId":"00000002-0000-0000-c000-000000000000","Operation":"UserLoginFailed","OrganizationId":"c64cd4eb-6057-4927-8193-c39a7ac16d65","RecordType":15,"ResultStatus":"Success","ServerHostName":"manage.office.com","SupportTicketId":"","Target":[{"ID":"00000002-0000-0000-c000-000000000000","Type":0}],"TargetContextId":"c64cd4eb-6057-4927-8193-
    c39a7ac16d65","TenantId":"c64cd4eb-6057-4927-8193-c39a7ac16d65","UserId":"","UserKey":"56f44601-b33a-4a56-af33-ccbc1b3837f8","UserType":0,"Version":1,"Workload":"AzureActiveDirectory","phCustId":2039}





    in the log aboue you can see {"Name":"RequestType","Value":"SAS:EndAuth"}



    but the Filed I call it in the display using the Attribute event name Authorizatin Type does not show up in thee bottom pane of the test results..

    prakadesh
    prakadeshAnswer
    Explorer II
    January 24, 2025

    Try this @KarlH

    <attrKeyMap attr="authType" key="ExtendedProperties.find(Name='RequestType', Value)"/>
      FSM_FTNT
      Staff
      FSM_FTNT
      Staff
      January 28, 2025

      I've created a separate enhancement to officially support these fields.



      Appreciated greatly for the post and sorting this.
