Technical Tip: Validating On-Fabric Rule Match Status on Endpoints Using the FortiClient Diagnostic Tool

Description

This article describes how to validate the on-fabric rule match status on endpoint using the Forticlient Diagnostic Tool.

Scope

FortiSASE.

Solution

Once the configuration is completed according to the following admin guide for on-fabric detection:

Using the output from the FortiClient Diagnostic Tool:

Navigate to location -> FCDiagData\general\logs\trace\FortiESNAC_1.log and check for the log line starting with FabricChecker.

Note:

Both the 'known Public IP' and 'known DNS server' conditions are being used.

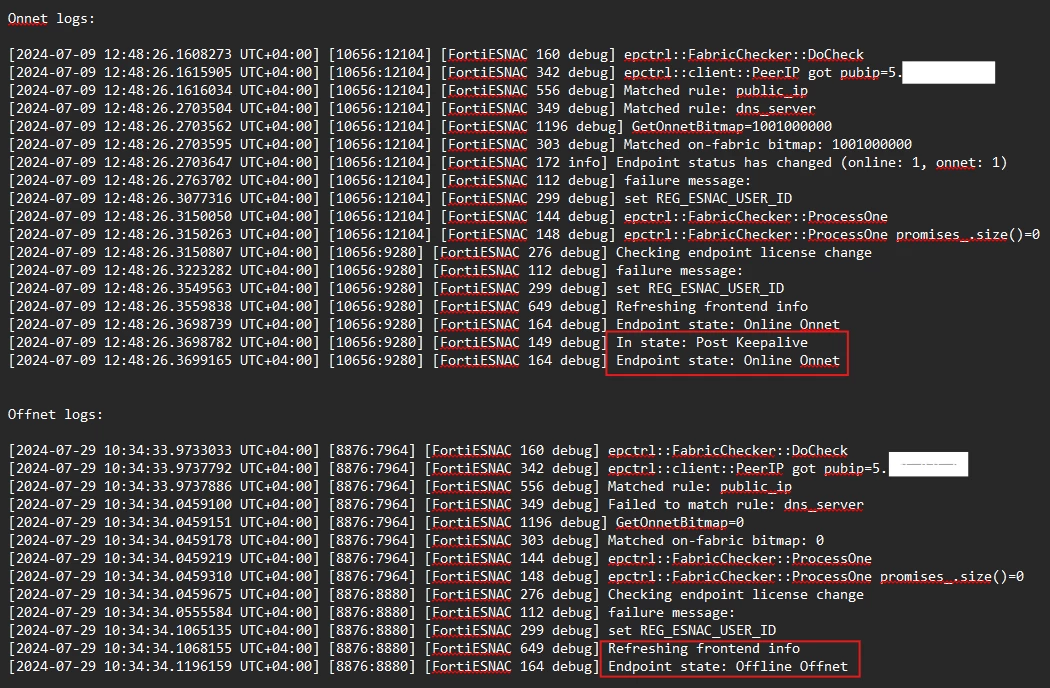

Summary:

The Onnet logs indicate that the endpoint successfully matched the rules and is online, with both public IP and DNS server rules validated.
In contrast, the Offnet logs show that while the public IP was recognized, the DNS server rule failed to match, leading to the endpoint being classified as offline and off-net.
