Technical Tip: How to upgrade the FortiSandbox
Description
This article describes how to upgrade the FortiSandbox.
Scope
FortiSandbox.
Solution

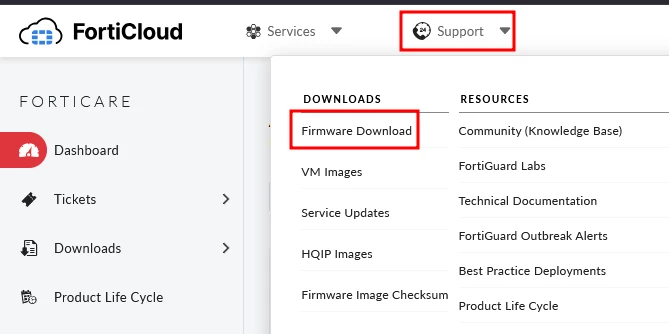

- Log in to the Customer Service & Support web portal at Support, and select the 'Download' option, followed by 'Firmware Images'.
-

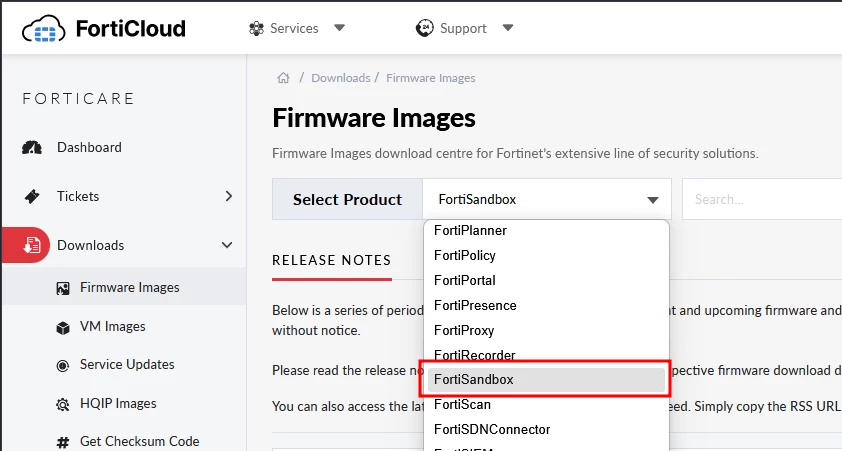

Using the dropdown under 'Select Product' choose the FortiSandbox.
-

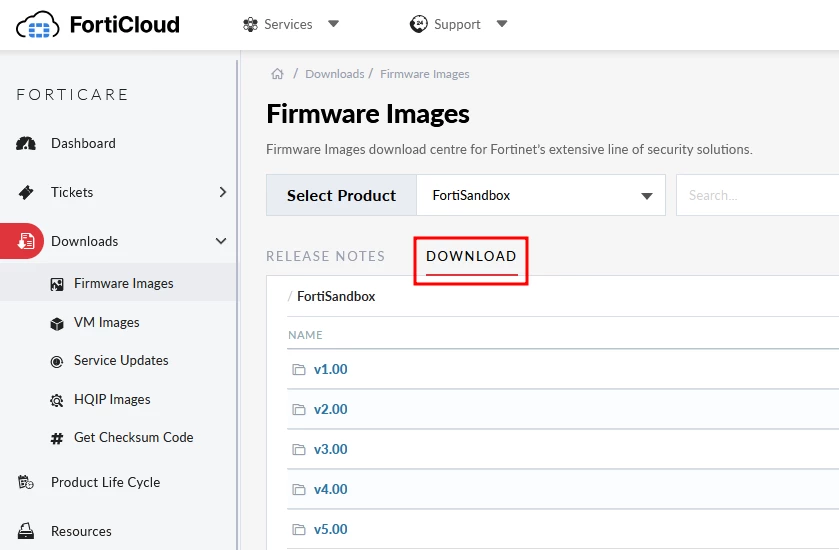

Select the 'Download' tab.
-

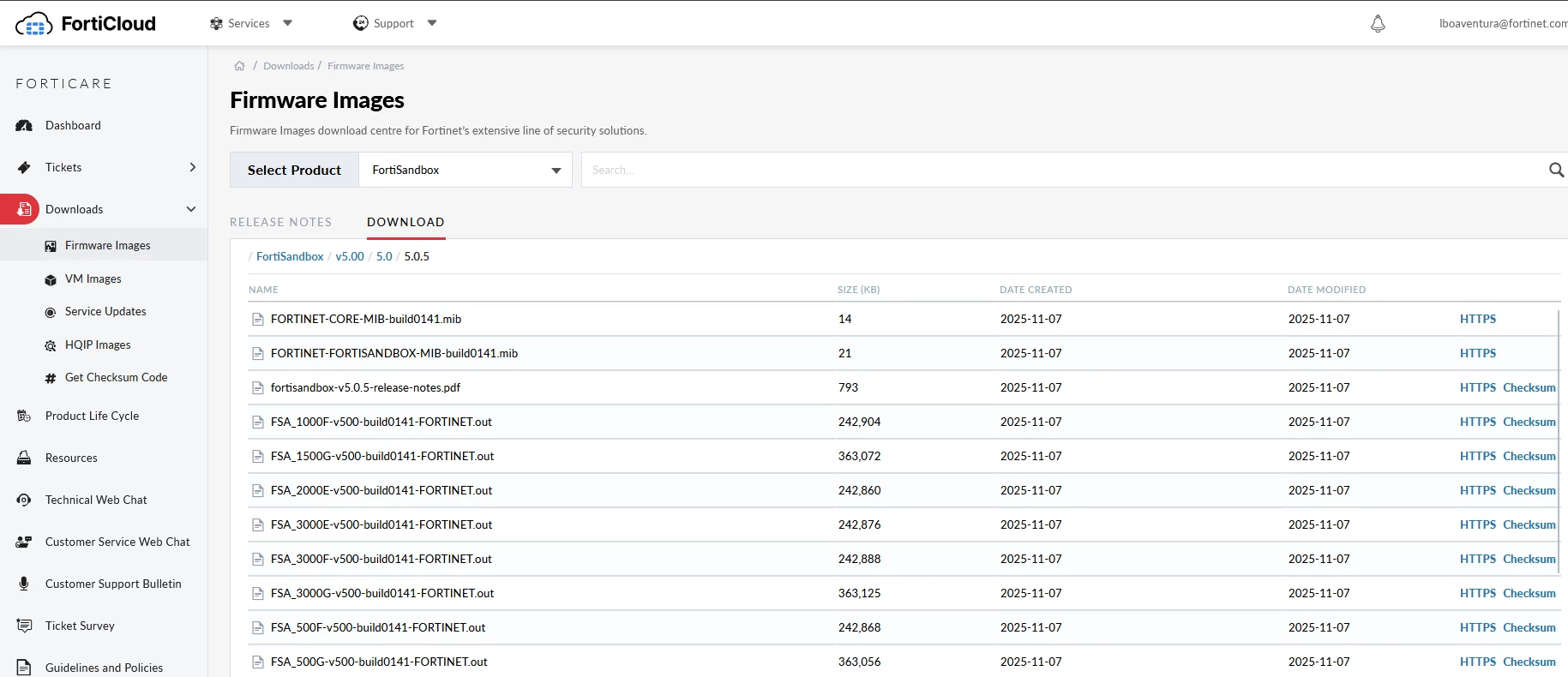

Navigate through the directories to find the preferred firmware version, first selecting the firmware version, then the master release, and then the patch version.
-

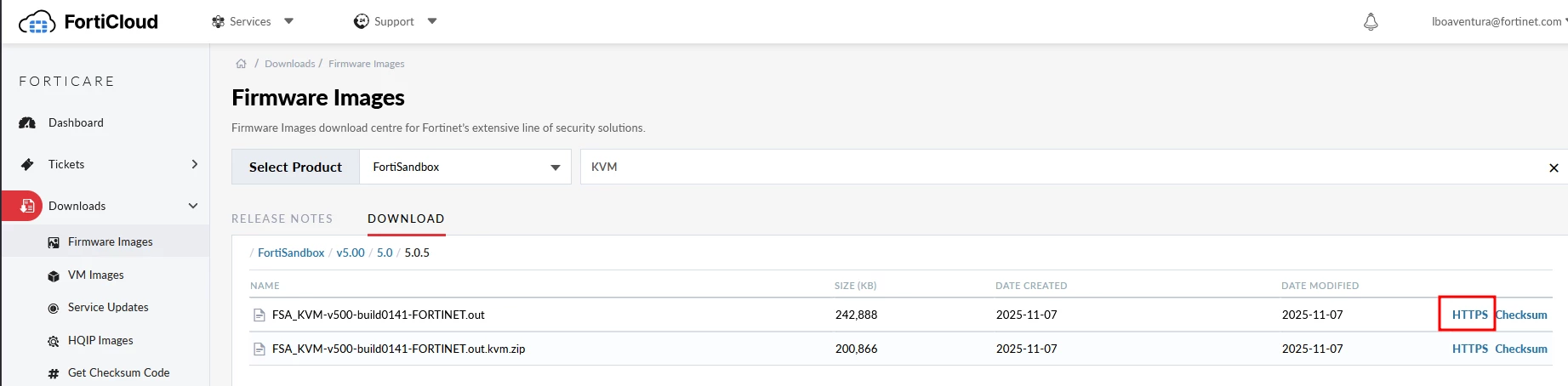

Find the image that corresponds to the VM version or hardware version of the device and select the 'HTTPS' button to the far right.
-

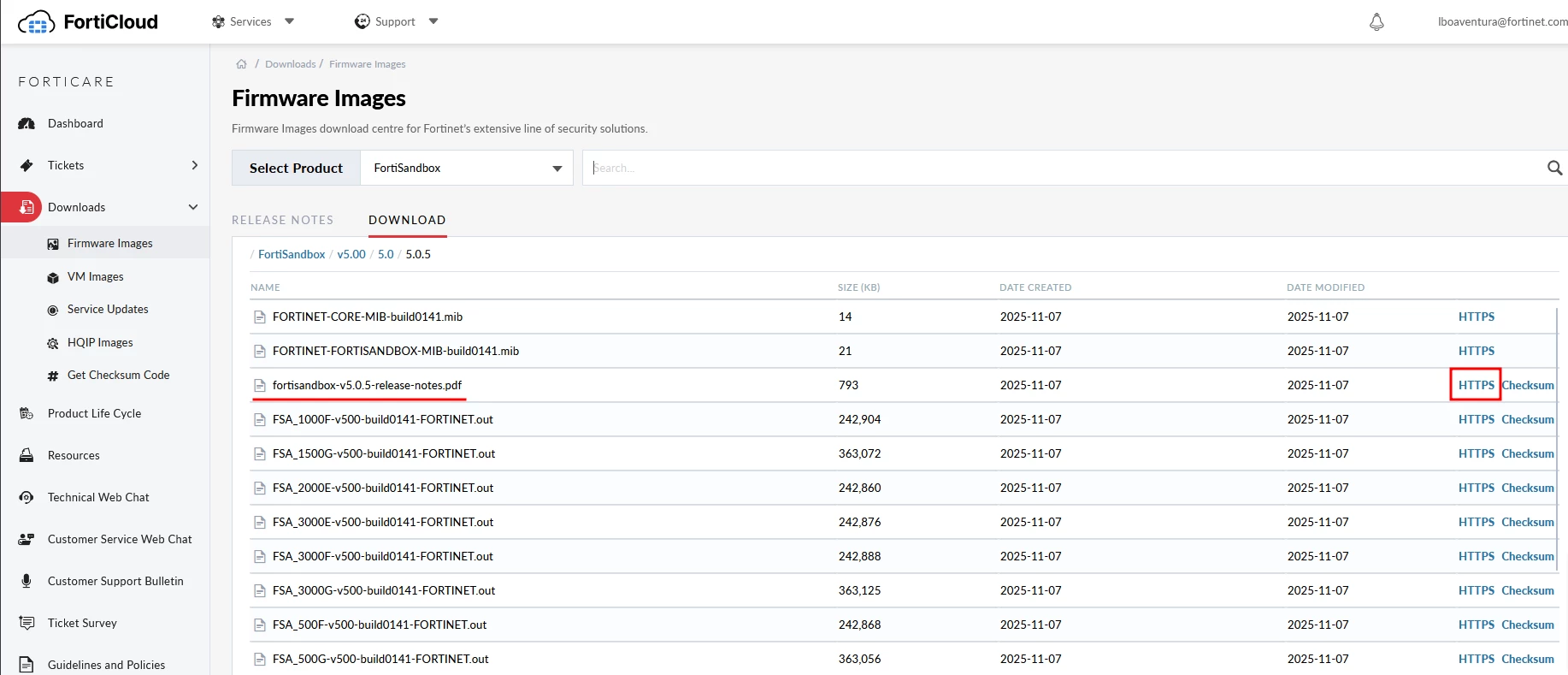

Find the PDF file listed as 'release-notes' and download it using the HTTPS button.
-
Review the release notes document for all relevant information (special notes, upgrade details, etc.).
-
In the release notes in the section listed as 'Upgrade Information', there is the supported
upgrades available and the upgrade paths. -
If there is an upgrade path, use the above-listed steps to download the other images and release notes.
Upgrading the FortiSandbox.
- Log in to FortiSandbox via web UI.

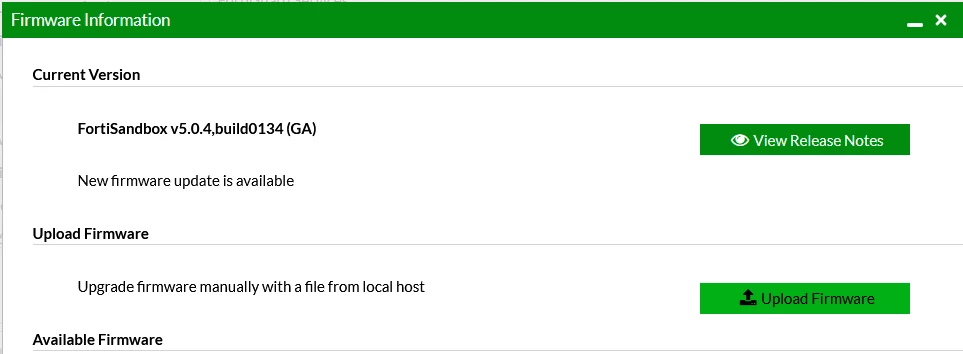

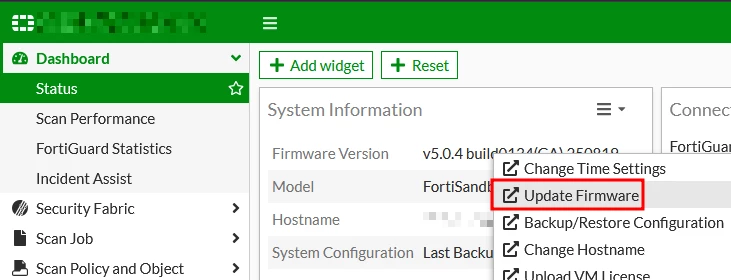

- Under the Dashboard in the 'System Information' widget, it should show a line showing the current firmware build with an Update link next to it. Select the Update link.
-

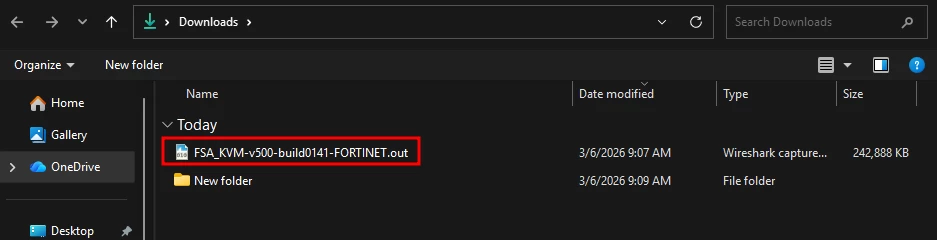

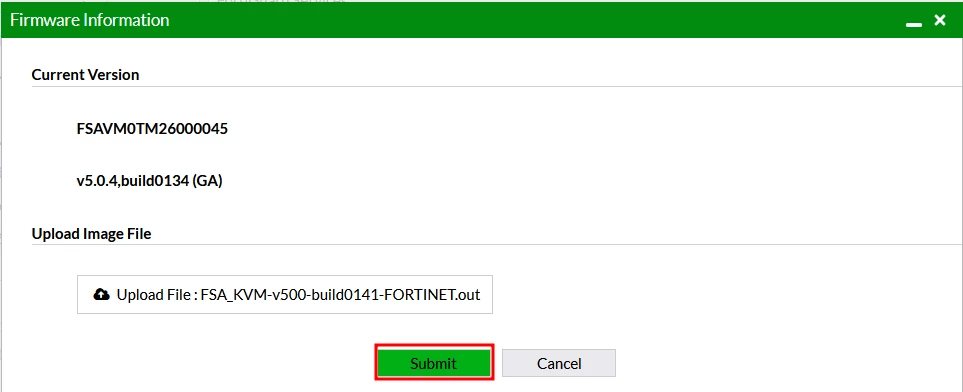

Select the Browse button and find the first image in the upgrade path that is saved on the PC. And select Open.
-
Select the submit button.
-

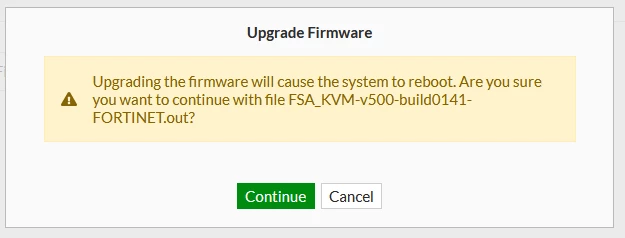

Confirm to upgrade at this point (the device will be out of operation during the upgrade and will reboot).
-
Eventually, it will be redirected to a new page during the upgrade. Do not navigate away, refresh, or reboot the sandbox during this time.
-
Once the page has refreshed on its own, it should show the admin login page.
-
Log in to the web GUI and check the firmware line from step 2, and confirm it is on the new build.
-
Repeat steps 2 through 8 for each step in the upgrade path until reaching the desired firmware.
