Technical Tip: How to perform test using the free SNMP server (ManageEngine) on FortiSandbox
Description
This article describes how to perform a test using the free SNMP server (ManageEngine) on FortiSandbox.
Scope
FortiSandbox.
Â
Solution

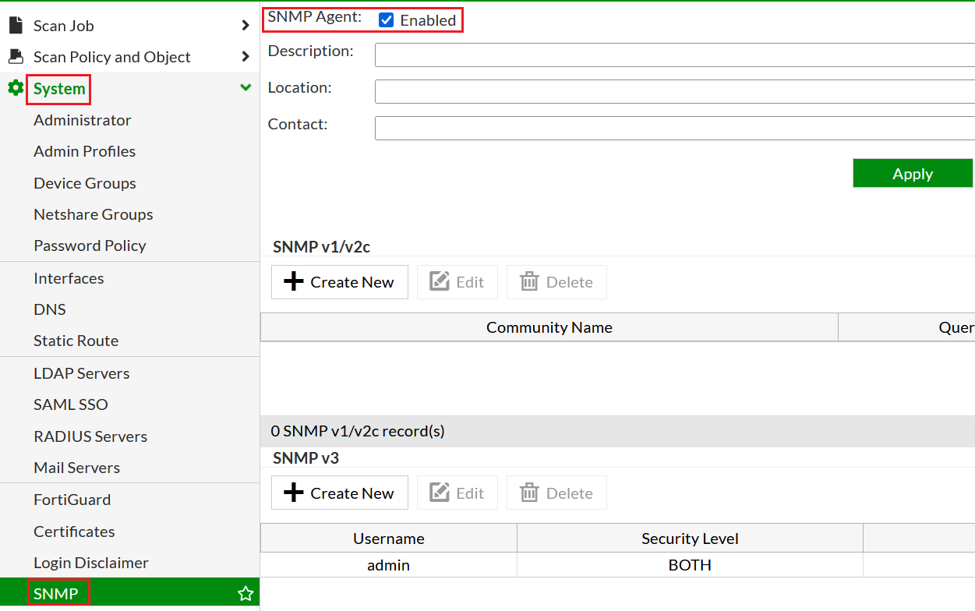

Enable the SNMP Agent.

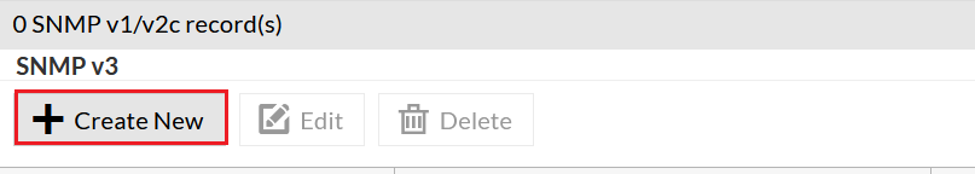

Select 'Create New' to configure and enable SNMPv3 on FortiSandbox.

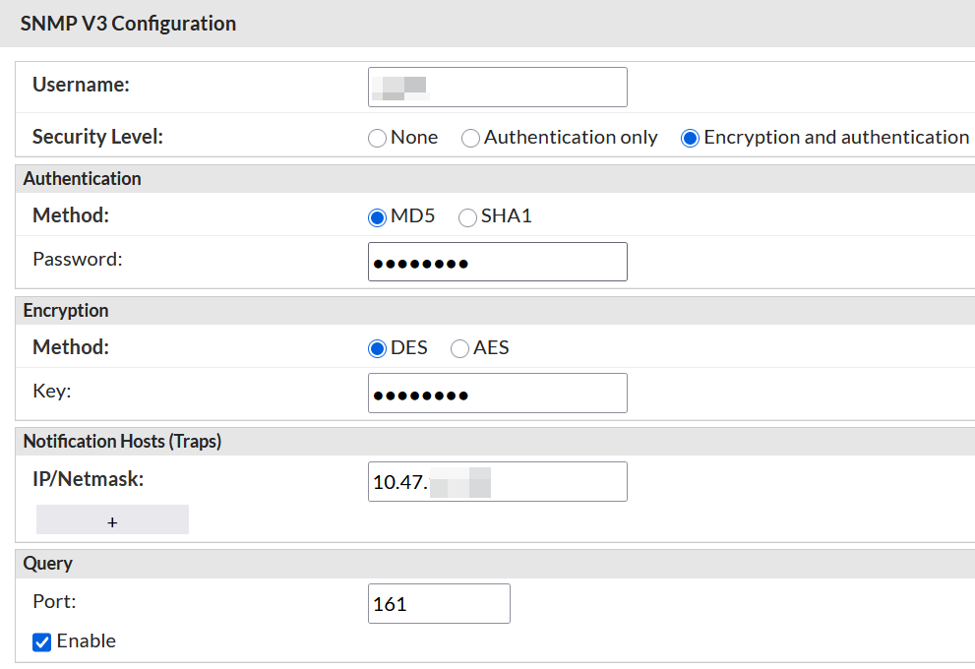

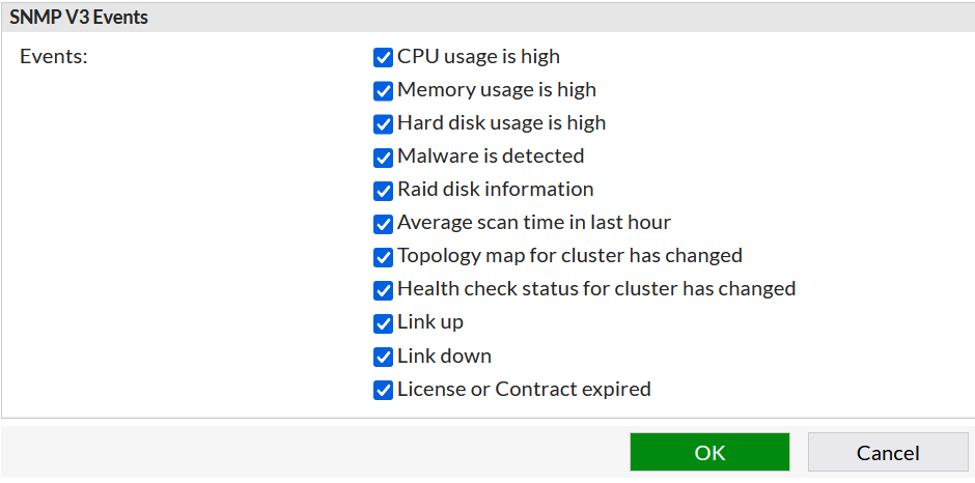

For this test, below is the FortiSandbox configuration for SNMPv3.
Download the free ManageEngine from Google.
Select 'SNMP Version' as 3.
Add the FortiSandbox to the free ManageEngine at Edit -> Settings -> General -> Add.

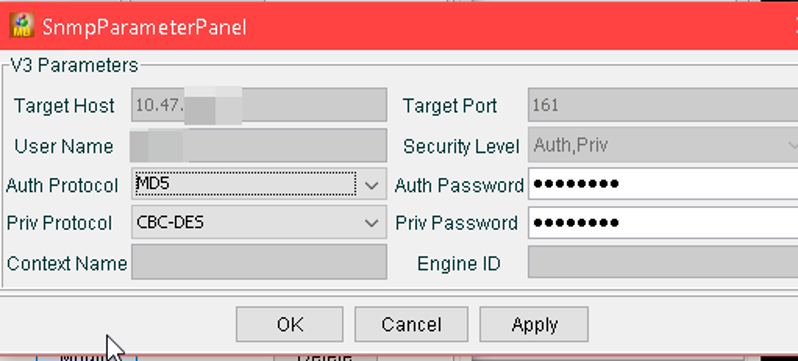

For this test, the configuration for Manage Engine is as follows:

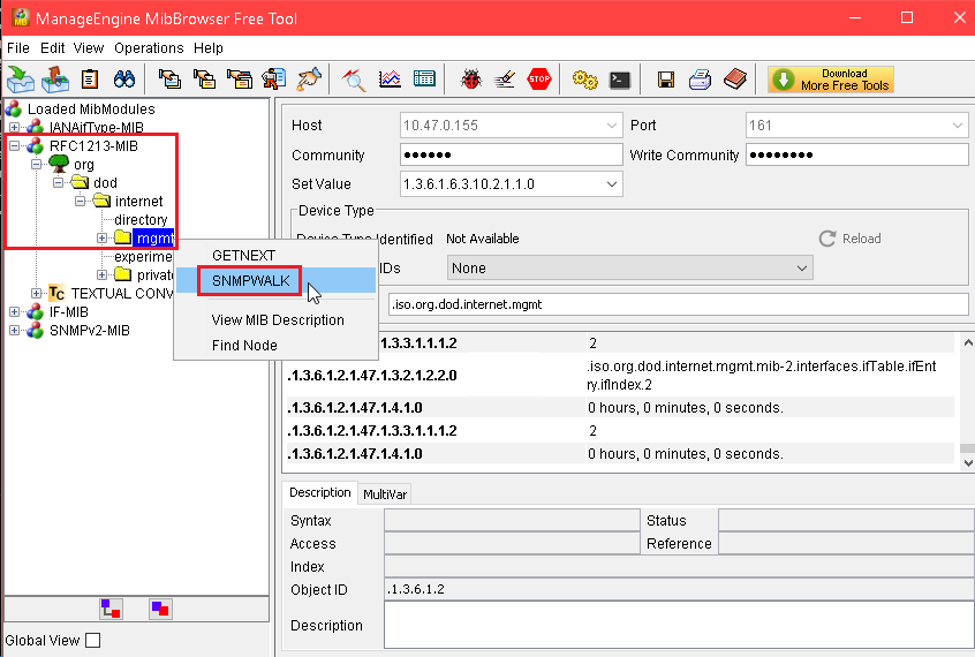

Follow the screenshot below, 'right-click' on folder 'mgmt' and select 'SNMPWALK'.

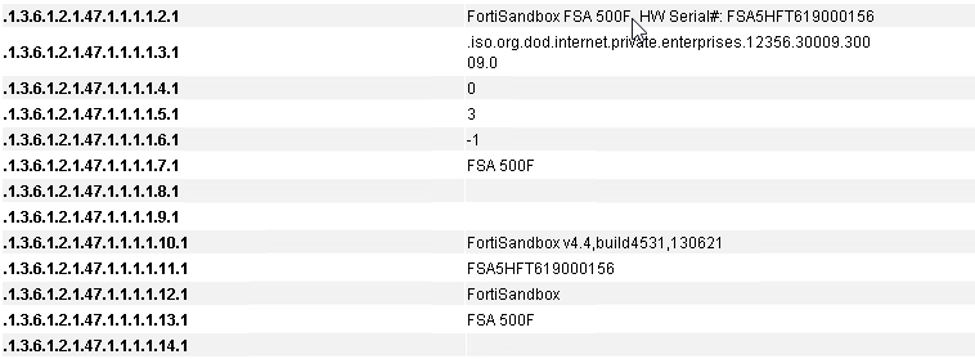

The useful information below will be shown in the free ManageEngine that polls from the FortiSandbox.
