Technical Tip: How to modify the size of a file for scan.

  • August 17, 2025
  • 0 replies
  • 540 views
Description

This article describes how to modify the default file analysis size in FortiSandbox.

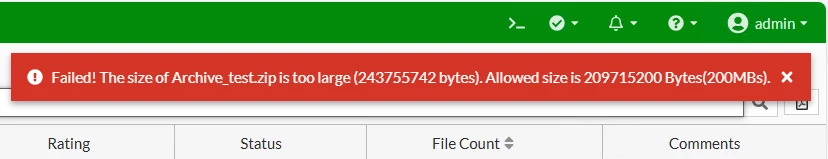

This can be useful, for example, when it is necessary to send a file larger than the default value defined in FortiSandbox.




Scope FortiSandbox all versions.
Solution

Open an SSH session or the CLI console on the FortiSandbox.

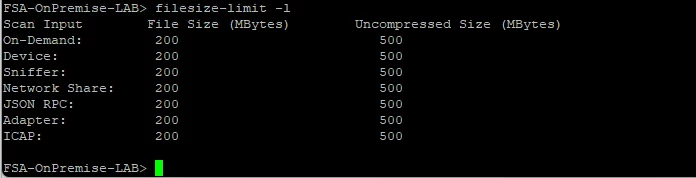

Validate the current configuration of the files to scan.



filesize-limit -l






File size limits are determined by the input type (on-demand, sniffer etc). The default limit for each type is set to 200MB for single file and 500MB for uncompressed archives. If a file exceeds this limit, it may not be analyzed or could result in an error.

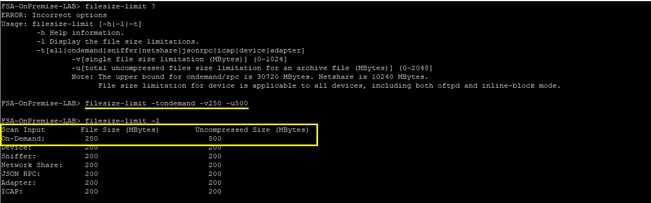

See the following example of how to modify the file size on demand:



filesize-limit -tondemand -v250 -u500






Once the value has been modified, the file can be analyzed.






It is important to note that the maximum values supported by the FortiSandbox are defined in Appendix ‌‌D: Maximum Values - FortiSandbox administration guide.
