Technical Tip: How to configure RADIUS authentication with FortiSandbox

  • March 4, 2025
  • 0 replies
  • 400 views



Description This article describes how to configure RADIUS authentication with FortiSandbox.
Scope FortiSandbox all firmware versions.
Solution

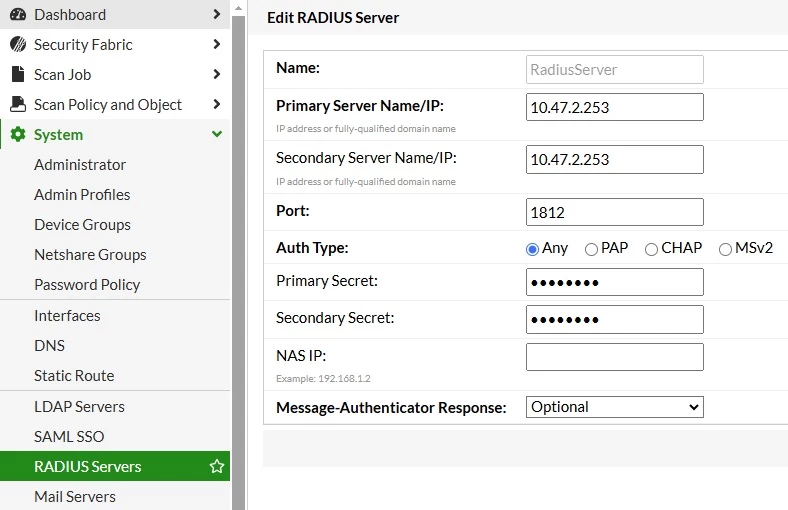

  1. Follow this document steps: RADIUS Servers.






  1. Navigate to the Windows server and open the Network Policy Server.

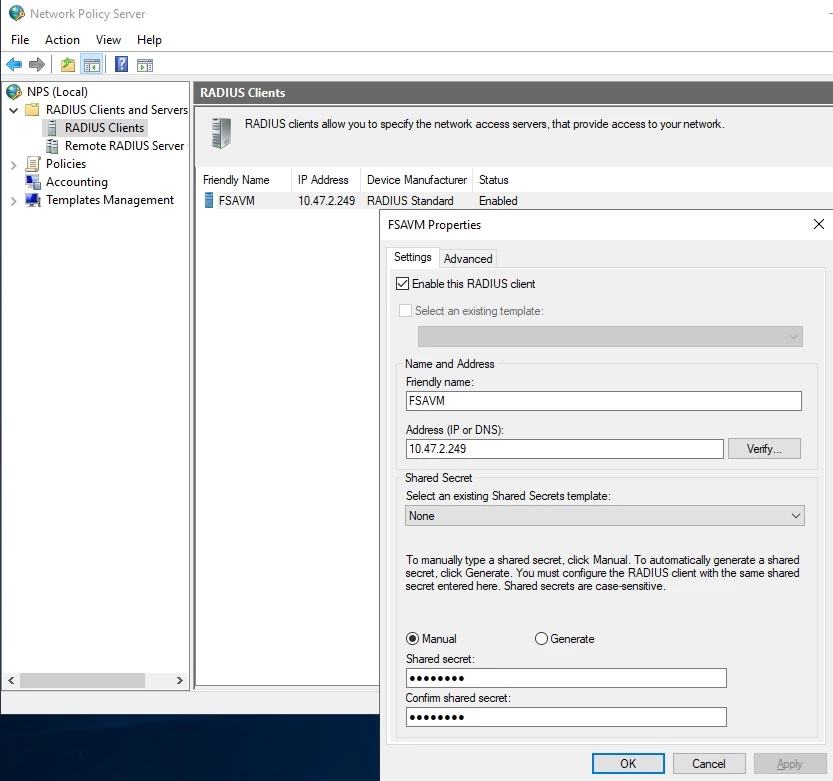

  2. Create a new entry under the RADIUS Clients.
  3. Fill up the Friendly Names, Addresses, and Shared Secrets.

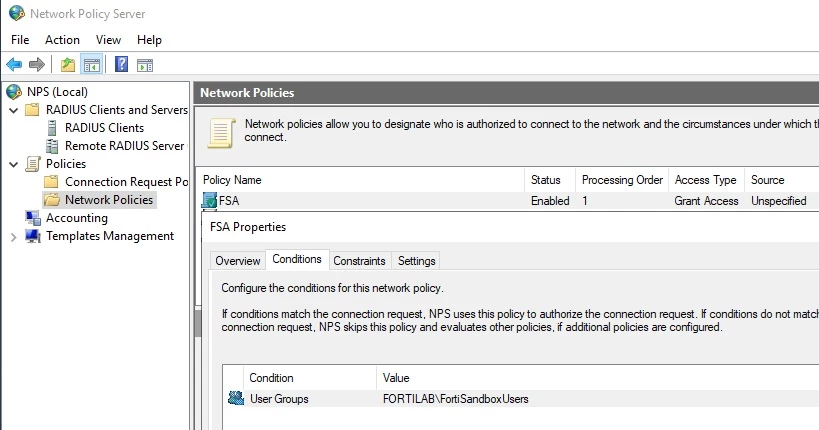

  1. Under Policies -> Network Policies, grant only the User Groups that are under the FortiSandboxUsers.

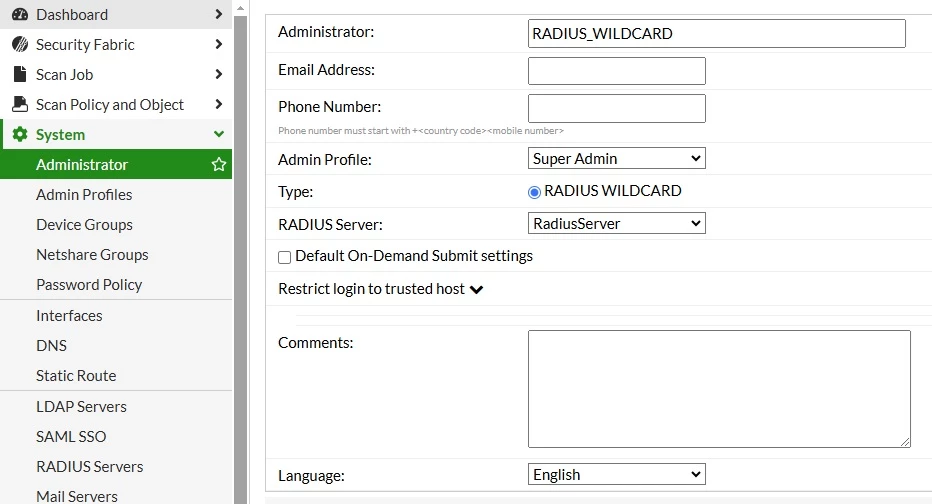

  1. Navigate back to the FortiSandbox System -> Administrator, create the RADIUS_WILDCARD profile, and point the RADIUS Server to the name initially created in Step 1.






  1. Test the connection for those users who were granted access using the Test Login feature under the System -> Administrator.
  2. Test with the user under the user group.

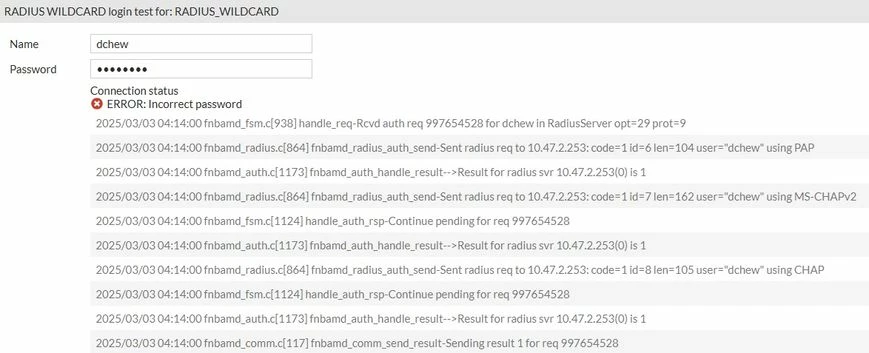

  1. Test with a user who was not in the user group.
