DescriptionBelow are telltale signs that your FortiSandbox’s Windows VM is not activated properly

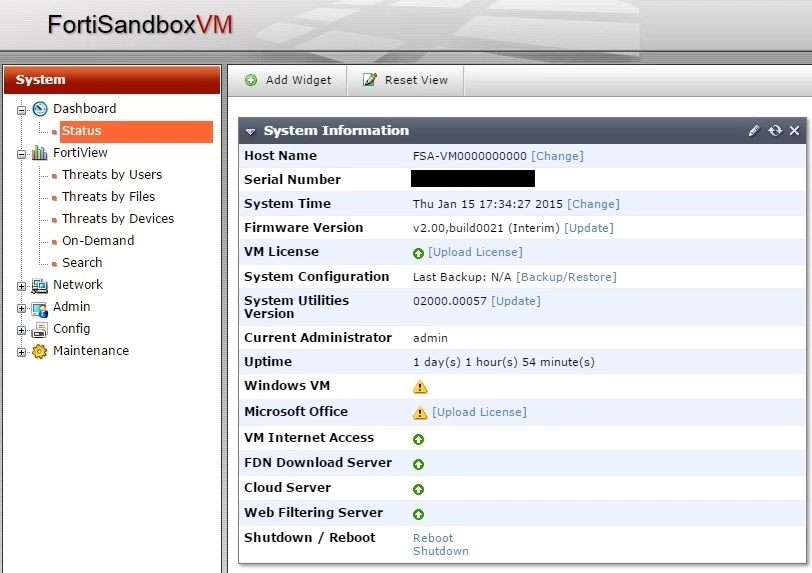

1. Dashboard shows a “!” on Windows VM.
2. Scrolling over the “!” shows an error message:
3. Command vm-status returns the same error:
> vm-status
ERROR: Could not activate all the VM images with given keys. Please reburn other valid keys or reboot after changing your environment/network settings
Virtual Hosts Initialization .......... Failed
Installed VM Images:
ID Ver Name
4 5 WINXPVM1
1 6 WINXPVM
8 5 WIN7X86VM
2 6 WIN7X64VM
4. Command status returns Windows VM: Not-Initialized
> status
System:
Version: v2.00-build0021
Serial number: FSA-VM000000xxxx
FSA-VM License: Valid, 365 day(s) left
System time: Tue Jan 27 17:29:05 2015 EST
Disk Usage: 68 GB
Image status check: OK
Windows VM: Not-Initialized
VM Internet access: On
Disk Size: 251 GB
5. Logs show failure to activate:
msg="FortiSandbox system is up. Start initializing Sandbox VMs."
msg="Start activation WIN7X86VM with key xxxxx-xxxxx-xxxxx-xxxxx-xxxxx"
msg="Failed to activate WIN7X86VM with key xxxxx-xxxxx-xxxxx-xxxxx-xxxxx"
msg="Failed to activate WIN7X86VM message="-1:Not activated" "
msg="Could not activate all the VM images with given keys. Please reburn other valid keys or reboot after changing your environment/network settings"
msg="GUI database is not ready."
msg="System database is not ready. A program should have started to rebuild it and it shall be ready after a while."
msg="Windows VM are not activated or initialized. ERROR: Could not activate all the VM images with given keys. Please reburn other valid keys or reboot after changing your environment/network settings ."
6. Dashboard widgets return “Database Not Ready”:

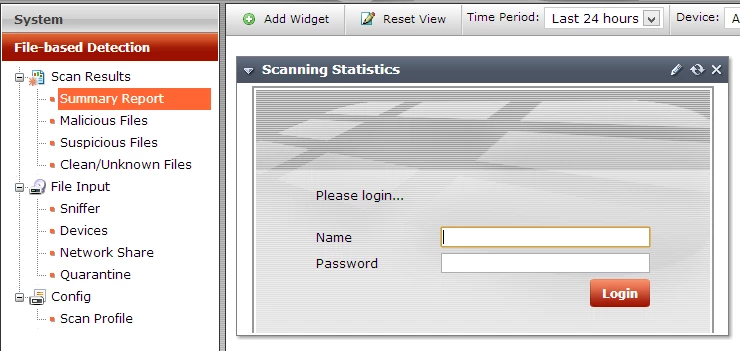

7. (FortiSandbox 2.0) The File-based Detection and URL Detection pages do not load properly. As soon as user goes to those pages, the page loads briefly and then return back to the System Dashboard:
8. Connection from a FortiGate GUI fails:
9. Connections from FortiGate to FortiSandbox via port 514 are constantly reset.
