Troubleshooting Tip: Testing FortiProxy ICAP Server with C-ICAP Client

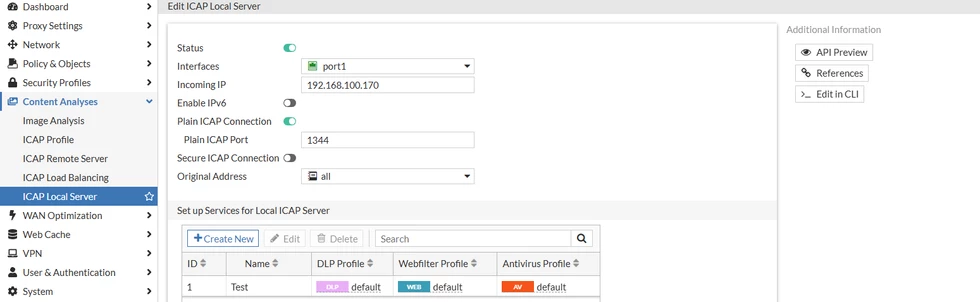

1. Configure FortiProxy as the local ICAP server.

CLI:

config icap local-server     edit 1         set interface "port1"         set incoming-ip 192.168.100.170         set srcaddr "all"         config icap-service             edit 1                 set name "Test"                 set dlp-profile "default"                 set av-profile "default"                 set webfilter-profile "default"             next         end     next end

2. Install C-ICAP tools on Client machine(Windows or Linux):     In this example, Ubuntu is used as the test client.
3. Download the EICAR text file from www.eicar.org for testing.
4. Run the following command on the client:

c-icap-client -i 192.168.100.170 -s Test -f eicar.txt

Parameter explanation:

• -i --> ICAP server name/IP.

1. -s -->ICAP service configured on the Server.
2. -f -->Send this file to the ICAP server.

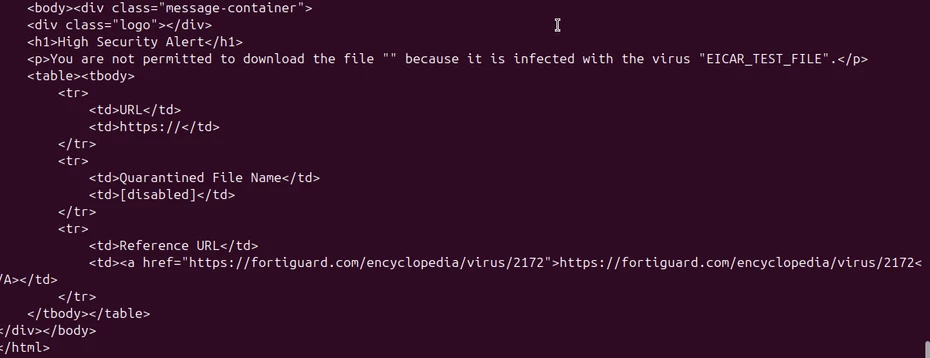

5. If configured correctly, the client will display a response similar to the following:

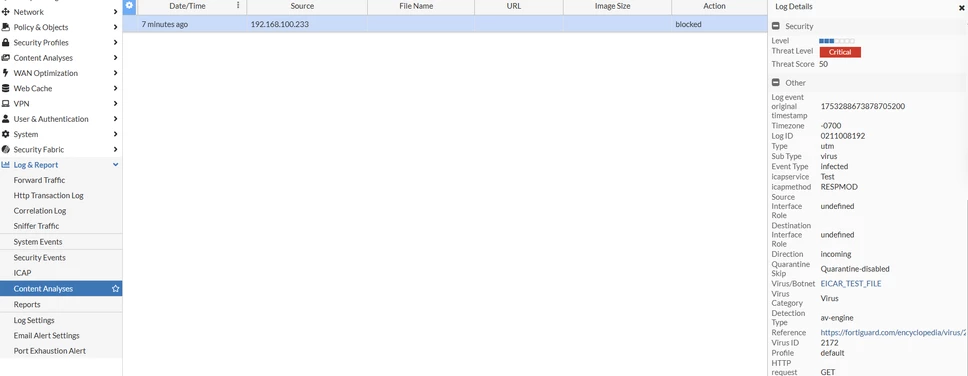

And the following FortiProxy log entry:

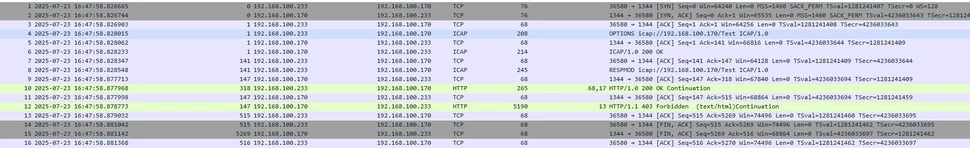

6. This packet capture illustrates an ICAP RESPMOD request initiated by a C-ICAP client to FortiProxy:  The HTTP response body contains the standard EICAR test file, and FortiProxy's ICAP server analyzes the request and returns an ICAP response indicating detection and the corresponding action.

By following the steps above, administrators can validate FortiProxy's ICAP server functionality using the C-ICAP client and the standard EICAR test file.
