Technical Tip: Process Monitor feature not visible from GUI

  • May 19, 2025
  • 0 replies
  • 252 views
Description This article describes why the 'Process Monitor' feature is not visible from the GUI.
Scope FortiProxy, FortiGate.
Solution

The Process Monitor displays processes with their CPU/Memory usage levels. Administrators can monitor/terminate processes within the Process Monitor panel with Kill, Force Kill and Kill & Trace option.

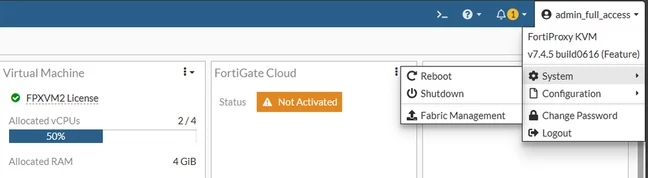

Navigate to 'Logged in Administrator (Top Right Corner)' -> The system does not show the option 'Process Monitor'.

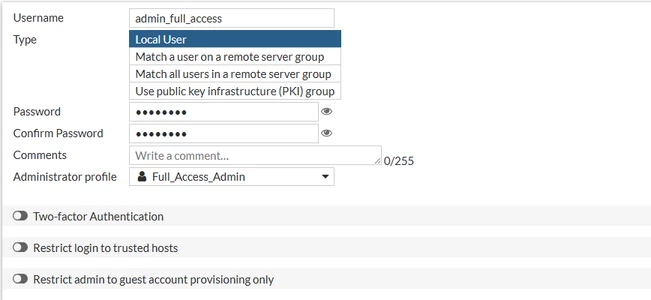

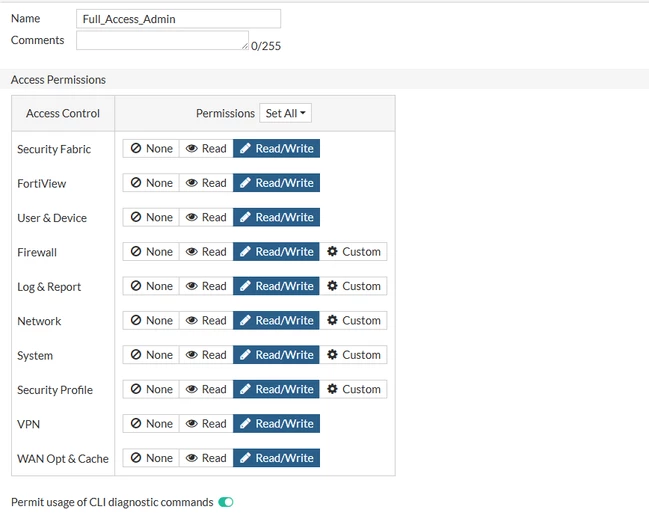

Logged in admin has a full read-write administrator profile assigned as below.

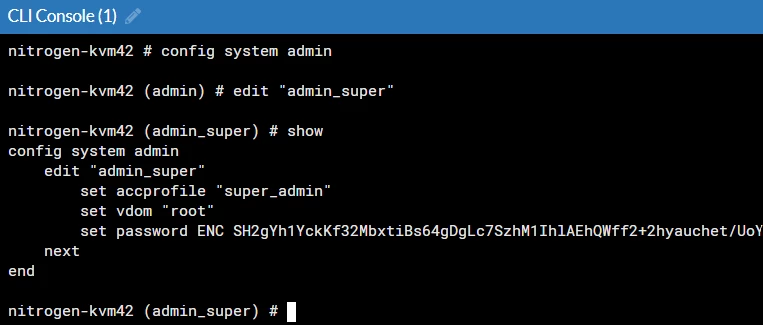

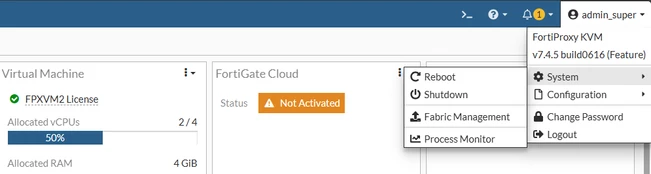

This is an expected behaviour as administrator account with 'Super_Admin' profile would only be able to view the Process Monitor option.









The super_admin profile has to be used for admins who need access to monitor/terminate processes.
