Technical Tip: How to integrate FortiProxy with FortiAnalyzer

To configure FortiProxy to send logs to FortiAnalyzer, follow these instructions.

1. Check compatibility between the versions of FortiProxy and FortiAnalyzer in use. See the documentation.
2. Configure FortiProxy.

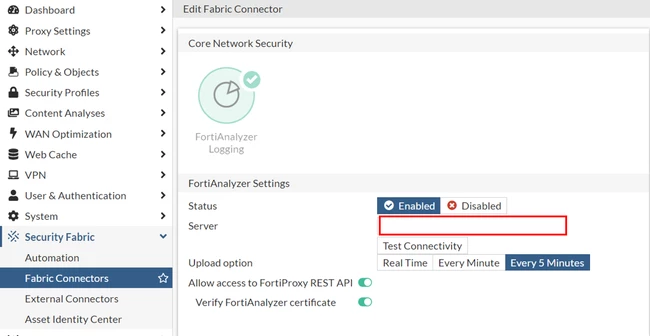

   Go to Security Fabric -> Fabric Connectors -> FortiAnalyzer Logging -> Edit.

This can be done from the CLI by going to:

config log fortianalyzer setting

    set status enable

    set server <FAZ IP>

end

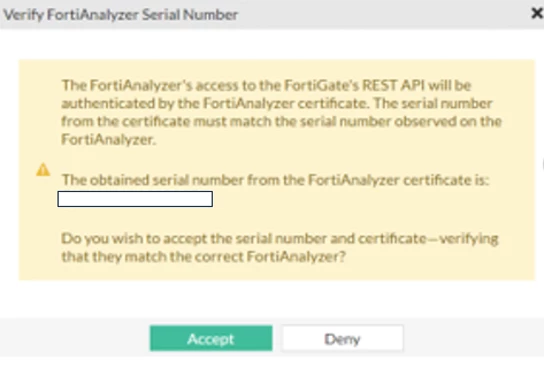

3. Select 'OK' and the following will be shown. Select 'Accept'.

The status of FortiAnalyzer will first show as unauthorized:

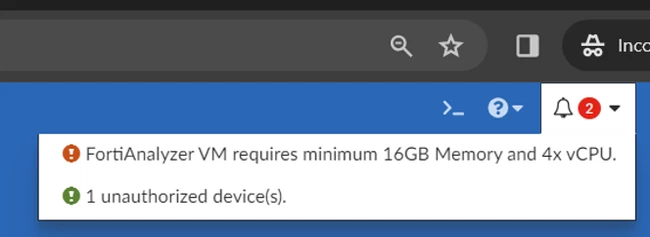

4. Log in to FortiAnalyzer to authorize the device. Select the alert:

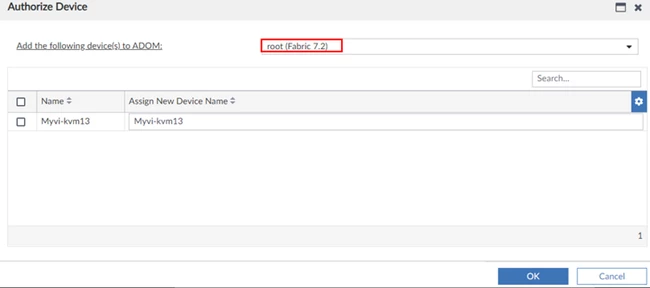

5. Authorize the device.

The device can be added to another ADOM if required. After, select 'OK'.

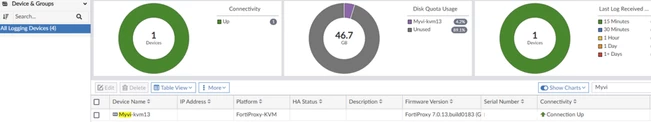

6. When the status changes to 'success', this means the device has been added to the FortiAnalyzer and will start sending logs as per the configuration.
