Technical Tip: How to enable logging and view HTTP/S cache traffic
Description
This article explains how to enable logging and how to view cached HTTP/S traffic.
Scope
FortiProxy.
Solution

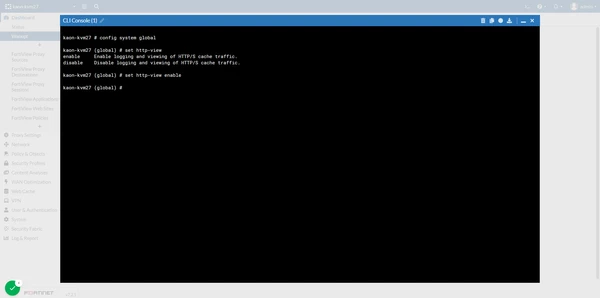

1) Enable http-view under global settings:
# config system global
set http-view enable
end
2) To list logs, run the following:
# exe http-view report XX
Replace XX with the desired value from the following:
| 00 | Top entries by total HTTP requests |
| 01 | Top entries by bandwidth consumed |
| 02 | Top entries by cachable % of total requests |
| 03 | Top entries by cache hit % of total requests |
| 04 | Top entries by cache hit % of cachable requests |

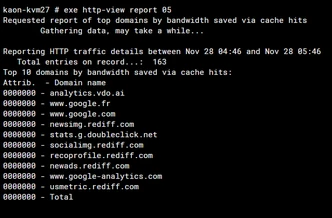

| 05 | Top entries by bandwidth saved via cache hits |
By default, the top 10 reports within a duration of 60 seconds are listed.
To increase list count, attach a number after the command. For example:

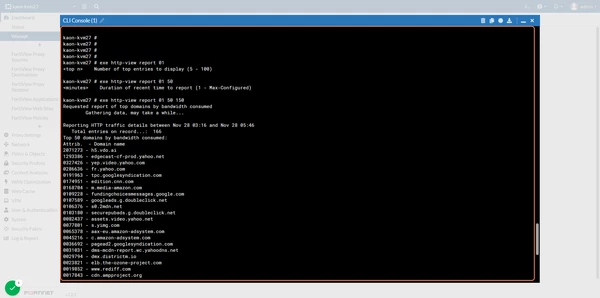

# exe http-view report 01 50
In this case, 50 reports will be shown.
