Technical Tip: How to configure traffic shaping on explicit web proxy interface

Description

This article describes how to configure the traffic shaping on the web proxy interface to limit users traffic.

Scope

Fortiproxy v7.0

Solution

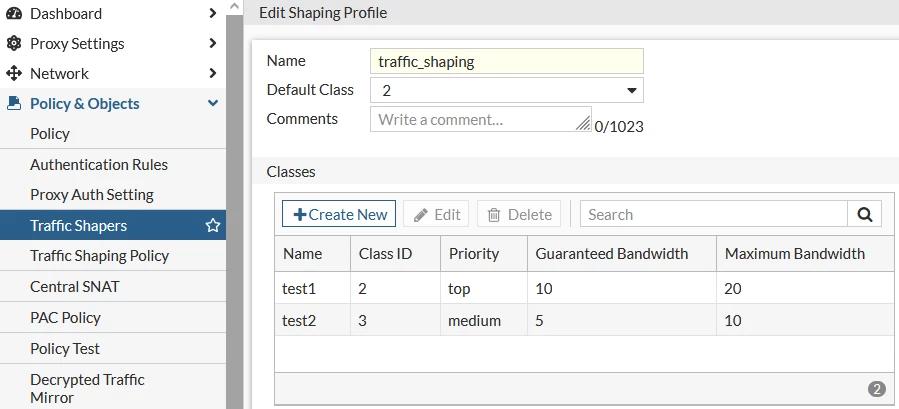

Use the following method to create a traffic shaper profile with a class ID in the GUI:

To configure it in the CLI:

config firewall shaping-profile

    edit "traffic_shaping"

        set default-class 2

            config classes

                edit "test1"

                    set class-id 2

                    set guaranteed-bandwidth 10

                    set maximum-bandwidth 20

                next

                edit "test2"

                    set class-id 3

                    set priority medium

                    set guaranteed-bandwidth 5

                    set maximum-bandwidth 10

                next

            end

    next

end

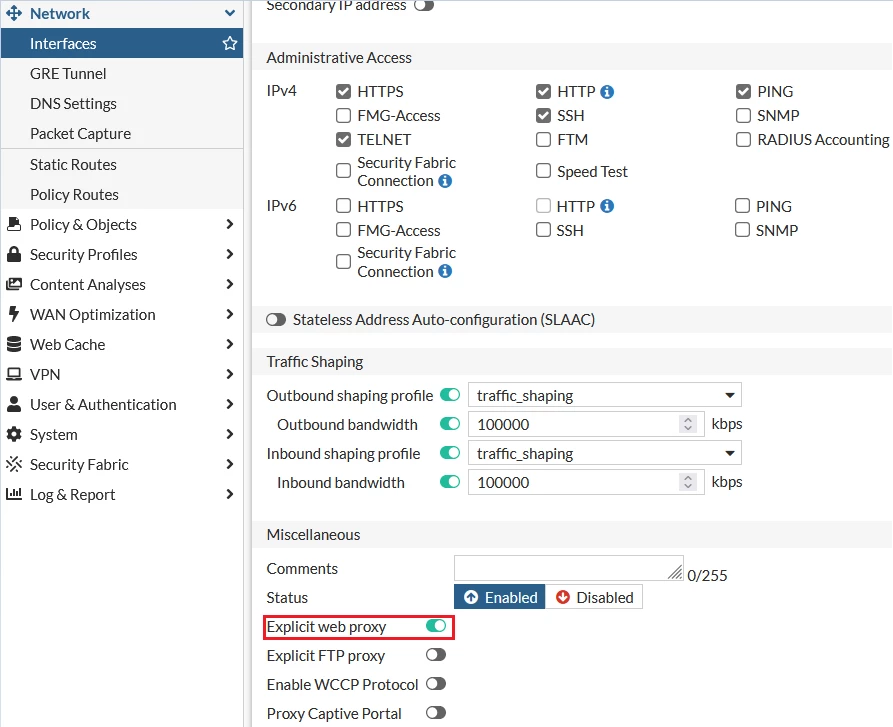

Configure traffic shaping on the interface with an explicit web proxy enabled in the GUI:

To configure it in the CLI:

config system interface

    edit "port2"

        set ip 10.211.1.110 255.255.252.0

        set allowaccess ping https ssh http telnet

        set type physical

        set explicit-web-proxy enable

        set inbandwidth 100000

        set outbandwidth 100000

        set egress-shaping-profile "traffic_shaping"

        set ingress-shaping-profile "traffic_shaping"

        set snmp-index 2

    next

end

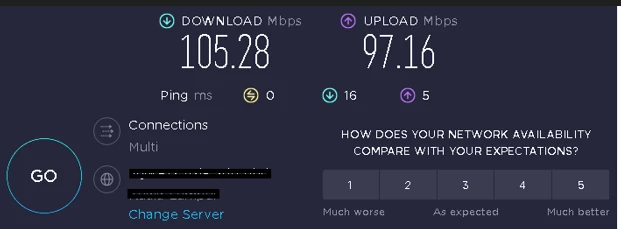

Speedtest result before traffic shaping applies:

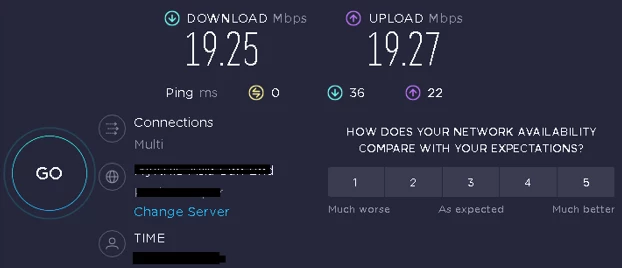

Speedtest result after traffic shaping applies:

More information:

To create or edit a class, see Create or edit a class.

For an alternative way to configure Traffic shaping with a Traffic shaping policy, see traffic shaping policy.

If an explicit proxy interface is defined in the policy and the traffic needs to be controlled as local-in or local-out using traffic shaping, follow the procedure in Local-in and local-out traffic matching.
