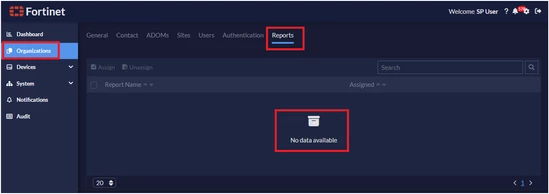

Troubleshooting Tip: No report visible in Organizations -> Reports tab

This can be due to any of the following possibilities:

• There is no FortiManager device added.
• There is no ADOMs & Sites created.
• There is an ADOM name, FortiGate device name, or VDOM name mismatch between FortiManager and FortiAnalyzer.

Steps:

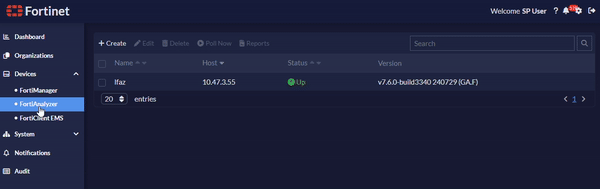

1. Make sure Reports are visible under FortiPortal -> Device -> FortiAnalyzer -> Reports.

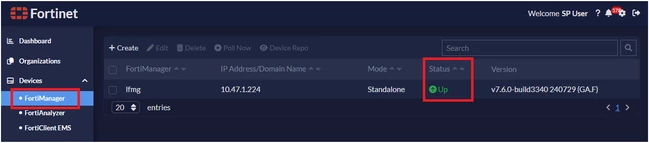

2. Make sure FortiManager is added in FortiPortal -> Device -> FortiManager.

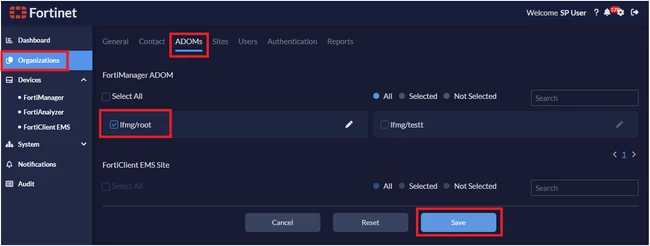

3. Proceed to select the ADOM from FortiPortal -> Organizations -> Edit -> ADOMs -> select the ADOM -> Save.

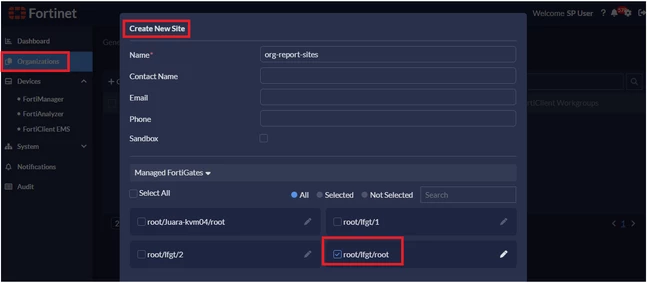

4. Proceed to create Sites from FortiPortal -> Organization -> Edit -> Sites -> select the FortiGate device/VDOMs -> Save

Note: Make sure the ADOM name, FortiGate Device name and VDOM name are same between FortiManager and FortiAnalyzer.

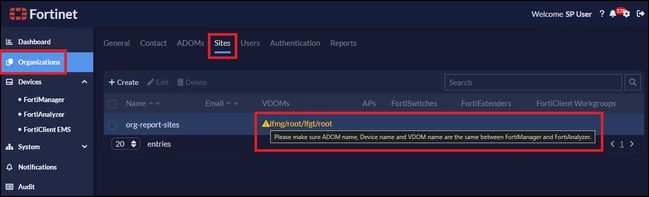

5. After a save, make sure there is no Warning message as stated below:

'Please make sure ADOM name, Device name and VDOM name are same between FortiManager and FortiAnalyzer'.

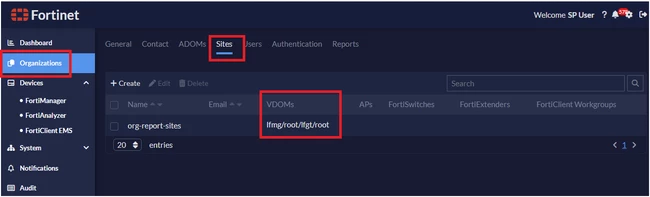

Sample screenshots showing there is no name mismatch:

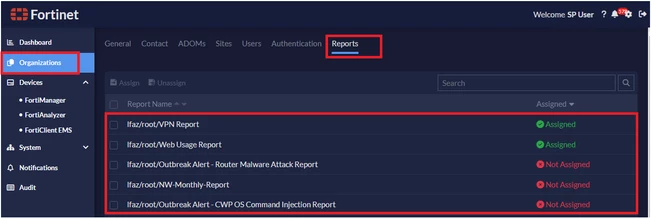

6. After, navigate to FortiPortal -> Organizations -> Reports. Reports will be visible now.
