Technical Tip: How to deal with the 'Connection closed' error in FortiPAM

There are several ways to access the target in FortiPAM. One of the most commonly used methods is Web RDP to the Servers.

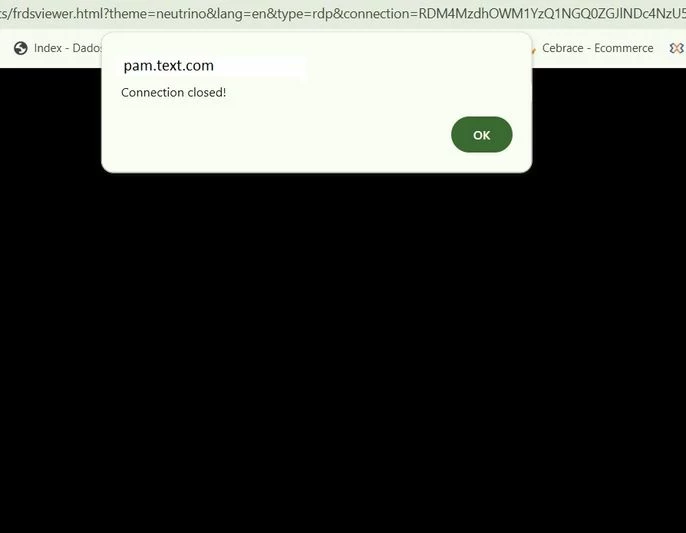

A very common error encountered when accessing Windows Servers is the following:

In many cases, it is important to take the WAD debug files and reproduce the error, as follows:

diagnose debug enable
diagnose wad debug enable level verbose
diagnose wad debug enable category secret
diagnose wad debug enable category rdp
diagnose debug console timestamp enable

A couple of alternatives to solve this problem would be as follows:

First Option:

Adjust FortiPAM in the secret configured to do Web RDP as follows, via CLI:

config secret database

    edit xx                                                                      --> This would be the secret ID.

        set rdp-security-level  best-effort         --> RDP by default.

end

Second Option:

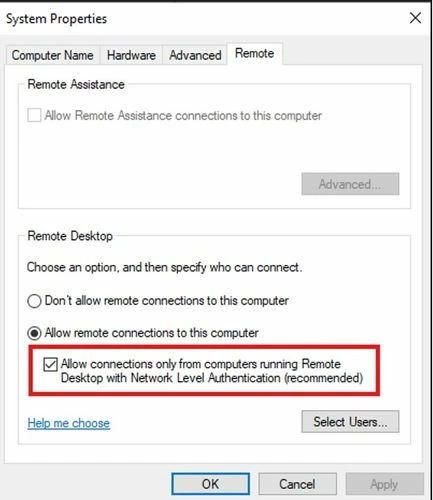

Directly in the Target (Windows server), enable the option as shown in the following image.

Note:

If the problem is still not resolved, reproduce the failure and take the SSL debug as follows:

diagnose wad debug enable category http
diagnose debug application sslvpn -1

diagnose debug enable

Open a case with the TAC and share all the information.
