Technical Tip: Use a custom script to send personalized output to a Syslog server

Description

This article describes how to create and use Custom Script in FortiNAC and how to send customizable information to a Syslog server.
In this example, a simple use case is shown that checks the licenses. The script can be customized for different verification mechanisms.

Scope

FortiNAC.

Solution

The scripts in FortiNAC are located in the '/home/cm/scripts' directory and can be reached after entering the shell.

fnac74p # execute enter-shell
fnac74p:~$ cd /home/cm/scripts
fnac74p:~$ touch CheckAndSendSyslog.sh
fnac74p:~$ chmod +x CheckAndSendSyslog.sh
fnac74p:~$ vi -N CheckAndSendSyslog.sh

The content of the script can be pasted into the editor and then saved (:wq). This is an example of a Bash script:

########################  CheckAndSendSyslog.sh ##################
# Check the license count and send a syslog to an external server
##################################################################

#!/bin/bash

## Set Base Directory and define settings
BASEDIR="/home/cm/scripts/"
FullInfo="$BASEDIR/FullInfo.txt"
Warning=500
Critical=100
Server=10.1.1.10
Port=6514

###############################################################
## Find the license information and save the ouptput in a file

RunClient DumpLicenseCount -count -concurrent > "$FullInfo"

###############################################################
## Parse data to find license usage

# Extract used and max values correctly
used=$(grep "Concurrent Licenses Used  =" "$FullInfo" | awk -F'=' '{print $2}' | awk -F',' '{print $1}' | tr -d ' ')
max=$(grep "Concurrent Licenses Used  =" "$FullInfo" | awk -F'Max =' '{print $2}' | tr -d ' ')

# Ensure variables are numbers
used=$((used))
max=$((max))

# Calculate difference
difference=$((max - used))

# Determine status
if (( difference < Critical )); then
    status="CRITICAL: Very few licenses left!"
elif (( difference < Warning )); then
    status="WARNING: Running low on licenses!"
else
    status="OK: License count is sufficient."
fi

# Print results
echo "License Status: Used: $used, Available: $difference, $status"

# Send a messages to the syslog server
echo "License Status: Used: $used, Available: $difference, $status" | nc $Server $Port

# Clean up
rm -f "$FullInfo"

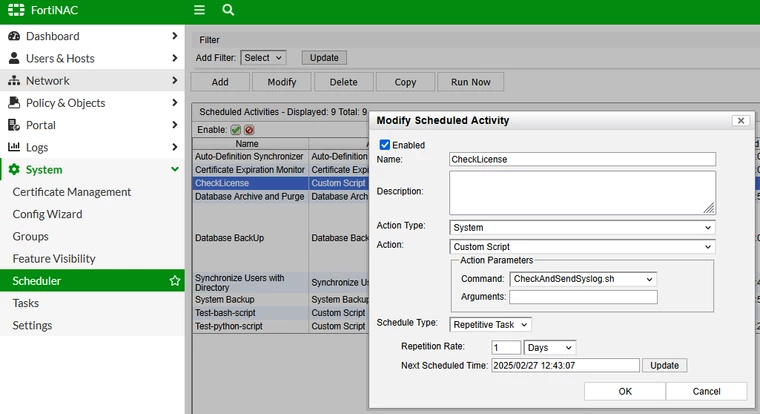

The script can be configured to run as a scheduled task or as a response to an Event Mappings:

Syslog content sent to the Syslog server depending on the license usage should appear as follows:

2025-02-26 12:50:34 Local7.Debug 10.1.2.71 License Status: Used: 5, Available: 99995, OK: License count is sufficient.

Note:

A license notification is already built-in FortiNAC, Logs -> Events & Alarms -> Management -> Event Thresholds. It creates an internal event when the license usage reaches 75% and 95%. This example demonstrates the flexibility of the scripts and the customizable information that can be sent to a syslog server.

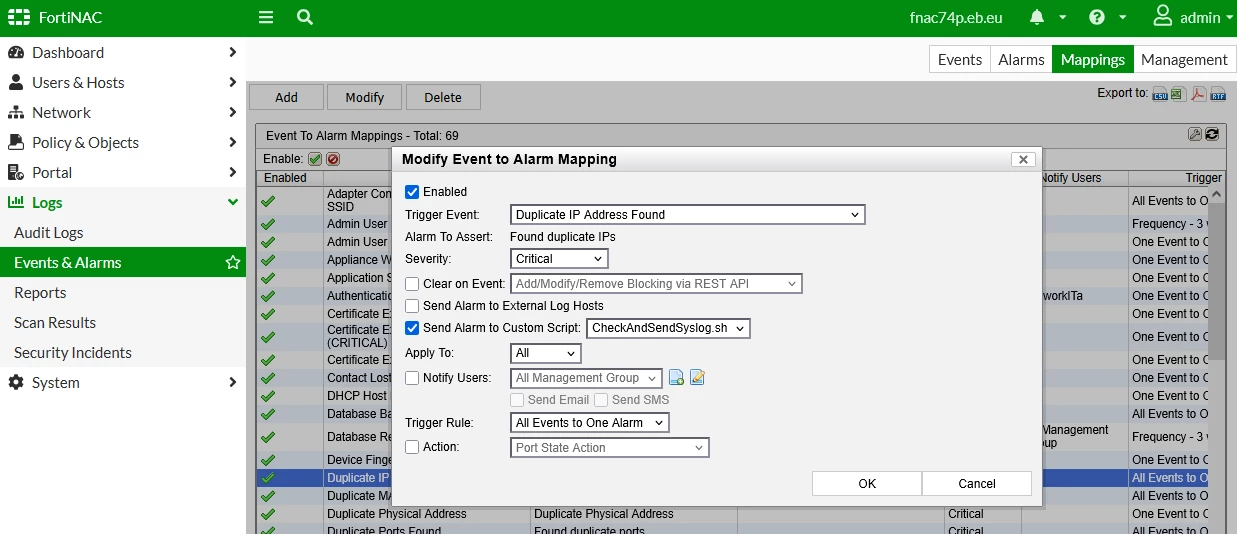

The same type of script can also be triggered through an Event to Alarm Mapping to customize the event content and send it to a syslog server, as follows:
