Technical Tip: Performing a manual (forced) failover on FortiNAC

  • June 9, 2026
  • 0 replies
  • 157 views

Description

This article describes how to perform a forced failover on FortiNAC from the primary node, currently Running In Control, to the secondary node with the status Running - Not In Control.

Scope

FortiNAC-F.

Solution

Triggering a failover on FortiNAC can be performed to validate that the High Availability (HA) functionality is operating correctly or to meet additional business requirements. This can be achieved using one of the following scenarios:

Scenario 1 – Network Loss:

Disconnect the port1 Interface on the primary server or administratively shut down the switch port connected to the primary node.


Scenario 2 – Management processes down:

Trigger the failover through the CLI by stopping the management processes on the primary node (recommended method).

Verify the node currently In Control either from the GUI or CLI:

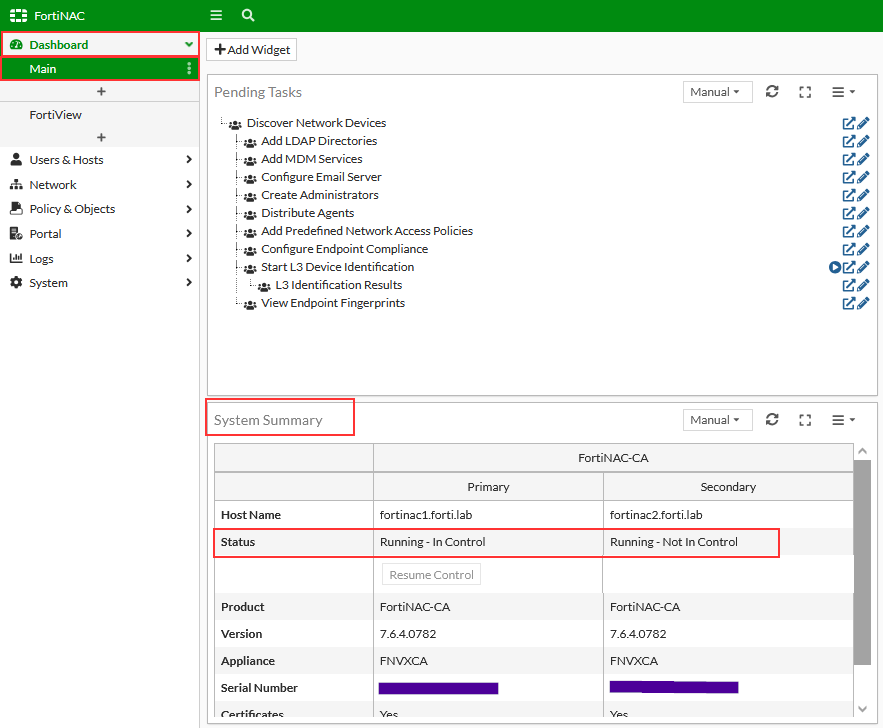

  • GUI: Log in to the Administration UI and navigate to the Dashboard -> Main -> System Summary widget panel:




  • In the CLI: Run the following command:


get system ha status


Example output:

get system ha status
HA Type: Primary
Primary Server: 10.10.10.239 (Active)
Secondary Server: 10.10.10.232
NAC Type: Network Control Application Server
Shared IP: 10.10.10.253
Shared Mask: 18
Shared Hostname: fnac


Run the following command on the primary node CLI to trigger the failover:

execute ha failover


Example output:

execute ha failover
This operation will force a failover to the secondary server of this HA pair
Would you like to continue? (y/N) y
Completed forcing failover


Validate the node currently In Control either from the GUI or CLI:

  • GUI:

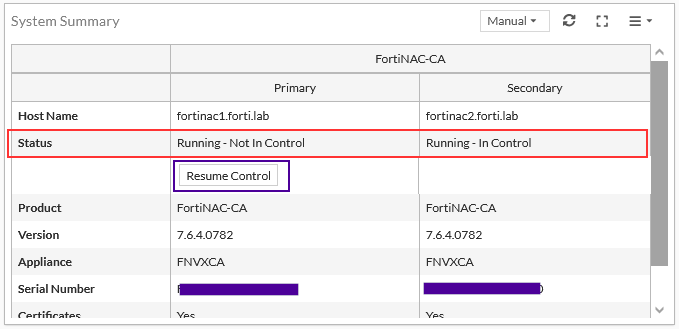

    The Summary panel displays the Primary Server status as Running - Not In Control and the Secondary Server status as Running - In Control. In this state, the Resume Control button becomes available under the Primary node.


Log in to the Administration UI and navigate to Dashboard -> Main -> System Summary's widget panel:




  • In the CLI: Run the following command:


get system ha status


Example output:

get system ha status
HA Type: Primary
Primary Server: 10.10.10.239
Secondary Server: 10.10.10.232 (Active)
NAC Type: Network Control Application Server
Shared IP: 10.10.10.253
Shared Mask: 18
Shared Hostname: fnac


Control can be resumed either through the Admin UI or CLI.

To Resume Control to the primary node via the GUI:

  • Log in to the Admin UI.

  • Navigate to the Dashboard -> Main -> System Summary's widget panel.

  • Select the Resume Control button under the primary server currently not in control.




To Resume Control via the CLI, run the following command on the Primary node CLI:

execute enter-shell
$ sudo hsRestartCMMaster


Example output:

execute enter-shell
fortinac1:~$ sudo hsRestartCMMaster
Recovery started using 10.5.139.232 as the source
DB synchronization is up to date
sending incremental file list
deleting bsc/backups/database/FortiNAC_DataBase_BackUp_2026_03_11_00_01_51_forti                                                                                                                                                             nac1.gz
bsc/backups/database/
bsc/campusMgr/.keystorePrimary
bsc/www/portal/registration/site/css/
bsc/www/portal/registration/site/css/customRulesMobile_Portal.css
bsc/www/portal/registration/site/css/customRulesMobile_RegistrationPortal.css
bsc/www/portal/registration/site/css/customRulesMobile_RestrictedPortal.css
bsc/www/portal/registration/site/css/customRules_Portal.css
bsc/www/portal/registration/site/css/customRules_RegistrationPortal.css
bsc/www/portal/registration/site/css/customRules_RestrictedPortal.css
bsc/www/portal/registration/site/css/customSkin_Portal.css
bsc/www/portal/registration/site/css/customSkin_RegistrationPortal.css
bsc/www/portal/registration/site/css/customSkin_RestrictedPortal.css

sent 41,270 bytes  received 2,634 bytes  29,269.33 bytes/sec
total size is 338,401,899  speedup is 7,707.77
2026-06-09 16:05:00.538 +0200 [ForkJoinPool.commonPool-worker-5] INFO  ActiveAct                                                                                                                                                             iveStandbyServiceGRPCClient - forceUpdateCampusManagerStatus successfully update                                                                                                                                                             d 10.5.139.232 to status 1
2026-06-09 16:05:03.036 +0200 [ForkJoinPool.commonPool-worker-3] INFO  ActiveAct                                                                                                                                                             iveStandbyServiceGRPCClient - forceUpdateCampusManagerStatus successfully update                                                                                                                                                             d 127.0.0.1 to status 1
forceUpdateStatus finished update local and 10.5.139.232 status to 1
Set status to Primary in control on both servers
arping 10.5.139.239 interface port1
arping 10.5.139.253 interface port1
arping 10.22.11.232 interface port2
winbind already installed
Failed checking/installing winbind
Sufficient freeradius installed
Clobbering logrotate.d/radiusd
Enabling modules
Updating Permissions
chmod: cannot access '/var/log/radius/*.log*': No such file or directory

Important note: Before performing a failover, ensure that a Database backup (see Overview) is available outside of the appliance and that a VM backup or snapshot has been created in virtual machine environments.

Contact Fortinet Support (Welcome to Fortinet Support) if assistance is required.
